Product Details:
Payment & Shipping Terms:
|
| Material: | SUS304 Stainless Steel | Controller: | LED Touchscreen 7 Inch |
|---|---|---|---|
| Humidity Uniformity: | ±3.0% Or ±5.0% | Humidity Range: | 10~98% |
| Temperature Range: | -70 °C To 150/180 °C | Volume: | 150L |
| Usage: | Auto Testing Machine | Temp. Uniformity: | ±2.0ºC |
| Humidity Constancy: | ±2.5％R.H | Ambient Temp.: | +5°C ～+35°C |
| High Light: | environmental test cabinet,environmental testing chamber |
||

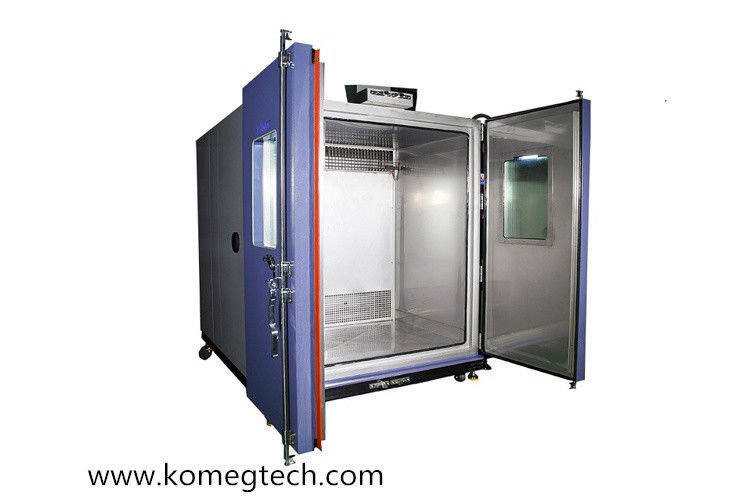

Digital Temperature Humidity Walk In Environmental Chamber With Cooling Fan
Product Application
Simulation environmental controlled walk-in stability chamber by means of science and technology is to simulate the natural environment and climate, damaging caused by modern industrial. Environmental testing of the test site can have a wide representation, can be as much as possible pilot projects, and should be possible with future combat environment as close as possible. However, there are often differences in environmental testing ground and the real use of the environment.
Environmental test chamber Standard
GJB150.3 high-temperature testing
GJB150.4 low-temperature testing
GJB150.9 humid testing
GB11158 Technical conditions for high-temperature testing box
GB10589-89 Technical conditions for low-temperature testing box
GB10592-89 Technical conditions for high and low temperature testing box
B/T10586-89 technical conditions for humidity testing chamber
GB/T2423.1-2001 Low-temperature testing methods
GB/T2423.2-2001 High-temperature testing methods
B/T2423.3-93 Testing Method for humidity Test Chamber
GB/T2423.4-93 Alternating hot and humid testing method
GB/T2423.22-2001temperature testing method
IEC60068-2-1.1990 low-temperature testing method
IEC60068-2-2.1974 high-temperature testing method
Specifications
KMH-S series( -70°C ～150°C)
| Model | KMH-S series | |||||
| 150S | 225S | 408S | 800S | 1000S | ||
| Temp. range | -70°C ～150°C | |||||
| Interior sizel | W(mm) | 600(mm) | 700(mm) | 700(mm) | 1000(mm) | 1000(mm) |
| H(mm) | 600(mm) | 700(mm) | 750(mm) | 1000(mm) | 1000(mm) | |
| D(mm) | 460(mm) | 480(mm) | 800(mm) | 800(mm) | 1000(mm) | |
| Exterior size | W(mm) | 880(mm) | 980(mm) | 980(mm) | 1280(mm) | 1280(mm) |
| H(mm) | 1730(mm) | 1890(mm) | 1940(mm) | 2160(mm) | 2160(mm) | |
| D(mm) | 1400(mm) | 1460(mm) | 1740(mm) | 1750(mm) | 1950(mm) | |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
| Weight(KG) | 280 | 330 | 450 | 550 | 650 | |
| Humidity uniformity | ±3.0％R.H | ±5.0％R.H | ||||
| Heat up time | -70°C ～+100°C ,within 60 min | |||||
| Pull down time | +20°C ～-70°C , within 80 min | |||||
| Humidity Range | 20～98％R.H | |||||
| Temp. constancy | ±0.5ºC | |||||
| Humidity constancy | ±2.5％R.H | |||||
| Temp. uniformity | ±2.0ºC | |||||
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
| Ambient Temp. | +5°C ～+35°C | |||||
| Wiring method | AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Controller | LCD Touch Screen, Chinese or English display selectable | |||||
| Operation model :Program or fix point running | ||||||
| Memory capacity :120programs,1200steps, | ||||||
| All repeat 999 cycles, part repeat 99 cycles | ||||||
1. Large system capacity: 120 patterns*1200 steps, circulation Setting: Max. 9999 cycles, PID+SSR/SCR controller. Curves drawing, safety device
2. RS-232&RS-485 communication interface.
3. CE certification
4. 7" LCD Touch screen controller
5. SUS#304 stainless steel plate inner chamber, stainless steel plate with Powder coated exterior chamber.
6. France imported Tecumseh compressor, environmental-friendly refrigerant (R404A, R23)
7. PU& fiberglass wool insulation is to make the temperature stable.
8. Large glass observation window with lamp, users can see the sample test effects directly.
9. Using more powerful wing-blower air supply to make the temperature and humidity evenly distributed in the test area.
10. Best after sales service: One year free parts maintenance.
Related Products
We are also manufacturing:
Programmable Temperature & humidity testing Chamber, Triple layer Type Temperature & humidity Chamber, Temperature & humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk In environmentalTesting Room, Temperature & humidity & Vibration Combined Testing Chamber, Aging Oven Tester, Rain/Spray Testing Chamber, Burn-in testing equipment, Dust Tester, Steam Aging Tester, Dispensing Robots, Electromagnetic High Frequency Vibration Tester, Tensile Tester, Drop Tester, Precision Oven
FAQ
Q1: What is your Warranty service for the KOMEG machine/chamber?
A1: we offer 1 years warranty service. If any quality problems on our side occured in this period ,we will send you replacement and cover the cost of shipping and component parts.
Q2: What's your period and terms of delivery?
A2: Usually, it takes us 20 - 25 days after order confirmation to produce the equipment and a little bit longer for customization service. While if you are in urgent need, we can make special arrangement to speed up the proceedings. Then we start the shipped by sea, by air freight or by air express.
Q3: What’s your terms of payment?
A3: T/T, L/C and other payment terms are all acceptable.
Q4: Is it ok for customization service?
A4: Yes, inner chamber size, structure, color, other special parameters can be all customized as per your own specific request.
