2-Zone Thermal Shock Resistance Test Chamber for Environment Stress Screen Test

2-Zone Thermal Shock Resistance Test Chamber for Environment Stress Screen Test
2-Zone Thermal Shock Resistance Test Chamber for Environment Stress Screen Test 2-Zone Thermal Shock Resistance Test Chamber for Environment Stress Screen Test

Large Image :  2-Zone Thermal Shock Resistance Test Chamber for Environment Stress Screen Test

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: KOMEG
Certification: CE/ISO
Model Number: TST-70D
Payment & Shipping Terms:
Minimum Order Quantity: ONE SET
Price: 20000USD~50000USD
Packaging Details: The normal package is the wooden box.(Size:W*H*D)
Delivery Time: 30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 set per month
Detailed Product Description
Inner Size: W400 Mm*H400 Mm*D400 Mm Controller: LED Touch Screen
Working Volume: 64L Outer Size: W860 Mm*H2070 Mm*D2000mm
Compressor: Copeland Compressor Or Compressor Wiring Method: AC 380±10% 50Hz ,3 Phase 4 Wires +Ground Wires
Test Conditions: Equipment Cooling Method: Air-cooled Impact Temperature Range: Low Temperature Section -40℃~0℃,High Temperature Section +60℃~+150℃
Temperature Uniformity: ≦±2.0℃ Temperature Deviation: ≤±2.0℃
High Light:

thermal shock chamber

,

environmental testing chambers



2-Zone Thermal Shock Resistance Test Chamber for Environment Stress Screen Test





Product description :





Thermal shock test chamber is applied for electrical and electronic components, automation components, communication components, auto parts, metals, chemical materials and plastics industries, defense, aerospace, military industry, BGA, PCB base plate, electronic chip, IC, semiconductor ceramic and high-Changes in the physical sacrifice of molecular materials, test the material on the high and low tension and products arrived repeated thermal expansion and contraction of output in the chemical changes or physical injury, to confirm the quality of products,from the precision of the IC component to heavy machinery , And both need it the ideal test tool.





Application:



This equipment is suitable for electrical, electronic, mechanical and other products, parts, materials, etc. for low temperature cold test, high and low temperature test and other products to withstand the rapid temperature change, the temperature impact test can test the sample once or several times due to temperature sharp The impact of change.




Specifications:





Model TAT-64A
64L chamber volume
Temp. range -40°C ~150°C
Impact transition time ≤ 5 min(Or temperature recovery time)
Conversion time ≤ 10 sec
Temperature uniformity ±2.0°C
Temperature shock performance

High-temperature exposure +150℃,30min

Temperature shock performance

Low-temperature exposure -40℃,5min (with load,no heat)

Interior Dimension(mm) W400 mm*H400 mm*D400 mm
Exterior Dimension(mm)

W860 mm*H2070 mm*D2000mm(Not including the protruding part)

Interior material Stainless Steel Plate ( SUS 304)
Exterior material Baked Painting Steel Or Stainless steel ( SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Total power 12KW
Max current 28A
Ambient Temp. +5°C ~+35°C
Power Supply AC 380V±10% 50Hz, 3 phase 4 wires +Ground Wires
Weight 420KG
Door

Full-size single door, open on the left, effortless to open the door handle

Two silicone rubber sealing strips and anti-condensation electric heating device are arranged to prevent external dew condensation;
Sample holder 2 pcs
Fittings cable port(portΦ50mm)*1, chamber lamp*1, power cable *2m
Safety device (standard) No fuse breaker, overpressure, over heat&over current protect, over temp.
protect, overload protect for the blower, dry heat protect
Control System

KOMEG 7 inch color touch screen intelligent fuzzy controller

*Operating system: KOMEG KM-5188 cold punching system cold output version

Refrigeration system Air Cooled (Water Cooled is an option)
Hermetic compressor
Single-stage refrigeration system,
CFC-Free refrigerant(HFC-507/HFC-23)
Controller 7-inch LCD Touch Screen panel
Operation model: Program or fixpoint running

Program capacity that can be used: up to 20 groups;

Time setting: 99 hours and 59 minutes per paragraph;

Commands can be executed repeatedly: up to 999 cycles per command.

Note:

1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available







Features:



The 2-zone thermal shock test chamber has a hot and cold zone. The specimen transfer directly between hot and cold zone to achieve rapid product temperature change for thermal shock, also known as Environment Stress Screen test. Thermal Shock Test Chamber is widely used as the lab test and product manufacturer to test their product qualification and reliability. ( suitable for small and light sample)





Standards Implemented and met :



GB-2423.1-2008(IEC68-2-1) Test A: Low Temperature Test

GB-2423.2-2008(IEC68-2-2) Test B: High Temperature Test

GJBl50.3-2009(MIL-STD-810D) High Temperature Test

GJBl50.4-2009(MIL-STD-810D) Low Temperature Test

GJBl50.5-2009 Temperature shock test method





Standard configuration :



●Stainless steel exterior



●Energy-efficient refrigeration with exclusive electronic expansion valve system



●Specialized humidity generation and control



●Unique thermal break construction for extreme testing



●Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m


●No fuse breaker, over pressure,over heat and over current protection for compressor, Over temperature protection, over load protect of blower, dry heat protection





Optional accessories :



●Cable Port: Φ100mm cable port is available


●Shelves


●Ro-type water purifier: R-80/day
Provide to keep the humidifying heater and wet bulb wick free from scale.


●Inner glass door with operation port
A glass door can be provided behind the main door so that specimens can be observed. Two operation ports of 130mm diameter are used for handing specimens inside the chamber without opening the glass door.


●Dehumidifier
The rotation regenerating dehumidifier M-120 ensures precise control of low humidity (5℃ 5%RH) for electrostatic reliability tests.


●Temperature and humidity recorder
Temperature 1 pen and humidity 1 pen.
Temperature 3 dots and humidity 1 dot.
Temperature 6 dots and humidity 6 dots.


●Defrosting circuit
The chamber automatically detects and melts the frost on the evaporator when operating below 0℃.


●Liquid or infection
In order to rapidly decrease the temperature inside the chamber, a cylinder of liquid can be connected to the chamber





F. The energy-saving operation, the KM-5188 controller uses advanced control of an electronic expansion valve to save energy and improve control of the refrigeration system. Improvements in refrigeration and heater operation make the new generation of KOMEG environmental test chambers the most energy efficient ever.





Minimum Order Qty: 1 unit
Price: Negotiable
Payment Terms: T/T, negotiable
Warranty 12 months on parts (excluding the damages caused by natural disasters, abnormal power, improper operation, and maintenance, etc)
Delivery Time: 60 working days after received a 50% deposit
Packaging Details: Packed in carton firstly, and then reinforced with plywood case for outer packing





Our Services





1, Pre-sales service



Before the purchase, our company will provide customers with detailed product-related information, and welcome you to visit the company and check the goods.



2, After-sales service



After the completion of the transaction, our company will be arranged different after-sales service according to the ease of the goods, and even arrange work engineers on-site service.



3, the Warranty period



Our product warranty is 12 months and we are committed to responding within 48 hours of the problem, providing a solution.

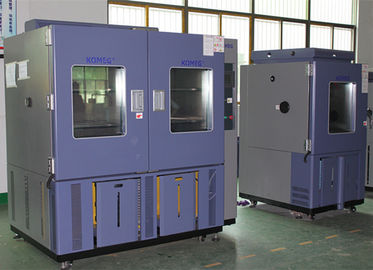

2-Zone Thermal Shock Resistance Test Chamber for Environment Stress Screen Test 0

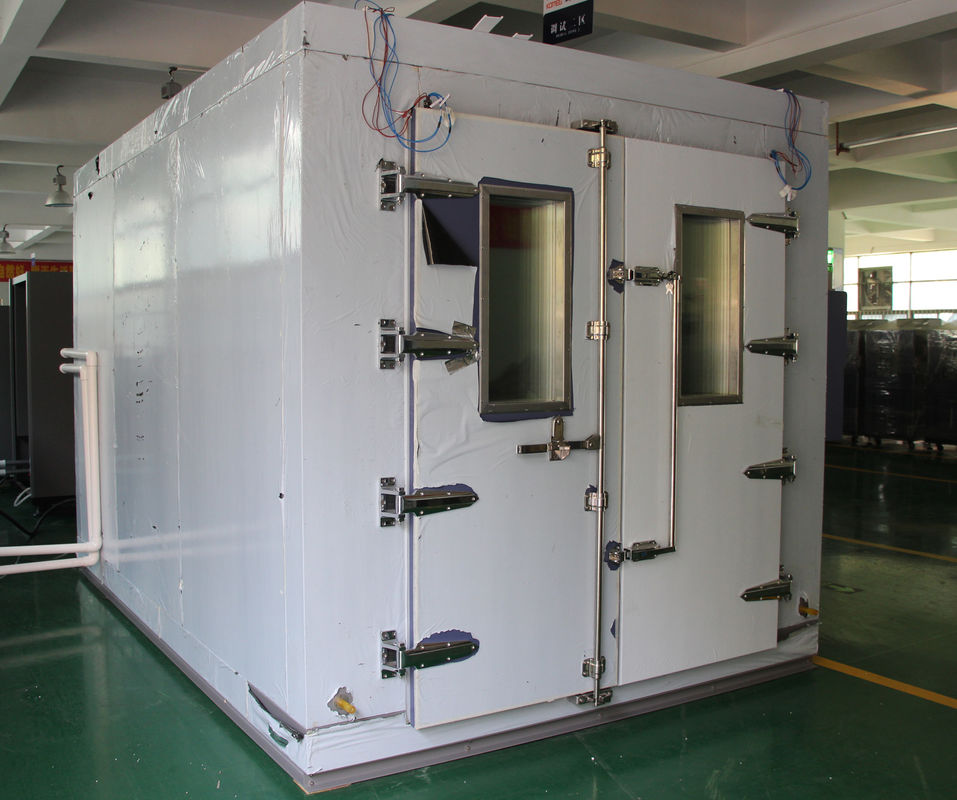

2-Zone Thermal Shock Resistance Test Chamber for Environment Stress Screen Test 1
