Product Details:
Payment & Shipping Terms:
|
Material: | Stainless Steel | Cooling Mode: | Water Cooled |
---|---|---|---|
Performance: | -70℃~+100℃ | Temp Rate Of Change( ℃/Min): | 10 |
Standard: | Internationally Accepted | Working Chamber Volume(L): | 225 |
Power: | AC 380V/50Hz 3phase 5 Wires+ Ground Wire | Warranty: | Free Parts Warranty For 12 Months |
Controller: | LCD Touch Screen Controller | Customization: | Available |
High Light: | Environmental Stress Screening Chambers,environmental testing chambers |

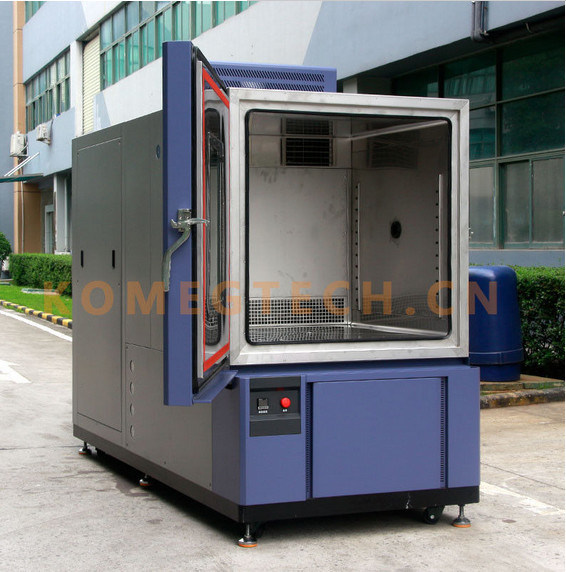

High-Performance ESS Chamber Rapid Temperature Change Climatic Test Chamber
Applications :
This series of temperature and humidity test chamber fit for liability testings for industrial products with high accuracy and a wide range of temperature and humidity control. Performance of this device is fit for the requirement of GB5170.2.3.5.6-95, “standard requirements of environmental testing equipment and test methods for the basic parameters of electric and electronic products under the condition of humidity, low temperature, high temperature, and constant heat”
Specifications:
1. We are manufacturer, offer a reasonable price.
2. LCD touch screen controller.
3. With USB and RS-232 interface.
4. Free parts warranty for 12 months.
Specifications | Note: 1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available |
||||||||||||
Model | ESS-SL | ESS-LL | |||||||||||
225 SL5 |
225 SL10 |
408 SL5 |
408 SL10 |
1000 SL5 |
1000 SL10 |
1000S L15 |
225 LL5 |
225LL10 | 408 LL5 |
408 LL10 |
1000LL5 | 1000LL10 | |
Working Chamber Volume(L) | 225 | 408 | 1000 | 225 | 408 | 1000 | |||||||
Temp Rate of Change( ℃/Min) | 5 | 10 | 5 | 10 | 5 | 10 | 15 | 5 | 10 | 5 | 10 | 5 | 10 |
Performance | -70℃~+100℃ | -70℃~+ 100℃ |
|||||||||||
Rapid Temp Change -55℃~+85℃ Full Linear Control |
Rapid Temp Change - 40℃~+85℃ Full Linear Control |
||||||||||||
Humidity Constancy | ±0.5℃ | ||||||||||||
Temp Constancy | ±3.0℃ | ||||||||||||
Exterior Material | Cold-rolled steel sheet (Rustproof & Plastic Spray treated )/ Stainless Steel |
||||||||||||
Interior Material | Stainless Steel Plate(SUS 304) | ||||||||||||
Insulation Material | Rigid Polyurethane Foam | ||||||||||||
Safety Devices | overpressure,overheat and over current protection for compressor, over temp. protection, |
||||||||||||
Compressor | Semi-Hermetic Compressor | ||||||||||||
Cooling Mode | Water Cooled | ||||||||||||
Control system | Balanced Temperature & Humidity Control System(BTC type) | ||||||||||||
Heater | Iron-chrome wire heater | ||||||||||||
Blower | Centrifugal Blower | ||||||||||||
Observation Window | Glass incorporating heat generator | ||||||||||||
Temp Sensor | Pt-100 | ||||||||||||
Controller | Touch screen programmable controller | ||||||||||||
Ambient Temp. | +5℃~+35℃ | ||||||||||||
Power | AC 380V/50Hz 3phase 5 wires+ ground wire | ||||||||||||
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
Packing Details:
We use PP Film wrapping the test chamber to protect the test chamber from moisture or being scratched first, then use strong plywood case for easy load and transport, and to keep the chambers from potential crash or impact.
Features:
1. Automatic adding water function, and automatic filling water upon the water short storage while testing.
2. Automatic operation to test process finished, easy to use.
3.Temperature control: LED digital temperature controller can make accurate testing of temperature setting, control, and display.
4. LED digital timer, when the inner box's temperature reached the setting value, then start to time to ensure the test complete.
5. Accurate pressure: temperature chart always shows the inner box's pressure and relative humidity.
6. Water device is automatically discharged not saturated steam in order to achieve the best steam quality.
7. An integrated silica gel door gasket, air tightness is very good, and long operation life.
8. The inner box is mirror-polished, graceful and non-pollution.
After-sale Service:
If you face any problems in future during the testing process we promise we will give you a reply within 48 hours and the solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
