|Material:||SUS304 Stainless Steel||Controller:||LED Touchscreen 7 Inch|
|Humidity Uniformity:||±3.0% Or ±5.0%||Humidity Range:||10~98%|
|Temperature Range:||-70 °C To 150/180 °C||Volume:||150L|
|Usage:||Auto Testing Machine||Temp. Uniformity:||±2.0ºC|
|Humidity Constancy:||±2.5％R.H||Ambient Temp.:||+5°C ～+35°C|
environmental test cabinet,
environmental test equipment

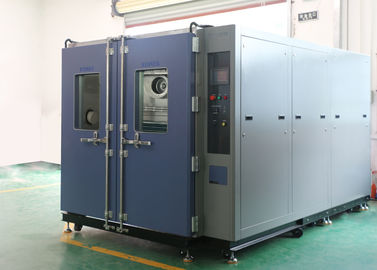

Programmable High-low Temperature and Humidity Large Environmental Test Chamber
High-low Temperature Humidity Large Environmental Chamber by means of science and technology is to simulate the natural environment and climate, damaging caused by modern industrial. Environmental testing of the test site can have a wide representation, can be as much as possible pilot projects, and should be possible with future combat environment as close as possible. However, there are often differences in environmental testing ground and the real use of the environment.
Environmental test chamber Standard
GJB150.3 high-temperature testing
GJB150.4 low-temperature testing
GJB150.9 humid testing
GB11158 Technical conditions for high-temperature testing box
GB10589-89 Technical conditions for low-temperature testing box
GB10592-89 Technical conditions for high and low temperature testing box
B/T10586-89 technical conditions for humidity testing chamber
GB/T2423.1-2001 Low-temperature testing methods
GB/T2423.2-2001 High-temperature testing methods
B/T2423.3-93 Testing Method for humidity Test Chamber
GB/T2423.4-93 Alternating hot and humid testing method
GB/T2423.22-2001temperature testing method
IEC60068-2-1.1990 low-temperature testing method
IEC60068-2-2.1974 high-temperature testing method
KMH-S series( -70°C ～150°C)
|Temp. range||-70°C ～150°C|
|Heat up time||-70°C ～+100°C ,within 60 min|
|Pull down time||+20°C ～-70°C , within 80 min|
|Safety device (standard)||NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection|
|Interior material||Stainless Steel Plate(SUS 304)|
|Exterior material||Baked Painting Steel Or Stainless steel(SUS304)|
|Insulation material||Rigid polyurethane Foam and Glass Fiber Wool|
|Ambient Temp.||+5°C ～+35°C|
|Wiring method||AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires|
|Controller||LCD Touch Screen, Chinese or English display selectable|
|Operation model :Program or fix point running|
|Memory capacity :120programs,1200steps,|
|All repeat 999 cycles, part repeat 99 cycles|
1. Large system capacity: 120 patterns*1200 steps, circulation Setting: Max. 9999 cycles, PID+SSR/SCR controller. Curves drawing, safety device
2. RS-232&RS-485 communication interface.
3. CE certification
4. 7" LCD Touch screen controller
5. SUS#304 stainless steel plate inner chamber, stainless steel plate with Powder coated exterior chamber.
6. France imported Tecumseh compressor, environmental-friendly refrigerant (R404A, R23)
7. PU& fiberglass wool insulation is to make the temperature stable.
8. Large glass observation window with lamp, users can see the sample test effects directly.
9. Using more powerful wing-blower air supply to make the temperature and humidity evenly distributed in the test area.
10. Best after sales service: One year free parts maintenance.
