|Material:||Stainless Steel||Cooling Mode:||Water Cooled|
|Performance:||-70℃～+100℃||Temp Rate Of Change( ℃/Min):||5/10/15/20℃ Per Min|
|Standard:||Internationally Accepted||Working Chamber Volume(L):||225|
|Power:||AC 380V/50Hz 3phase 5 Wires+ Ground Wire||Warranty:||Free Parts Warranty For 12 Months|
|Controller:||LCD Touch Screen Controller||Customization:||Available|

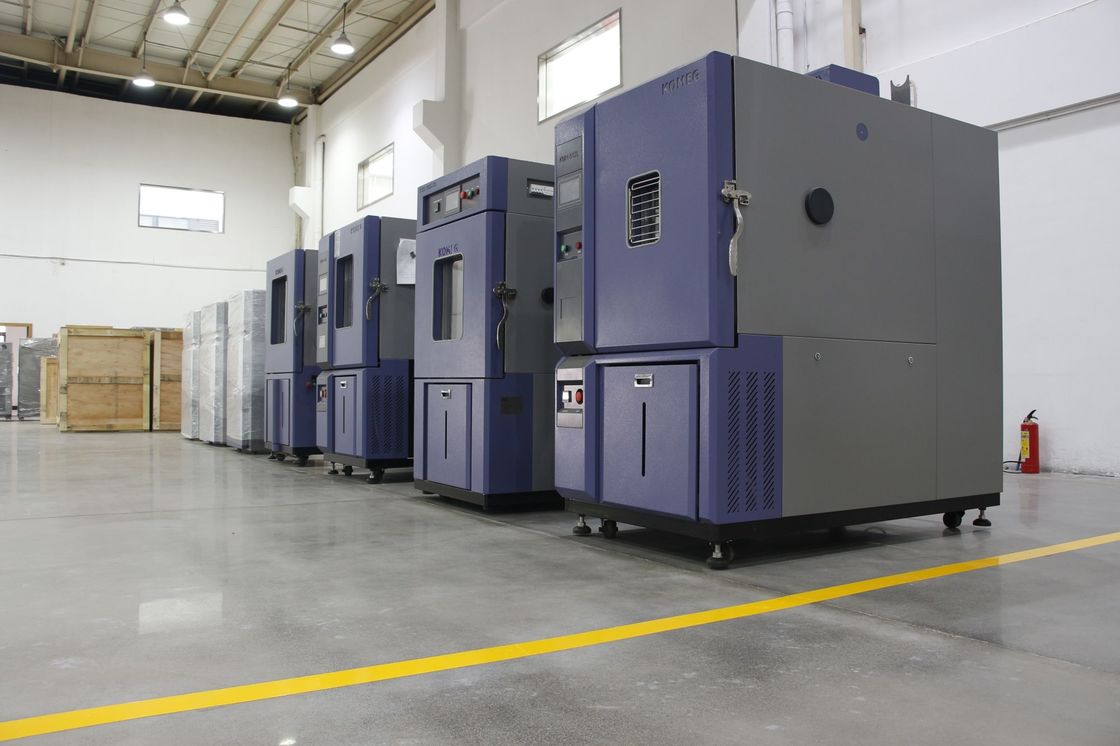

Programmable Environmental ESS Temperature Rapid Change Electronic Product Test Chamber
High and low temperature test chamber used to test the change of material under extremely
high temperature and extremely low temperature environment that continue alternation
in the shortest time,Testing the chemical changes or physical damage of material caused
by the thermal expansion and contraction. Testing box divided two parts, one is hightemperature region, another is low-temperatureregion, the testing sample placed on the
moving basket, using unique heat storage and cool storage,the cylinder taking basket
moves up and down in the hot and cold region to complete the hot and cold temperature
impact testing; applied to test the material, including metal, plastic, rubber, electronics ....and
other materials, it can be used as a basis for improvement of their products.
1. We are manufacturer, offer reasonable price.
2. LCD touch screen controller.
3. With USB and RS-232 interface.
4. Free parts warranty for 12 months.
|Specifications||Note: 1. We reserve the right to change specifications without prior notice
2.Customized sizes and configurations available
|Working Chamber Volume(L)||225||408||1000||225||408||1000|
|Temp Rate of Change( ℃/Min)||5||10||5||10||5||10||15||5||10||5||10||5||10|
|Rapid Temp Change -55℃～+85℃
Full Linear Control
Temp Change -
Full Linear Control
|Exterior Material||Cold-rolled steel sheet (Rust proof &
Plastic Spray treated )/ Stainless Steel
|Interior Material||Stainless Steel Plate(SUS 304)|
|Insulation Material||Rigid Polyurethane Foam|
|Safety Devices||over pressure,over heat and over
current protection for compressor,
over temp. protection,
|Cooling Mode||Water Cooled|
|Control system||Balanced Temperature & Humidity Control System(BTC type)|
|Heater||Iron-chrome wire heater|
|Observation Window||Glass incorporating heat generator|
|Controller||Touch screen programmable controller|
|Power||AC 380V/50Hz 3phase 5 wires+ Ground wire|
|Note: 1. We reserve the right to change specifications without prior notice 2.
Customized sizes and configurations available
We use PP Film wrapping the test chamber to protect the test chamber from moisture or being scratched first, then use strong plywood case for easyload and transport, and to keep the chambers from potential crash or impact.
1, Climatic chamber price for Programmable environmental temperature rapid change chamber , The separation of humidifier circuit from electric circuit improves safety and protects the circuit against the leakage of water supply line.
2, Programmable environmental temperature rapid change chamber with Tato controller, with Independent R &D software (7 languages) easy operation and program.
3, Able to display the relative date and information of the whole operating system in running mode, graphic display. precautions, maintenance and troubleshooting appear on the screen instantly.
4, The Sirocco fan motor provides greater cyclic airflow to avoid dead corner in the chamber so as to obtain an uniform distribution of temperature and humidity.
5, Programmable environmental temperature rapid change chamber with The system of heating up, heating down, dehumidifying, and humidifying can be operated independently so as to reduce the cost of testing, extend the operating life of the machine and decrease the failure rate.
6, Programmable environmental temperature rapid change chamber owes water Supply adopts automatic watering System, Circulating water supply together with water filter.
7, Teme. Range: -70~150/180C adjustable
8, Programmable environmental temperature rapid change chamber has been sold all over the world and well appreciated by customers
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
