|Interior Material:||Stainless Steel||Temp Range:||-20℃-150℃|
|Exterior Material:||Baked Painting Steel||Insulation Material:||Rigid Poly Foam And Glass Fiber Wool|
|Controllor:||Touch Screen Controller||Refrigeration System:||Air Cooled|

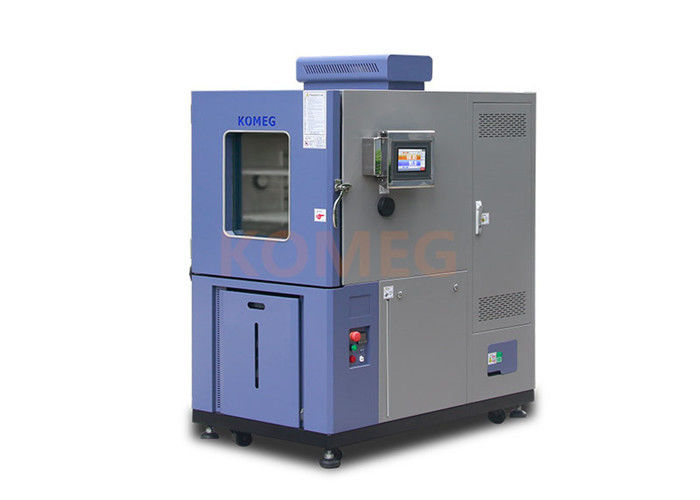

Constant Temperature and Humidity Chamber /Climatic Test Chamber For Cell Phone
ODM and OEM are welcome
1.Temperature Humidity Test chamber are widely used in testing various types of materials for their tolerances of heat, cold, dry and humidity.
2. It is applicable for quality inspection for all types of electronic products, electric appliance, and products from communication ,instruction , automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
3. Unique shape with high performance material, whether you’re testing aerospace products, electronic instrumentation, materials, electrical and electronic products and various electronic components, our High low alternating temp. humidity test chamber can give you a perfect solution.
4.It ables to simulate a wide range of temperature and humidity environments, that temperatures ranging from -70°C to +150°C,and humidity range is from 10% to 98% RH. KOMEG can also offer you best solutions based on your own requirements.
|Temperature range||-20℃ ～ +150℃|
|Heat up time||From -20℃ up to +100℃ within 35 min|
|Pull down rate||+20℃～ -20℃ within 45min|
|Door||Single door, left open. Heating wire was installed at the door frames to prevent condensation at low temperatures|
|Observation window||With observation window(Specific size based on design )electric insulation coated glass prevent condensation effectively|
|Lighting device||LED Lighting device *1 located on observation window|
Φ50mm*1 located on each side of chamber, with rubber stopper and stainless steel cover
|Compressor||German Bock /Bizr hermetic compressor|
|Refrigerant||Environmental-friendly refrigerant: R404A ,R23 comply with Environmental rules safe and non-toxic|
|Condenser||Shell and Tube condenser(Water -cooled)|
|Evaporator||Fin-type multi-stage automatic load capacity adjustment, No frost in long-term use of low temperature and humidity conditions|
|Other accessories||Use internationally-known brand, such as high precise expansion valve, oil extractor, dryer and many other accessories.|
|Refrigerant flow control||Adjust energy consumption output and control automatically to the refrigeration system.|
1.Nitrogen welding, two-stage rotary vane vacuum pump, ensure that the internal cooling system clean and reliable.
2.water tray located at the bottom of the compressor to ensure condensate water drain through pipe freely at the rear of the chamber.
|Sensor||High precision DIN class A, dry ball φ4.8mm SUS # 304 PT 100Ω|
Main material list
|press switch||Denmark DANFOSS, Saginomiya|
|Dry filter||Denmark DANFOSS|
|Expansion valve||Denmark DANFOSS|
or Nickideu /DANFOS
|AC contactor||French Schneider|
|Phase sequence relay||Carlo Gavazzi|
|Solid-state relay||Carlo Gavazzi|
KOMEG brand of temperature and humidity test chamber is the ideal simulation test chamber for all heat and cold testing between -40 ºC and 180 ºC temperature range. Well-suited for reliability testing based on current test standards in the temperature range of -40 °C to 150 °C and 10% to 98% RH.Meet all requirements for extreme testing and low temperature alternating climate profiles from -70 °C - 150 °C with humidity.
