Fast Rapid Temperature Humidity Change Rate Testing Chamber ESS Chamber For Lab
OEM & ODM Are Welcome ,kindly contact: anna@komegtech.com
Main technical specification
Air cooled, room temperature +25℃, no load
| Temperature range |
-70℃ ～ +180℃,different temperature range as per customer requirements
|
| Temp Deviation | ≦±2.0℃ |
| Temp Fluctuation | ±0.5℃ |
| Heat up rate |
From -70℃ ↑ +180℃ Average 20℃/min No load .(According to IEC60068-3 Standard
|
| Cooling rate |
From +180℃ down to -70℃ Average 20℃/min No load .(According to IEC60068-3
Standard |
| Load |
Product calorific value 1000w
|
| Door |
Single door, left open. Heating wire was installed at the door frames to prevent
condensation at low temperatures |
| Observation window |
With observation window(Specific size based on design )electric insulation coated glass
prevent condensation effectively |
| Lighting device |
LED Lighting device *1 located on observation window
|
| Heating |
High quality nickel-chromium alloy wire electric heaters,
Non-contact control mode(SSR) |
Cooling system
| Compressor |
German Bock /Bizr hermetic compressor
|
| Refrigerant |
Environmental-friendly refrigerant: R404A ,R23 comply with Environmental rules safe
and non-toxic |
| Condenser |
Shell and Tube condenser(Water -cooled)
|
| Evaporator |
Fin-type multi-stage automatic load capacity adjustment, No frost in long-term use of
low temperature and humidity conditions |
| Other accessories |
Use internationally-known brand, such as high precise expansion valve, oil extractor,
dryer and many other accessories. |
| Refrigerant flow control |
Adjust energy consumption output and control automatically to the refrigeration system . |
| Refrigeration Technology |
1.Nitrogen welding, two-stage rotary vane vacuum pump, ensure that the
internal cooling system clean and reliable.
2.water tray located at the bottom of the compressor to ensure condensate
water drain
through pipe freely at the rear of the chamber. |
| Sensor |
High precision DIN class A, dry ball φ4.8mm SUS # 304 PT 100Ω
|
Main material list
| Name |
Brand
|
| Compressor |
TECUMSEH compressor
|
| press switch |
Denmark DANFOSS, Saginomiya
|
| Condenser |
Guangzhou Yongqiang,
|
| Evaporator |
Yongqiang
|
| Dry filter |
Denmark DANFOSS
|
| Capillary tube |
KOMEG
|
| Expansion valve |
Denmark DANFOSS
|
| Magnetic valve |
SAGLNOMLYA
or Nickideu /DANFOS |
| Controller |
KOMEG
|
| AC contactor |
French Schneider
|
| Phase sequence relay |
Carlo Gavazzi
|
| Time relay |
Autonics
|
| AC relay |
Omron
|
| Solid-state relay |
Carlo Gavazzi
|
High-precision microcomputer control thermostat system, PID control, the system of heating and weight
reduction to achieve low energy consumption, energy saving, carbon reduction effect. Heating electronic
intelligent control that can be long-term stable use.
Applications
It is suitable for tests the products of electrical, electronic, mechanical and other products, parts and
materials under the conditions of high and low temperature and high temperature and humidity. For quality
and reliability test of simulating temperature and humidity changes in electrical, electronic, mechanical and
other products, parts and materials.
Features
● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test

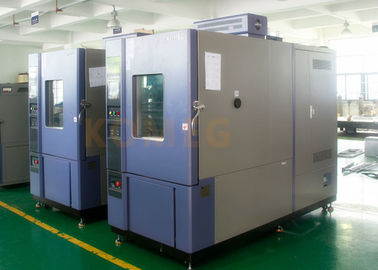

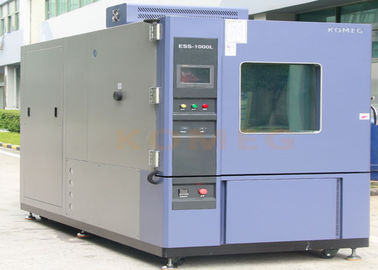

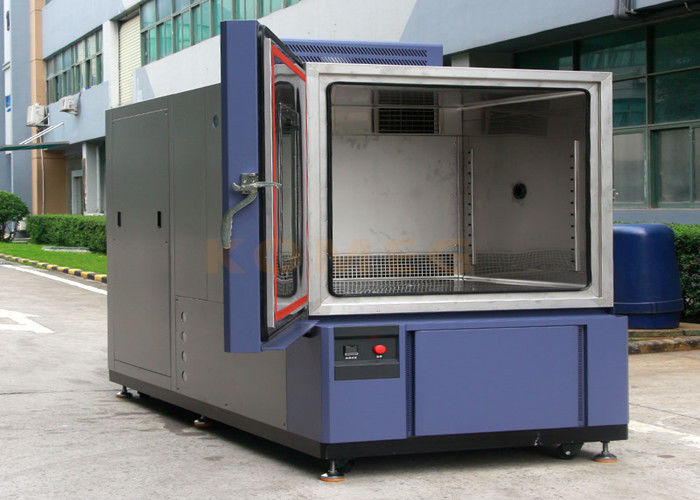

Photos show
