Product Details:
Payment & Shipping Terms:
|
| Usage: | Auto Testing Machine | Application: | Aerospace, Electronics , Aviation, Information Electrical Devices |
|---|---|---|---|
| Inner Size: | 1000*1000*1000mm | Temperature Range: | -70℃~+150℃ |
| Compressor: | Semi-Hermetic Compressor | Internal Chambe: | Stainless Steel(SUS304) |
| Warranty: | 1 Year With Lifetime Technology Support | Controller: | Touch Screen Controller |
| Cooling Mode: | Water Cooled | Temp Constancy: | ±0.5％ |
| High Light: | high altitude chamber,portable altitude chamber |
||

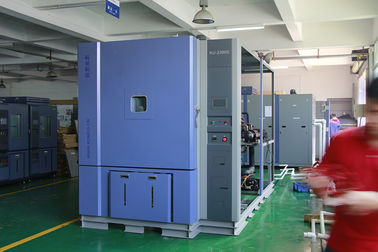

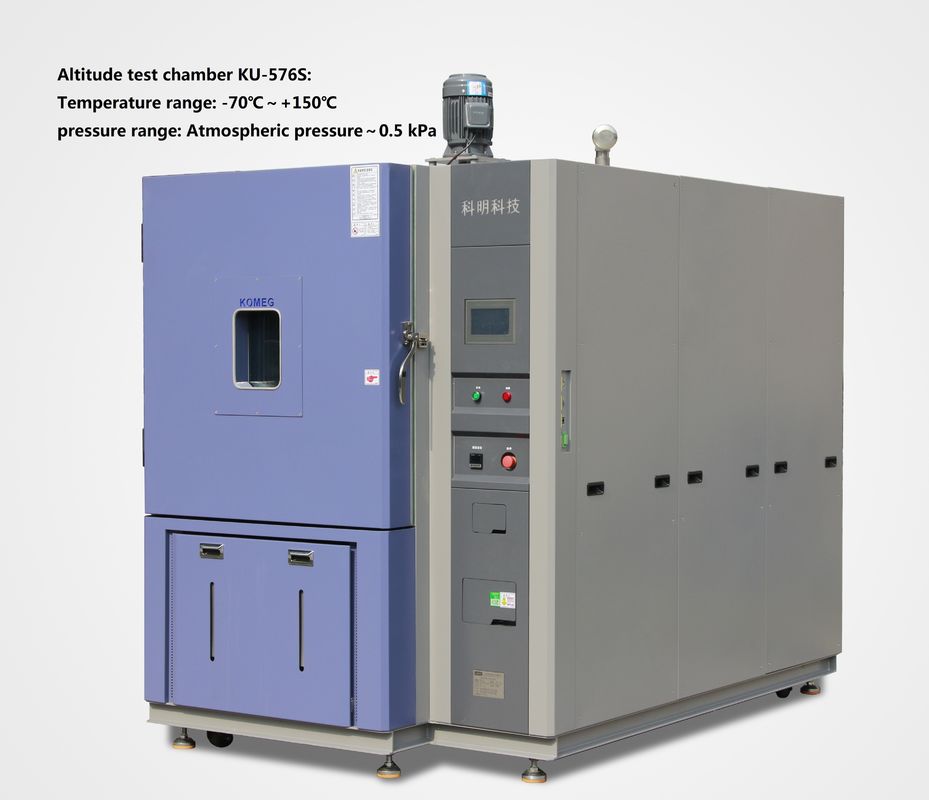

Simulate rapid pressure change Environmental Vacuum Chambers /Humidity Temperature Altitude simulation Test Chamber
Altitude Test Chambers combine temperature and altitude environments with optional humidity for simultaneous environmental testing. An Altitude Chamber allows users to control the test chamber temperature while subjecting the product under test to various levels of altitude up to 100,000 feet, with optional extended altitude range to 150,000 feet. This combination of elements allows precise simulation of real-life conditions a product might encounter at various altitude levels.
A hypobaric chamber, or altitude chamber, is a chamber used during aerospace or high terrestrial altitude research or training to simulate the effects of high altitude on the human body, especially hypoxia (low oxygen) and hypobaria (low ambient air pressure). Some chambers also control for temperature and relative humidity.
Standards Implemented and Met
B10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode
Thermostat regulator balanced manner BTPC thermostat (regulator) mode
Ambient temperature: 5 ºC ~ 35 ºC; Humidity: ≤90% RH; Atmospheric pressure: 86-106kPa
Material cold rolled steel shell, surface spray
SUS304 stainless steel inner tank
Rigid polyurethane foam insulation foam glass +
Regulator heater Nichrome heater
Fan shaft seal magnetic fluid flow fan
Refrigeration machinery contraction two binary cascade refrigeration (cooling)
Refrigeration compressor: Semi-hermetic compressors
Refrigerant: R404a / R23
Controller Display: 7 "color screen, liquid crystal display (LCD)
Run the program mode, setting mode
Setting mode Touch (piezoelectric)
Program capacity 32 programs, each up to 800 steps (segments), maximum 999 cycles
Setting range operating temperature range adjustment device according to (limit 5 ºC, the lower limit of -5 ºC)
Display Resolution time: 0.1min; temperature: 0.1 ºC; pressure: 0.1kPa
Enter thermal resistance, pressure sensors
Anti-windup PID control mode
Power: AC380 (1 ± 10%) V (50 ± 0.5) Hz three-phase four-wire protective earth
Maximum power current: (A) 35 35
| Specifications | |||||
| Model | KU-504L | KU-1000L | KU-504S | KU-1000S | |
| Inner Size (D*W*H)mm | 800*700*900 | 1000*1000*1000 | 800*700*900 | 1000*1000*1000 | |
| Capacity(KW) | 11 | 15 | 16 | 18 | |
| Chamber Volume(L) | 504 | 1000 | 504 | 1000 | |
| Performance | Temp range | -40℃～+150℃ | -70℃～+150℃ | ||
| Temp constancy | ±0.5％ | ||||
| Temp deviation | ≥100℃, ±3.0℃(at constant pressure with empty load) | ||||
| ＜100℃, ±2.0℃(at constant pressure with empty load) | |||||
| Cooling rate | 0.7℃～1.0℃/min(Overall average) | ||||
| Pressure range | Constant pressure ～1kPa | ||||
| Pressure constancy | When ≥40kPa, ±2kPa, 4kPa～40pKa ±0.5kPa, when≤4kPa, ±0.1kPa | ||||
| Depressurization rate | Constant pressure～1kPa≤30mins(Normal temp) | ||||
| Pressure recovery rate | 10kPa/Min(adjustable) | ||||
| Material | Exterior material | Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate | |||
| Interior material | Stainless steel(SUS304) | ||||
| Pressurized parts | High quality steel plate(Rust proof & Plastic spray treated) | ||||
| Insulation material | High quality glass wool | ||||
| Cooling System | Compressor | Semi-Hermetic Compressor | |||
| Cooling Mode | Water cooled | ||||
| Temp regulating method | Balanced Temperature & Humidity Control System (BTHC) | ||||
| Pump | Rotary vane type vacuum pump | ||||
| Heater | Iron-chrome wire heater | ||||
| Sight window | Circular viewing glass incorporating heat generator | ||||
| Temp Sensor | Pt-100 | ||||
| Controller | Touch Screen Controller | ||||
| Safety Devices | Over pressure, over heat and over current protection for compressor, over temp. protection, over load protection for blower, Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarm | ||||
| Standard Accessory | Sight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2 | ||||
| Power | AC380V/50Hz, 3Phase 5 wires+ Ground Wire. | ||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|||||
Safety devices
1. Power owed to reverse protection
2. No fuse switch
3. Dry compustion prevention switch
4. The water protection switch
5. Over-temperature protection
6. Motor overload protection
7. The high-pressure compressor protection
8. The overheating protection of compressor
9. The over-current protection of compressor
10. The over-current protection of vacuum pump
FEATURES
1. Temperature: -70 ~170ºC
2. Altitude: ground to 100,000 feet
3. External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
4. Adopts international brand of imported parts for cooling system to improve operation reliability
5. High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6. Multiple layers of safe device , easy for maintenance.
7. Viewing window and cable ports are available.
8. Vacuum pump sized for climb/dive rate required by application
Material:
machines for sheet metal processing;
Tecumseh, Bock Compressor;
High quality electronic components (e.g. DANFOSS, ALCO, RANCO, SPORLAN, SAGINOMIYA, Schneider solenoid valve)
Our Services:
We are here to help you. Services available:
Replacement manuals
If you have an KOMEG chamber , we will do our best to help you in whatever way we can.
Manuals: PDF files of manuals for current models are available free. Please contact us to request a copy. Older and printed copies at additional charge.
Why manufacturers need Custom Design High LowTemperature with Humidity Air Pressure Climate Altitude Test Chamber / Machine
When developing a new product or when looking to extend the life of an existing product, it is essential for manufacturers to understand the effects of Temperature Altitude Test . Lenpure combines most cost-performance solution & almost 20 years experience to produce equipment for various products and materials.
Special designed machine is different from standard model,it will meet your test requirements mostly & get more accurate & comprehensive test result.
This will help a lot in developing & researching.
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 20-35 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
