Product Details:
Payment & Shipping Terms:
|
| Usage: | Universal Testing Machine | Type: | Air-ventilatiion Testing Machine |
|---|---|---|---|
| Controller: | LCD Touch Panel Controller | Insulation: | PU&Fiberglass Wool |
| Service: | Customization | Air Change Rate: | 5 To 200 (3 To 250) Times/ Hour |
| Warranty: | 12 Months | Temp. Range: | Room Temp. +20～+100℃ |
| Power: | AC 380±10%50Hz ,3 Phase 4 Wires +Ground Wires | Interior Material: | Stainless Steel Plate(SUS 304) |
| High Light: | accelerated aging chamber,uv aging test chamber |
||

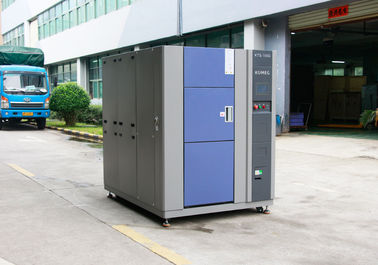

Programmable Temperature Thermal Shock Air Exchange Aging Test Chamber
Product Description
Tempareture thermal shock aging test chamber can be used in testing composite material and material structure’s result which under continuous environment with high temperature or low temperature shock in short time; it means thisproduct can test the material’s chemical change or physics change by expansion and contraction within short time. It’s application to metal, plastic, rubber, electronic etc materials and can be used for product improvement’s reference.
Application
Suitable for all kinds of electronic products,expecially for products with heating characteristics
Product and loading area should be separated
Large-scale production
Specifications
| Specifications | |
| Interior dimensions(W*H*D) mm | 1500*1280*550 |
| Exterior dimensions(W*H*D) mm | 1720*1980*750 |
| Temp. range | Room Temp. +20～+100℃ |
| Temp. constancy | ±0.5℃ |
| Temp. uniformity | ±3℃ |
| Test. capacity | 88PCS/CYCLE(Custom made available) |
| Dimension | 100W*100HJ*50D(MM) |
| Test range | FAN(full machines number) |
| Voltage range | 3～50V |
| Current range | ±5% |
| Speed | 0-15000RPM,±8% |
| The detection speed | 7-12sec/cycle |
|
Note:
1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|
Material: Exterior material is cold-roll steel sheets with rust prevention or SUS#304 Stainless steel plate; Interior material is SUS#304 Stainless steel plate, heat-insulating material is PU foam and fiberglass
1) The hot chamber
Heater: nicochrome electric heater
Ventilator: centrifugal ventilator when exposed in high temperature or environment temperature, axial flow ventilator for preheating
2)The cold chamber
Heater, cooler; nicochrome electric heater, regenerator
Ventilator: centrifugal ventilator
3) Device
Pneumatic cylinder: it can be used in each device when exposed for hot temperature, environment temperature, cold temperature
Air compressor: provide the compress air for pneumatic ventilator (option)
4)Refrigerating unit
Cooling method: cascade refrigeration system
Refrigeration compressor: semi-closed piston
Freezing medium: R23/R404 environmental friendly
Condenser: Stainless steel plate-type heat exchanger
5)Controller
Operation interface: 6” Windows-based color touch screen with English version
Program’s memory capacity: 100 group user program (adjustable)
Set index range: Time: 1min~ 99h59min, cycling: 1~999times
resolution ratio: Temperature: 0.01 °C, time 1 min
Input: T type thermocouple
Controlling method: PID control
other function: timer, over-temperature protection, sensor for choosing up & down wind, power cut protection, alarm record, test curve record, test suspend, display operation time of program
Power supply: AC380±10%V 50±0.5Hz, three-phase, four-wire+ protect earth wire
Power (k.w): 20, 21, 22
Cooling circulating water: Water pressure: 0.2~0.4MPa, water temperature: ≤30°C
Compressed air: 0.5~0.7MPa
Features
1) Perfect outlook upgrades, easy operation
2) The color touch microcomputer temperature controller was made in Japan which can display Chinese / English Vertical structure with 3 chambers, high low temperature shock cycling can be automatic control, remain and change time can be adjustable, stainless steel inner material, several record methods, it has various safety precautions and device.
3) Perfect protect alarming function: when it has condition with short circuit, work chamber over-temperature, leakage; compressor with over-pressure, over-load, oil pressure, water-break, the screen will automatic display the fault cause and provide exclusion method, and when the input voltage is unstable, due to it has the stop device that the remove time of high-low temperature shock structure within 10s.
You are warmly welcomed to KOMEG.
We hope to be your reliable business partner in China.
For our new design can achieve high temp. Unifornity (± 0.5 C ).
Tecumseh or Danfoss compressor for your alternative choice.
Germany imported wall material make sure the reliability and good performace.
Related Products
Programmable Temperature & humidity testing Chamber
Triple layer Type Temperature & humidity Chamber
Temperature & humidity Control Host
Air Thermal Shock Tester
Liquid Thermal Shock Tester
Salt Spray Tester
Walk In environmental Testing Room
Temperature & humidity & Vibration Combined Testing Chamber
Aging Oven Tester
Rain/Spray Testing Chamber
Burn-in testing equipment, Dust Tester
Steam Aging Tester, Dispensing Robots
Electromagnetic High Frequency Vibration Tester
Tensile Tester, Drop Tester, Precision Oven Tester, etc.
Q1: What is the Warranty?
Generally, 12 months warranty. But for drying oven, the warranty is 18 months. If any quality problems on our side occured in this period ,we will take on the cost of shipping and component parts.
Q2: What's the delivery term?
Usually, 20 - 25 days after order confirmation. It will be took more time for customization service. If you are in urgent need, we can make special arrangement for you. It could be shipped by sea, by air or by air express.
Q3: What’s the payment term?
Accept different kinds of payment terms, such T/T, L/C, Paypal.
Q4: Is it ok for customization service?
Of course you can. We are manufacturer of environmental test equipment. Once with your detailed requests, we could make environmental test chamber accordingly.
