| Temperature Range: | -45℃ ～ +50℃ | Control System: | Adopt Programmable Time Controller |
|---|---|---|---|
| Safety Device: | Leakage Protection, Overheat Protection | Working Power: | AC 380V±10%, 50Hz |
| Temp. Deviation: | ≤±2.0℃ | Name: | Constant Temperature Humidity Chamber |
| High Light: | walk in humidity chamber,walk in climatic chamber |
||
Product Overview
Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research institution, inspection and quarantine bureau, university etc..
● GB-2423.1-2008(IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50. 4-2009(MIL-STD-810D) Low Temperature Test
Main Technical Index (Water cooled, Water temperature +25℃, no load )
|
Temp. range |
-45℃ ～ +50℃ |
|
Temp. deviation |
≤±2.0℃ |
|
Temp. fluctuation |
±0.5℃ |
|
Temp. uniformity |
≦2.0℃ |
|
Heating and cooling rate |
Heating up rate: from -45℃ to +50℃ 45min no load Cooling down: from +20℃ to -45℃ 70min no load |
|
Energy-saving |
Bypass mode to adjust cooling capacity to achieve a constant temperature and humidity effectively Apply plate exchanger as intermediate heat exchanger to the cascade refrigerating system, ensuring high effective. |
|
Easy operation |
Using company owned brand KOMEG KM-5166 LCD touch screen controller with PID control parameters setting; Flexible approach for data collection and recording |
|

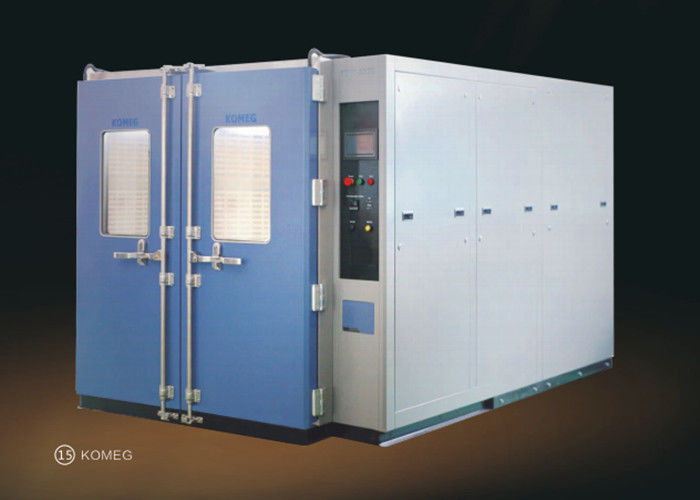

Body Structure |
Overall structure and chamber is composed of three parts as below. Insulation box, separate refrigeration units, and electrical control cabinet. |
|
Body dimensions |
Workplace volume: W 1200 × H 2200 × D 1500 mm Exterior size: approx. W 1810 × H 2640 × D 2910 mm |
|
Insulation Box |
※ wall material: high-quality carbon steel with Static color spray ※ inner wall material: SUS304 # matte stainless steel plate ※ Insulation materials: rigid polyurethane foam insulation layer + glass fiber. |
Other Techinical information
|
Door |
Double door, size: W1200*1900mm, heating wire is installed at the door frames to prevent condensation at low temperatures |
|
Inspection Window |
With inspection windows installed on the door, multi-hollow electric insulation coated glass prevent condensation effectively |
|
Lighting Device |
1 PC 11W/AS220V installed in the inspection window |
|
Heating |
High quality nickel-chromium alloy wire electric heaters, Non-contact control mode(SSR) |
|
Water outlet hole |
Available for drain the condensate water |
|
Cable port |
φ100mm*1 located on the left of chamber, with rubber stopper and stainless steel cover |
|
Mobile Casters |
Mobile Casters *4 with foot cups |
|
Electric control box |
Total power circuit breaker, over-temperature protection. |
|
Working mode |

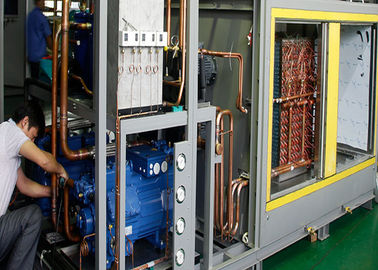

Mechanical compression refrigeration |
|
Compressor |
Germany Bock or Semi-hermetic Compressor with low noise |
1) More than 26 years manufacturer experience and 8 years export experience.
2) Acceptable customization for all kinds of special specification products.
3) We value very inquiry sent to us, ensure quick and competitive offer.
4) We put your order into our tight production schedule, ensure your punctual delivery time.
5) We are a sales team, with more than 4 years experience, more professional and reliable.
6) Welcome to view our factory at any moment.
Since 1990,we went into the environmental test chambers industry. In 1990 we established our own factory,Dongguan Komeg Technology Co., Ltd., which has become an important manu-facturer of environmental friendly test chambers.
Our main products include Temperature Humidity Test Chamber, Thermal Shock Chamber, Walk in Stability Chamber, LCM(LAD)Aging Chamber, Hot Oven, Salt Spray Tester, Steam Aging Chamber, etc.
