Product Details:
Payment & Shipping Terms:
|
| Temperature Range: | From 50 °C To 75 °C | Control System: | Adopt Programmable Time Controller |
|---|---|---|---|
| Safety Device: | Leakage Protection, Overheat Protection | Working Power: | AC 380V±10%, 50Hz |
| Temp. Deviation: | ≤±2.0℃ | Working Condition: | Temperature:15ºC~35ºC, Humidity:≤85%R.H. |
| High Light: | accelerated aging chamber,uv aging test chamber |
||

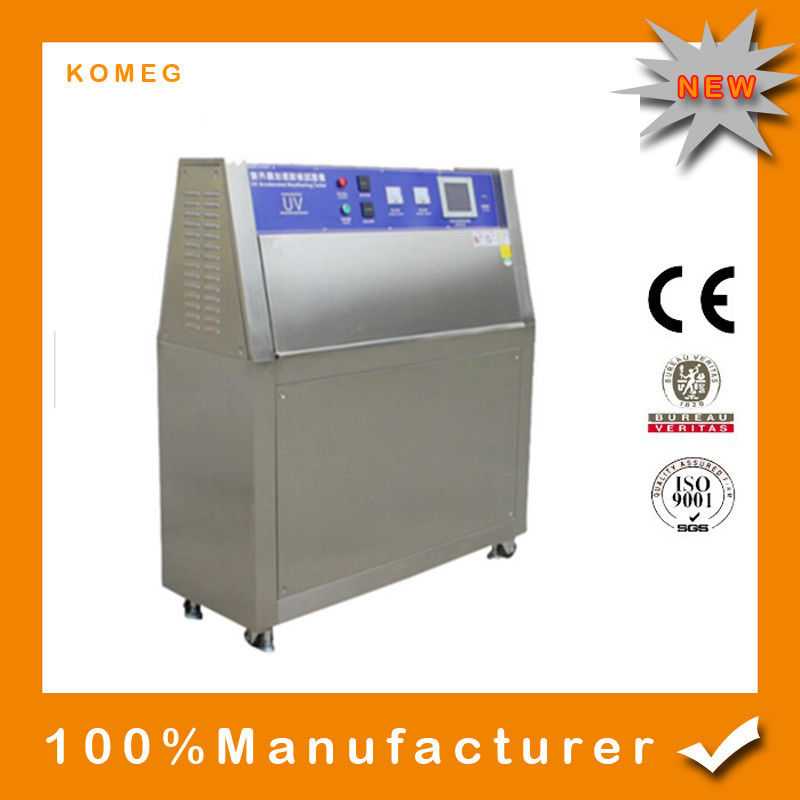

Product Overview
UV Accelerated Weathering Aging Test Chamber can provide reliable light aging test data to make the exact prediction of products' UV light ageing resistance . It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc. UV-A , UV-B or both UV-A and UV-B is available to produce in one chamber. Welcome to send the inquiry.
Accelerated weathering tester,is designed to simulate the weather mix with UV light, temperature and moisture conditions. The tests are intended to reproduce the damage caused by sunlight, rain and condensed surface moisture or dew. Types of damage include color change, gloss loss, chalking, cracking, hazing, embrittlement, and strength loss.
With programmable controller that can program the rain, UV light and temperature. With cycling control of light and moisture at controlled temperatures.
The moisture includes both condensing humidity, to simulate dew, and water sprays. The light in the chamber is created by specially-designed fluorescent UV bulbs to simulate the effects of sunlight.
Features
1. LCD Touch Screen Controller, programmable of UV, condensing moisture, temperature and water spray
2. 40W fluorescent UV lamps
3. With condensation system
4. With heater
5. With sprayers
6. Test specimens are mounted in convenient snap-right holders
Main technical specification
| Internal dimensions(mm) | 1170W×500H×450D |
External dimension(mm) | 1300W×1500H×680D |
Temperature range | RT+5~70℃ |
Temperature accuracy | ±2℃ |
Temperature fluctuation | ±0.5℃ |
Humidity range | .80%~98%RH (display in condensing temperature) |
Humidity accuracy | ±2% |
| PID control |
Other Techinical information
Black panel temperature | 30~70℃ |
Black panel temp. fluctuation | ±1℃ |
Sample frame size | 300×78mm |
Distance between specimen and lamp | 50mm±2mm |
Distance between lamp centers | 70mm |
Effective working area | 900×210mm |
UV wavelength | UV-A:315-400nm, UV-B:280-315 nm |
Lamp power | 40W |
Lamp length | 1220mm |
1) More than 26 years manufacturer experience and 8 years export experience.
2) Acceptable customization for all kinds of special specification products.
3) We value very inquiry sent to us, ensure quick and competitive offer.
4) We put your order into our tight production schedule, ensure your punctual delivery time.
5) We are a sales team, with more than 4 years experience, more professional and reliable.
6) Welcome to view our factory at any moment.
Since 1990,we went into the environmental test chambers industry. In 1990 we established our own factory,Dongguan Komeg Technology Co., Ltd., which has become an important manu-facturer of environmental friendly test chambers.
Our main products include Temperature Humidity Test Chamber, Thermal Shock Chamber, Walk in Stability Chamber, LCM(LAD)Aging Chamber, Hot Oven, Salt Spray Tester, Steam Aging Chamber, etc.
Photos show
