Product Details:
Payment & Shipping Terms:
|
| Temperature Range: | Temperature Humidity Test Chamber | Humidity Range: | 20%R.H～98%R.H |
|---|---|---|---|
| Chamber Size: | Workspace Volume: W 1000 × H 1000 × D 1000 Mm | Wall Material: | High-quality Carbon Steel With Static Color Spray |
| Evaporator: | Copper Aluminum Finned Evaporator | Frequency Range: | DC～3000 Hz |
| Max Displacement(p-p): | 51mm | Axial Vibration Isolation Frequency: | 2.5 Hz |
| Surrounding Environment: | Ensure Operating Environmental Temperature Range: 5〜35℃ | Power Supply: | AC 3ψ4W 380V 50Hz (R.S.T.N Ground Wire)( Voltage Fluctuation≦±10%) |
| High Light: | climatic test chambers,Environmental Test Chamber |
||

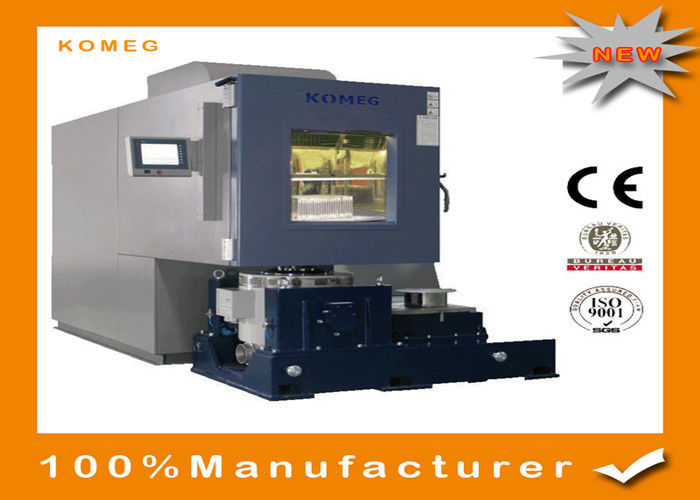

Electronic Temperature Humidity Vibration Combined Climatic Test Chamber Vibration Shaker Chamber
Product Description
Industrial-quality chambers for combination testing with vibration systems
For years KOMEG chambers have been the workhorses of the environmental test chamber industry. Originally created to meet military test standards, their flexible design has made them suitable for a wide variety of applications. Fast temperature changes of 5 to 25°C/m. are possible, even with significant loads. The chambers have a removable floor, allowing integration with vibration test systems. Custom designs are common, allowing configuration to meet your exact requirements.
Main Technical Parameters
| Temperature deviation | ≦±2.0℃ |
| Temperature fluctuation | ±0.5℃ |
| Temperature uniformity | ≦2.0℃ |
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
| Humidity fluctuation | ±2.0％RH |
| Heater | High-quality nickel-chromium alloy wire electric heater, non-contact control (SRR) |
| Compressor | BOCK Semi-hermetic compressors |
| Display Resolution | Temperature: + 0.01ºC; Humidity: + 0.1%; time: 1min |
| Cable port | Φ50mm*1 located on both sides(each*1) with a rubber stopper and plastic cover |
| Temperature change rate |
Heating rate: -70℃ to +150℃ nonlinear 5℃/min no load Cooling rate: +150℃ to - 70℃ nonlinear 2℃/min no load |
| Rated Sine Force(peak) | 20 kN |
| Max Velocity | 2.0 m/s |
| Max Acceleration | 1000m/s2 |
| Body Size( No packing)(L×W×H) | 1182mm×758mm×1052mm |
| Horizontal slide Table size (mm) | 600×600 mm |
| Use Frequency (Hz) | 2000 Hz |
| Fan power | 7.5 KW |
| Wind pressure | 3.5 Kpa |
| Humidity | 0～90% (No condensation) |
| One class resonant frequency | 2500Hz±5% |
Performance Feature
1. A Temperature Limit and alarm is included to protect your product.
2. Fog-free viewing window and interior light make viewing workspace hassle-free.
3. Humidity water filtration system to filter impurities and protect chamber interior.
4. An electronic humidity sensor is used on all humidity models for accuracy and minimal maintenance.
The chambers are suitable for testing electrical and electronic components and sensors, semiconductors, mainboards, liquid crystal displays and LED's, drug stability testing, mechanical/military/aviation engineering, automobile, transportation/automobile supporting industry, chemical/petroleum industry, structural materials/plastic/textile industry, mold, tobacco, paint testing, metal-related industries testing, etc.
How do you attach the hardware you’re testing to your shaker?
By means of a fixture, usually aluminum or magnesium for lightness coupled with rigidity. They can be cast, or smaller fixtures machined from solid stock. Most fixtures are welded.
How do you control shakers?
If we’re looking for resonances in the product we’re testing, we command the shaker to shake the product at one frequency at a time but to vary that test frequency, to sweep it over a range of frequencies. But more realistically, we command the shaker to vibrate randomly and to excite all the resonances simultaneously. Control commands go into the keyboard of a specially-programmed computer.
What are those resonances? Are they bad?
Have you ever noticed the steering wheel moving with a rather large displacement amplitude, larger than the input to the column? That magnification is called resonance. Possibly it annoys you. There’s a slight chance that in a few years that whipping of the steering column might cause bending fatigue failure. When we shake an automotive or ship or land vehicle instrument, we're looking for, for example, portions of printed wiring boards (PWBs) responding with greater motion than we're inputting. That flexing may damage PWB wiring, it may damage the attached components, and it will damage the soldered connections between components and the PWB.
Pre-sales service
1) More than 25 years of manufacturer experience and 8 years of export experience.
2) Acceptable customization for all kinds of special specification products.
3) We value every inquiry sent to us, ensure quick and competitive offer.
4) We put your order into our tight production schedule, ensure your punctual delivery time.
5) We are a sales team, with more than 4 years of experience, more professional and reliable.
6) Welcome to view our factory at any moment.
After-sales service
1) We deal with your complaints within 24 hours.
2) Training how to install the machine, training how to use the machine.
3) Engineers available to service machinery overseas.
4) All staff in our company with a philosophy of " integrity, dedication, truth-seeking, enterprise", would be dedicated to providing high-quality service and products for you.
FAQ
Q: What's the delivery term?
A: It depends on the machine's dimensions and weight, also according to the customer's requirement. It could be shipped by sea, by air or by air express. Usually, the delivery time is about 15-20 working days after receipt of down payment. If you are in urgent need, we can make a special arrangement for you.
Q: What’s the payment term?
A: T/T, L/C, and other payment terms could be negotiated.
Q: What's the warranty and after-sales service?
A: We provide free parts warranty for 12 months. Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory.
Q: Do you accept customization service?
A: Yes, the inner chamber dimensions can be customized as per your specific request.
