Product Details:
Payment & Shipping Terms:
|
| Product Name: | Walk-In Modular Test Chamber | Type: | Solid Or Panel Configuration |
|---|---|---|---|
| Volume(M3): | 16.8CBM | H.S. Code: | 90321000 |
| Delivery: | 42 Working Days | ||
| High Light: | walk in environmental chamber,walk in climatic chamber |
||
Walk-In Modular Test Chamber / Temperature Cycling Chamber / Environmental Testing Chamber
KOMEG manufactures and provides solar panel testing chambers for testing various size PV modules. Environmental testing chambers for PV module designed to meet solar panel test specifications for IEC, UL and ASTM for temperature cycling test, damp heat test and humidity freeze tests. PV module meet standard of IEC61215, IEC61646, IEC61108, IEC62688, UL1703. Test chambers are available in a variety of sizes for many types of solar panels.
1. All Walk-in Room Systems
a. Operate continuously in cooling mode.
b. Provide a hot gas by-pass system to automate capacity reduction when the room is at the set point temperature.
c. Are constructed with high quality components including: liquid line solenoids, liquid sight glass, dryers, strainers, and TX valves.
d. Contain Bock semihermetic (or equal ) compressors.
e. Contain LED Touchscreen (or equal) controls.
f. Comply with ASHRAE guidelines for piping and rating.
g. Are factory-assembled and tested.
h. Are simple to maintain because components are easily accessible and clearly labeled.
Up to 5 HP units can be mounted on the roof of the walk-in room. Larger units are installed on the floor next to the room.
Comprehensive piping diagrams, schematics, and charging data are available for our environmental walk-in rooms.
2. Main Technical Parameters
| SPECIFICATIONS | |||||||
| Model | KMHW- | ||||||
| 4 | 6 | 8 | 13 | 17 | 21 | ||
| Volume(m³) | 9 | 12.9 | 16.8 | 16.8 | 35.2 | 43.3 | |
| Interior Dimensions | W(mm) | 2100 | 3000 | 3900 | 3000 | 3900 | 4800 |
| H(mm) | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | |
| D(mm) | 2050 | 2050 | 2050 | 4300 | 4300 | 4300 | |
| Exterior Dimensions | W(mm) | 3250 | 4160 | 5050 | 5050 | 5050 | 5950 |
| H(mm) | 2350 | 2350 | 2350 | 2350 | 2350 | 2350 | |
| D(mm) | 2250 | 2250 | 2250 | 2250 | 4500 | 4500 | |
| Control System | Balanced Temperature & Humidity Control System | ||||||
| Temp. range | Maximum:80ºC,120ºC;Minimum:-60ºC,-50ºC,-40ºC,-30ºC,-20ºC,-10ºC,0ºC | ||||||
| Humidity Range | 10%,20%,30%~95% | ||||||
| Temp. constancy | ±0.5ºC | ||||||
| Humidity constancy | ±2.5%R.H | ||||||
| Temp. uniformity | ±2.0ºC | ||||||
| Humidity uniformity | ±5.0%R.H | ||||||
| Heat up time | +20ºC~+80ºC ,Within 60 min | ||||||
| Pull down time | +20ºC~-55ºC -40ºC-20ºC-10ºC ,Within 120 or 90 or 60 min | ||||||
| Interior material | Stainless Steel Plate(SUS 304) | ||||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||||
| Insulation material | Rigid polyurethane foam | ||||||
| Door size (mm) | Single wing:W800*H1800;Double wing:W1600*H1800; | ||||||
| Safety Devices(standard) | No fuse breaker, over pressureover heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection |
||||||
| Standard accessories | Sight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicator | ||||||
| Refrigeration system | Water Cooled | ||||||
| Semi-hermetic compressor, single stage or cascade refrigeration system | |||||||
| CFC free refrigerant(HFC-507 and HFC-23) | |||||||
| Controller | Panel | 7-inch LCD Touch panel,Chinese or English display selectable | |||||
| Operation model | Program or fix point running | ||||||
| Memory capacity | 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles | ||||||
| Accuracy | Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit | ||||||
| Input | Temp.:pt-100, Humidity:pt-100 or ~5V DCV | ||||||
| Comm.port | RS-232 or RS-485 (Softawre is option) | ||||||
| Ambient Temp. | +5ºC~+35ºC | ||||||
| Wiring method | AC 380±10%50Hz ,3 phase 4 wires +Ground Wires | ||||||
| Note:1. We reserve the right to change specifications without prior notice | |||||||
| 2.Customized sizes and configurations available | |||||||
Features :
1.Heat preservation material, we use high-intensity PU foam with flame retardant material and high density glass fiber cotton, which can assure high precise and better uniformity and avoid unnecessary energy loss. Meanwhile, our design can better assure personnel safety when operating a Walk-in Chamber.
| Cold Room Temperature | Thickness of Cold Room Wall and Proof |
| 5 - 15 Degree Celsius | 75mm |
| -15 - 5 Degree Celsius | 100mm |
| -20 - -15 Degree Celsius | 120mm |
| -30 - -20 Degree Celsius | 150mm |
| Lower than -30 Degree Celsius | 200mm |
2. Large glass window design, viewing angle in all directions, hollow electric plating film and anti-condensation design; built-in LED lights to facilitate the test sample state of real-time observation in the course of testing; double door design, the inner big glass door with hand-in holes for the convenient operating.
3. Material quality of inner box is SUS304 # mounted stainless steel imported, and outer box is steel plate and the paint process applies automobile coating technology. Box body is processed shape using Triumph processing machine, its shape is nice and neat.
4. Large-size Full Color LCD touchscreen displayer, simple operation, easy to edit programs. PID with automatic calculation function; self-diagnostic function, show failure message and failure shot solutions step by step.
5. An RS-232 and RS-485 communication interface, matching recorder, strong expandability. We also support remote control by PC via wifi or wire (recommended).
Standard Met and Implemented:
GB/Bb T2423.2-89 high temperature test method
GB2423.1-89 test A: low temperature test method 6
GJB150.4-1986 test at low temperature
IEC60068-2-1 low temperature test method
IEC60068-2-38 temperature cycle
IEC60068-2-78 constant humidity temperature
3. Walk-in Room Construction:
Rooms are constructed of Stainless Steel metal tongue and groove sectional panels. An assembled room has continuous steel perimeters to hold panels tightly in place.
Panel features include:
1) 100% insulation
2) Light weight for easy handling – average weight of the largest panel is 84 lbs.
3) Alignment pins for accurate fit.
4) Steel straps connect locking arms with locking pins on opposite sides of panels.
5) Cam-actuated locks ensure tight fits and accommodate frequent assembly / disassembly for relocating or enlarging the room.

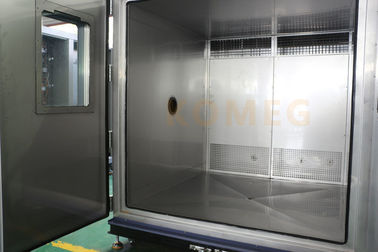

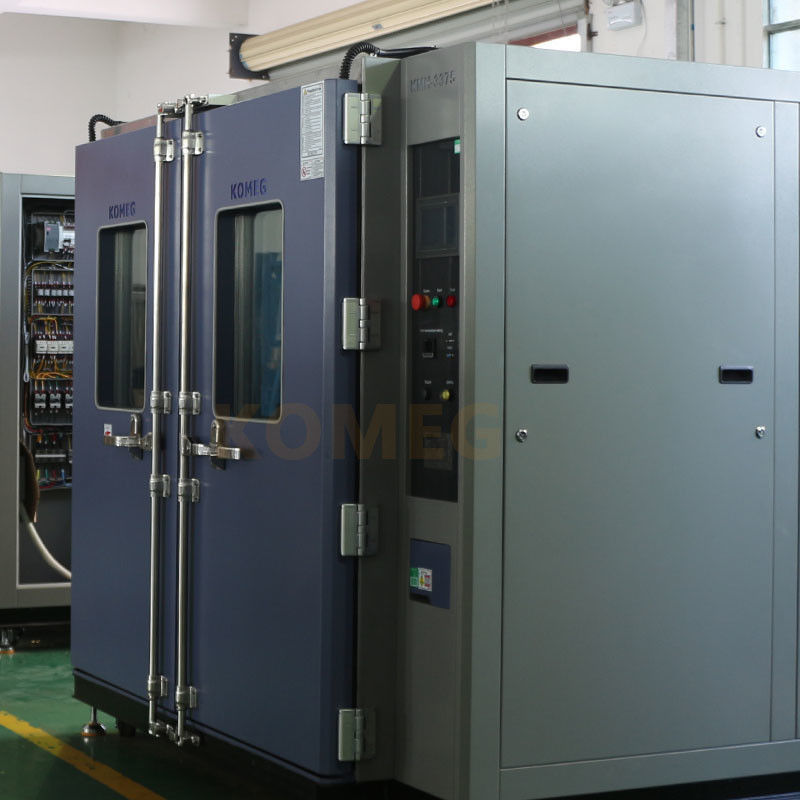

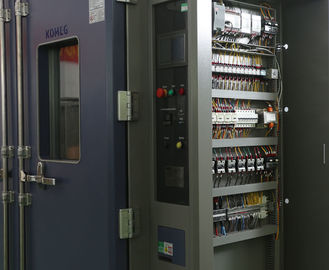

4. Walk-in Room Show
