Product Details:
Payment & Shipping Terms:
|
| Interior Material: | Stainless Steel | Temp Range: | -70℃ ～ +150℃ |
|---|---|---|---|
| Exterior Material: | Baked Painting Steel | Insulation Material: | Rigid Poly Foam And Glass Fiber Wool |
| Controllor: | Touch Screen Controller | Room Temperature: | +25℃ (no Load ) |
| High Light: | humidity and temperature controlled chamber,temperature test chamber |
||
Description :
3 Axis Temperature Humidity vibration Integrated Chamber Large Force For Aerospace
OEM and ODM are welcome
Application:
Temperature Humidity Vibration Combined Environmental Test Chambers an match appropriate vibration
table to meet all kinds of the corresponding temperature, humidity and vibration combined environmental
testing requirements. And widely used in aviation, aerospace, shipbuilding, electrical, electronics,
communications and other industrial fields.
also alternate through programmable for testing the product or material heat-endurance, cold-endurance,
and humidity-endurance, or dryness-endurance, more over vibration; widely applied for quality inspection
for quality control of the industries of aviation and space, electron, electrical equipment,
vehicle(automobile), metal, instrument, chemistry, building materials, foodstuffs, adhesion tape, printing,
packaging, etc.
Specification
|
Temperature range |
-70℃ ～ +150℃
|
|
Temperature deviation |
≦±2.0℃
|
|
Temperature fluctuation |
±0.5℃
|
|
Temperature uniformity |
≦2.0℃
|
|
Ambient Temp |
+5℃～+35℃
|
|
Chamber Structure |
|
|
Chamber size |
Interior: W 60*H85*D80 cm
Workshop Size:408L |
|
heating up and down |
.≦5℃/Min or 10℃/Min (-55℃～+80℃ Humidity range )
|
|
Heater |
High-quality nickel-chromium alloy wire electric heater, non-contact control (SRR).
|
|
Supply air circulation system |
A. Special stainless steel lengthened axis of the motor 1
B. SIROCCO FAN
C. Adjustable shutter outlet |
Refrigeration system
|
1.Compressor |
BOCK Semi-hermetic compressors
|
|
2.Refrigerant |
R404A/R23 (Ozone damage index is 0)environmental friendly
|
|
3.Condenser |
Air cooling fin condenser.
|
|
Evaporator |
Copper aluminum finned evaporator.
|
|
5. Other accessories |
High-precision expansion valve, oil separator, desiccant, etc. components are
imported using internationally renowned brands |
|
6.Refrigerant flow control |
Automatic adjustment of energy consumption output of the refrigeration system. |
|
7.Refrigeration Technology |
1. Nitrogen welding, two-stage rotary vane vacuum pump, ensure that the internal
cooling system clean and reliable.
2.water tray located at the bottom of the compressor to ensure condensate water
drain through pipe freely at the rear of the chamber. |
|
Supply air circulation system |
A. Special stainless steel lengthened axis of the motor 1
B. SIROCCO FAN
C. Adjustable shutter outlet |
|
Controller |
Touch screen programmable controller
|
|
Vibration table |
Optional accroding to customer requirements
|

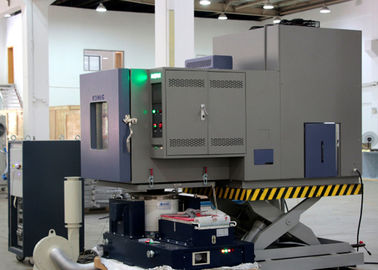

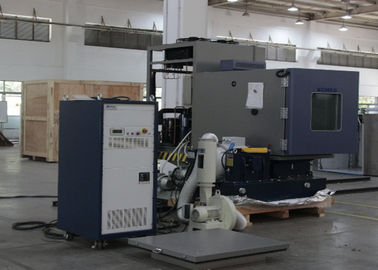

Photos Show
