Water Cooled Walk In Environmental Climatic Test Chamber / Temperature and Humidity Chamber For Automotive Electronics

China Water Cooled Walk In Environmental Climatic Test Chamber / Temperature and Humidity Chamber  For Automotive Electronics supplier
Water Cooled Walk In Environmental Climatic Test Chamber / Temperature and Humidity Chamber  For Automotive Electronics supplier Water Cooled Walk In Environmental Climatic Test Chamber / Temperature and Humidity Chamber  For Automotive Electronics supplier Water Cooled Walk In Environmental Climatic Test Chamber / Temperature and Humidity Chamber  For Automotive Electronics supplier

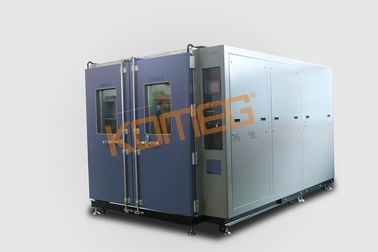

Large Image :  Water Cooled Walk In Environmental Climatic Test Chamber / Temperature and Humidity Chamber For Automotive Electronics

Product Details:

Place of Origin: China,Dongguan
Brand Name: KOMEG
Certification: CE/ROHS/FCC/ISO
Model Number: KMHW-19S

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T /C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Programmable Walk-in Test Chambers Temp. Uniformity: +/-2
Temp Fluctuation: +/-0.5 Delivery: 30-35 Working Days
Application: Reliability Testing, Research & Development Testing, Failure Analysis Ambient Temperature: +5℃~+35℃
Humidity Uniformity: +/-3%RH(>75%) +/-5%RH(≤75%) Humidity Fluctuation: +/-2.5%RH



Water Cooled Walk In Environmental Climatic Test Chamber / Temperature and Humidity Chamber For Automotive Electronics


1.Applications

Walk in test Chamber are used for various types of testing such as prototype evaluation, research & development testing, production testing, accelerated stress testing, reliability testing, failure analysis, and any other application where environmental simulation is needed.





2.Corresponding standard:

GB-2423. 1-89(IEC68-2-1) Test A: Low Temperature Test

GB-2423. 2-89(IEC68-2-2) Test B: High Temperature Test

GJB360. 8-87(MIL-STD.202F) High Temperature Operating Life Test

GBJl50. 3(MIL-STD-810D) High Temperature Test

GJBl50. 4(MIL-STD-810D) Low Temperature Test

GB2423. 3-93(IEC68-2-3) Test Ca: method for steady-state damp heat test

GB2423. 4-93(IEC68-2—30) Test Db: Damp Heat Alternative Test

GJBl50. 9-93(MIL-STD-810D) Damp Heat Test


3. Main Technical Parameters

Model

KMHW-19(walk-in room)

Volume(m³)19

19CBM

Interior Dimensions

W 2500 × H 2500 × D 3000 mm

Exterior Dimensions

W 3050 ×H 2800 ×D 4300 mm

Safety Devices(standard)

No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection

Standard accessories

Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator

Control System

 Balanced Temperature & Humidity Control System

Refrigeration system

Water Cooled

Semi-hermetic compressor, single stage or cascade refrigeration system,

CFC free refrigerant ( HFC-507 and HFC-23 )

Controller

Panel

7-inch LCD Touch panel, Chinese or English display selectable

Operation model

Program or fix point running

Memory capacity

120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles

Accuracy

Temp.:0.1% of F.S ± 1 digit  Humidity:0.1% of F.S ± 1 digit

Input

Temp.: pt-100, Humidity: pt-100 or ~5V DCV

Comm.port

 RS-232 or RS-485 ( Softawre is option)

Temp. range

Maximum: 80 ºC,120 ºC;
Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC

Humidity Range

10%, 20%, 30% ~ 95%

Temp. constancy

±0.5 ºC

Humidity constancy

±2.5%R.H

Temp. uniformity

±2.0 ºC

Humidity uniformity

±5.0%R.H

Ambient Temp.

+5 ºC~+35 ºC

Wiring method

AC 380 ± 10% 50Hz ,3 phase 4 wires + Ground Wires

Heat up time

 +20 ºC~+80 ºC, Within 60 min

Pull down time

 +20 ºC ~ -55 º,  -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60  min

Interior material

Stainless Steel Plate(SUS 304)

Exterior material

Baked Painting Steel Or Stainless steel ( SUS304)

Insulation material

Rigid polyurethane foam

Door size (mm)

Single wing: W800 x H1800;  Double wing: W1600 x H1800;

Note:1. We reserve the right to change specifications without prior notice   2.Customized sizes and configurations available




4.  Features:



a. Touch panel for the convenient input of fixed values and programming with graphic depiction of nominal and real values, operating time, remaining cycles etc., including help functions
b. Programme memory for up to 100 programmes with a total of 1000 sections
c. Software support for potential-free inputs and outputs
d. Password protection, two-stage, to avoid unintentional alteration
e. Integrated limit value monitoring system for temperature and humidity
f.  Inspection system provides information on malfunctions and collects operating time dat






5. The brand of the accessories:



Water Cooled Walk In Environmental Climatic Test Chamber / Temperature and Humidity Chamber  For Automotive Electronics

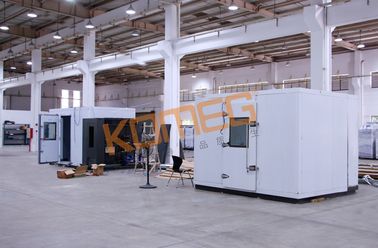

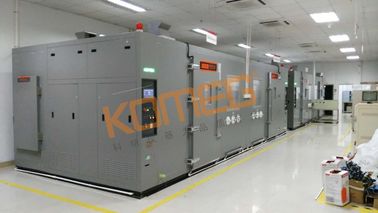

 6. Walk-in Room Internal Show



Water Cooled Walk In Environmental Climatic Test Chamber / Temperature and Humidity Chamber  For Automotive Electronics

Water Cooled Walk In Environmental Climatic Test Chamber / Temperature and Humidity Chamber  For Automotive Electronics

Water Cooled Walk In Environmental Climatic Test Chamber / Temperature and Humidity Chamber  For Automotive Electronics





7. Related products:

Water Cooled Walk In Environmental Climatic Test Chamber / Temperature and Humidity Chamber  For Automotive Electronics



Temperature Humidity Test Chamber Series:

36L, 64L, 150L, 225L, 408L, 800L, 1000L, 1500L,2360L, 3000L and etc.

Walk in Chamber / Walk in Climatic Test Chamber / Walk in Temperature and Humidity Test Chamber / Aging Chamber series:

10CBM, 13CBM, 24CBM, 27CBM, 45CBM, 256CBM, 300CBM, 485CBM, 520CBM and etc.
