| Temp Range: | -40℃～100℃ | Heat Up Time: | 0.7℃～1℃/min |
|---|---|---|---|
| Interior Material: | Stainless Steel Plate | Exterior Material: | Baked Painting Steel |
| Pressure Range: | Normal Pressure ～0.5kPa | Temp Constancy: | +-1.0℃ |
| High Light: | high temperature test chamber,low temperature test chamber |
||

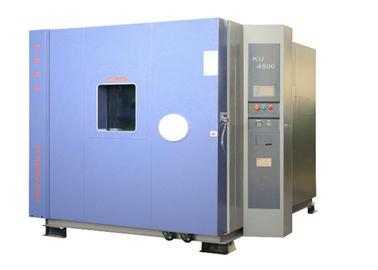

High And Low Temperature Test Chamber / Low Pressure Testing For Military
OEM &ODM are welcome (Different size and temperature can accroding to customer requirement)
For more detail information ,please kindly contact : anna@komegtech.com whats app &Wechat :+86-18029096856
Specification
| Model no |
KU-4500L
|
| Interior size |
w150xh174xD173CM
|
| Exterior size |
According to the design
|
| Temp range |
-40℃ ～ +100℃
|
|
Temp fluctuation |
0.5℃ (no load abormal pressure)
|
|
Temp deviation |
+-2℃ (no load )
|
|
.Heat up time |
+0.7℃ ～ +1.0℃/min (average whole process )
|
| Exterior material |
Baked painting steel
|
| Insultaion material |
Glass wool
|
| Safety device |
NFB,Over temp ,reley ,fuse
|
| Accessories |
Timer ,adjustable compartment plate
|
| Power |
Fins radiator pipe shaped stainless steel electric heater
|
Temperature controller
|
Sensor |
High precision DIN A class,Dry ball φ4.8mm SUS #304 PT 100Ω.
|
|
Display function |
Temp and humidity setting (SV) The actual (PV) value is displayed directly;
Support executive program number, Paragraph, remaining time, number of cycles,
running time display;
Program editing and graphical curve display;
Fixed point or program action status display;
7-inch resolution: 800 * 480, 65535 true color, LED backlight display screen. |
|
Control resolution |
Temp: + 0.01℃；Humidity: + 0.1%；time: 0.01min
|
|
Setting range |
Temp Condition:–100～200 ℃；
According to the temperature of the chamer to adjust the working range (upper limit
+5 ℃, lower limit -5 ℃)
Humidity Condition:0～100 %RH |
|
Operating mode |
Programmable running, constant running
|
|
Program capacity |
Running time up to 999999 h 59 m (also can be set to continue running without time limit);
Available program capacity: up to 269 groups, a total of 13450 paragraphs;
Usable memory capacity: 50 steps per group;
Repeatable commands: Up to 32000 cycles per command |
|
Setting way |
Man-machine dialogue mode, using touch input and control
|
|
Communication Interface |
RS-232,RS-485 and Ethernet.
Data collection and curve display when connected with a computer
Can be used as monitoring and remote control system
Multi machines synchronization control available |
|
U Disk Memory Card |
1G-8G available for downloading historical curve and data
|
|
Pre-set function |
Boot time can be set freely and machine runs automatically when turning on power
|
Application
Low air pressure testing chamber can simulate the temperature /humidity condition of envieronment to
evaluat potential success or failure of a product in the field. This kind of device come in a variety of sizes,
from a small box that fits on the bench top to a room-sized chamber for large objects or for testing large
batches of product simultaneously.
Features
Photos show
