Product Details:
Payment & Shipping Terms:
|
| Heater: | 15kw+11kw | Testing Room Relative Humidity: | > 85% |
|---|---|---|---|
| PH: | 6.5~7.2; 3.0~3.2 | Air Compressor: | 1/2 HP |
| Power: | Electronic | Test Applicable: | NSS, ACSS,CASS,CORK |
| High Light: | salt spray testing machine,salt spray corrosion test chamber |
||
Automotive ASTM Salt Spray Test Equipment / Salt Spray Corrosion Test Chamber LCD Touch
Screen
Product Description
ThSalt spray corrosion test chamber (Salt spray test chamber, salt box, salt spray test machine, salt
spray corrosion test chamber) can be used to assessing the ability of salt spray corrosion resistant
materials. It can be used to assessment materials and their resistance to salt spray corrosion protection
layer capacity, whether you are testing hardware industry, screw industry, electroplate industry,
automotive and motorcycle parts, communication industry, computer industry, electronic industry, coating
industry, research institution, etc, our salt spray test chamber can give you a best solution.
Product Feature
1 Durable hard PVC construction, anti-corrosion, easy to clean.
2 Reservoirs with mixing system on stand.
3 Cabinet heated by water jacket, heating element from USA famous company.
4 Separate heating system, be apart from salt testing chamber to ensure accurate result and protect
circuit.
5 Exposure zone lined with corrosion-resistant PVC sheets.
6 Clear cover allows viewing of test conditions.
7 Peaked cover prevents dripping of condensation onto samples.
8 Water seal and water level protection system.
9 Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
10 Automatic DI water fill to humidifying tower.
11 Digital temperature control and readouts.
12 Integral over-protection on all heaters.
13 Low water cut-off protection on humidifying tower
Product Specifications
| Model | KM-HL-60 | KM-HL-90 | KM-HL-160 |
| Inside Dimension (mm) | W600*D450*H400 | W900*D600*H500 | W1600*D1000*H500 |
| Outer Dimension(mm) | W1080*D600*H1150 | W1400*D800*H1300 | W2250*D1200*H1250 |
| Temperature range | 35℃~50 ℃ | 35℃~50 ℃ | 35℃~50 ℃ |
| Spray pressure | 1.0±0.1kgf/cm² | 1.0±0.1kgf/cm² | 1.0±0.1kgf/cm² |
| Ambient temperature | 5~30℃ | 5~30℃ | 5~30℃ |
| Power | 220V,Single-phase2.0KW,50HZ | 220V,Single-phase2.0KW,50HZ | 380V,6.0KW,50HZ |
Control system:
1,Test chamber temperature control: Control the chamber temperature , according to standard, NSS
AASS test is 35℃,and CASS test is 50℃.
2,Pressure barrel temperature control:Control the saturated air barrel temperature, NSS AASS is
47℃,CASS test is 63℃.
3,NSS AASS Test:Chamber temperature set 35℃, Pressure barrel temperature set in 47℃(40℃-50℃).
4,CASS test :Chamber tember temperature set 50℃, Pressure barrel temperature set 63℃(60℃-70℃).
Power switch:Control the whole machine power. Long press for power on or off.
5,Start/stop switch:Control the heating system of test chamber, heat sink and Pressure barrel.
Spray/pause switch:control the spray system.
6,Defog switch:control defog system, clear the salt mist in chamber after test.
7,Test chamber low water alarm:When the water level is low, the light will flicker . Add pure water into the
test chamber until the light doesn,t flicker.
8,Salt water tank low water alarm:When the salt water level is low, the light will flicker.Add salt water into
the salt water tank until the light doesn,t flicker.
9,Pressure barrel low water alarm:When the water level is low, the light will flicker.Add pure water into
the pressure barrel nutil the light doesn,t flicker.

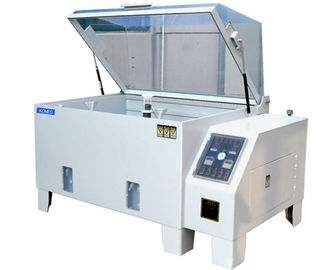

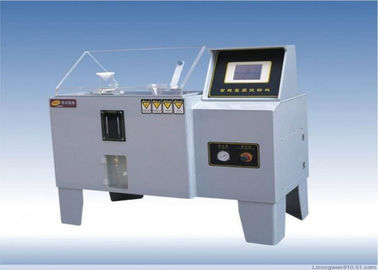

Photos show
FAQ
1. Q: Have your machine met relevant standards, and with relevant TEST CERTIFICATE?
A: Yes, our machines are manufactured according to International Standards. If TEST CERTIFICAT
required, it can be offered.
2. Q: How-to vedio provided?
A : Yes, if required, our engineers will record a specialize how-to video for you.
3. Q: Is the machine made in your own plant?
A: Yes, welcome to visit our plant(factory), also we support OEM and ODM.
4. Q:How you do the maintenance oversea?
A: In the way you are convenient, by Telephone or E-mail or Vedio meeting etc.
Transport
Depending on the size of the order and its destination, we will find the most efficient way of delivering
your order. Collect shipments through your account at UPS, FedEx, freight forwarder of choice or other
can also be arranged. Let us know of such arrangements with your Purchase Order.
Quotes and Orders do not include customs duties and taxes as they vary from country to country and are
the sole responsibility of the buyer.
Our Services
We are on line 24 hours, your any questions will get timely effective treatment and recovery.
