KU4500L Stainless Steel Altitude Test Chamber For Steady And Transient State Testing

KU4500L Stainless Steel Altitude Test Chamber For Steady And Transient State Testing
KU4500L Stainless Steel Altitude Test Chamber For Steady And Transient State Testing
video play

Large Image :  KU4500L Stainless Steel Altitude Test Chamber For Steady And Transient State Testing

Product Details:
Place of Origin: China
Brand Name: KOMEG
Certification: CE , ISO9001
Model Number: KU-4500L
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 45 working days after received your payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 SETS /YEAR
Detailed Product Description
Exterior Material: Baked Painting Steel Interior Material: Stainless Steel
Pressure Range: Constant Voltage~0.5kPa Application: Steady And Transient State Testing
Temp Range: -40℃ ~ +100℃ Cooling Mode: Water Cooled
High Light:

high altitude chamber

,

altitude testing chamber

KU4500L Programmable High Low Temperature Test Chamber For Air Pressure Testing





Prouduct Applications



High Altitude Low Voltage Test Chamber Simulated Environmental Test Chamber is mainly used in



aviation, aerospace, electronic, national defense, scientific research and other industrial sectors to



determine electrical and electronic products (including the components, materials and instruments) in



high and low temperature depression under the action of single and at the same time, storage transport,



reliability test, and at the same time try to product electricity electric performance parameters of the test,



the sample (s) to under the condition of a given environment behavior performance.



Prouduct Features



● Temperature range from -40 to 100℃



● Altitude range ground to 100,000 feet



● External pressure type box body structure and stainless steel tank design, rational air circulation



   system and scientific layout of heating, refrigerating system.



● Adopts international brand of imported parts for cooling system to improve operation reliability



● High precision and stable performance with touch screen controller, friendly Man-Machine interface.



● Multiple layers of safety device to easy maintenance.



● Viewing window and cable ports available



● Vacuum pump sized for climb/dive rate required by application





Prouduct Specifications



Model KU-4500L
Inner Size (D*W*H)mm W150*H174*D173
Performance Temp range -40℃~+100℃
Temp constancy ±0.5%
Temp deviation <100℃, ±2.0℃(at constant pressure with empty load)
Cooling rate 0.7℃~1.0℃/min(Overall average)
Pressure range Constant pressure ~1kPa
Pressure constancy When ~ 0.5kPa,
Depressurization rate Constant pressure~1kPa≤30mins(Normal temp)
Pressure recovery rate 10kPa/Min(adjustable)
Material Exterior material Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate
Interior material Stainless steel(SUS304)
Pressurized parts High quality steel plate(Rust proof & Plastic spray treated)
Insulation material High quality glass wool
Cooling System Compressor Semi-Hermetic Compressor
Cooling Mode Water cooled
Temp regulating method Balanced Temperature & Humidity Control System (BTHC)
Pump Rotary vane type vacuum pump
Heater Iron-chrome wire heater
Sight window Circular viewing glass incorporating heat generator
Temp Sensor Pt-100
Controller Touch Screen Controller
Safety Devices Over pressure, over heat and over current protection for compressor, over temp. protection, over load protection for blower, Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarm
Standard Accessory Sight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2
Power AC380V/50Hz, 3Phase 5 wires+ Ground Wire.
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available





Environmental test chamber Standard


B10592-89 Technical requirements for high and low temperature test chamber

GB2423.1-1989 Low temperature test

GB2423.2-1989 High temperature test mode

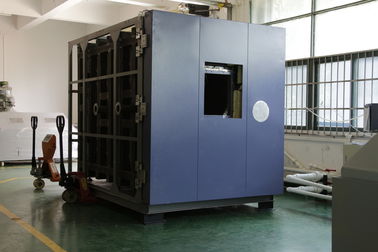

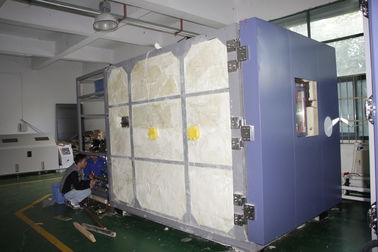

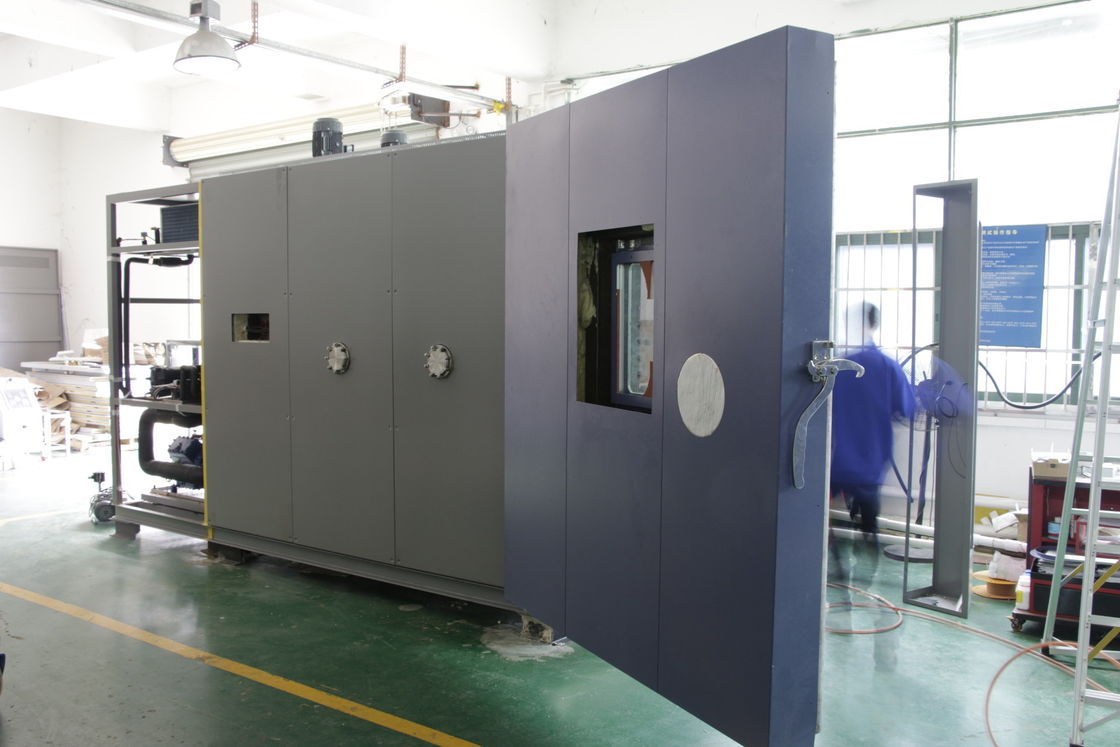

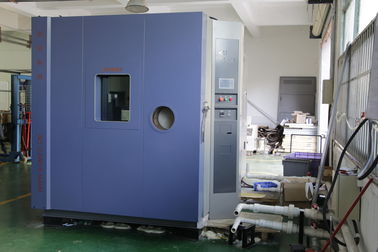

Prouduct Display



KU4500L Stainless Steel Altitude Test Chamber For Steady And Transient State Testing 0



KU4500L Stainless Steel Altitude Test Chamber For Steady And Transient State Testing 1



KU4500L Stainless Steel Altitude Test Chamber For Steady And Transient State Testing 2



KU4500L Stainless Steel Altitude Test Chamber For Steady And Transient State Testing 3





Packing and Shipment:



(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber

(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.

KU4500L Stainless Steel Altitude Test Chamber For Steady And Transient State Testing 4




After-sale Service:



If you face any problems in future during testing process we promise we will give you a reply within 48



hours and solution provide within 3 working days. We can offer operation video and English operation



muanual. We can provide video-conference. If customers require on-site service, the transport and travel



expense shall be borne by customer.



For more detail information ,kindly contact : annie@komegtech.com whats app ,wechat :+86-

13726402801

KU4500L Stainless Steel Altitude Test Chamber For Steady And Transient State Testing 5
