Customization: | Available | Controller: | LCD Touch Screen Controller |
---|---|---|---|
Standard: | Internationally Accepted | Working Chamber Volume(L): | 1000 |
Heater: | Iron-chrome Wire Heater | Blower: | Centrifugal Blower |
High Light: | Environmental Stress Screening Chambers,environmental testing chambers |

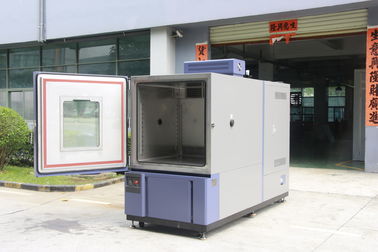

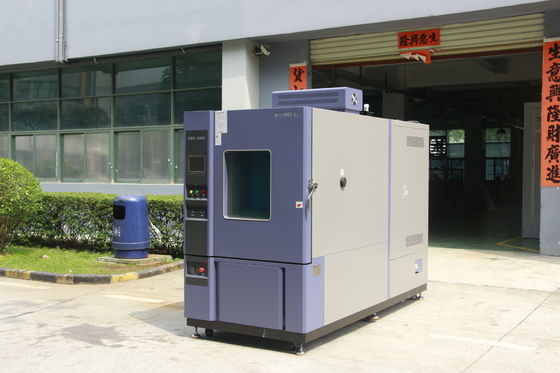

ESS-1000L LCD touch screen controller rapid temp change chamber
Prouduct Applications
Hot cold cycling equipment is also known as hot and cold impact testing machine, used to test
or composite material structure, in an instant by the extremely high temperature and low temperature
under continuous environment can endure degree, in order to test in the shortest possible time chemical
changes caused by heat bilges cold shrink or physical damage. Applicable to metal and plastic, rubber,
electronic...Such as material, can be used as the basis of its product improvements or reference
Prouduct Features
1. Automatic adding water function, and automatic filling water upon the water short storage while testing.
2.Automatic operation to test process finished, easy to use.
3.Temperature control: LED digital temperature controller can make accurate testing of temperature
setting, control and display.
4. LED digital timer, when the inner box's temperature reached the setting value, then start to time to
ensure the test complete.
5.Accurate pressure: temperature chart always shows the inner box's pressure and relative humidity.
6.Water device is automatically discharge not saturated steam in order to achieve the best steam quality.
7.A integrated silica gel door gasket, air tightness is very good, and long operation life.
8.The inner box is mirror-polished , graceful and non-pollution.
Model | ESS-SL |
1000SL15 | |
Working Chamber Volume(L) | 1000L |
Temp Rate of Change( ºC /Min) | 15 ºC /Min |
Temperature Range | -70 ºC~+100 ºC( Rapid Temp Change -55 ºC~+85 ºC Full Linear Control) |
Humidity Constancy | ±0.5 ºC |
Temp Constancy | ±3.0 ºC |
Exterior Material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel |
Interior Material | Stainless Steel Plate(SUS 304) |
Insulation Material | Rigid Polyurethane Foam |
Safety Devices | over pressure,over heat and over current protection for compressor, over temp. protection, |
Compressor | Semi-Hermetic Compressor |
Cooling Mode | Water Cooled |
Control system | Balanced Temperature & Humidity Control System(BTC type) |
Heater | Iron-chrome wire heater |
Blower | Centrifugal Blower |
Observation Window | Glass incorporating heat generator |
Temp Sensor | Pt-100 |
Controller | Touch screen programmable controller |
Ambient Temp. | +5ºC~+35ºC |
Power | AC 380V/50Hz 3phase 5 wires+ Ground wire |
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
Standards Implemented and Met
GB10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode
