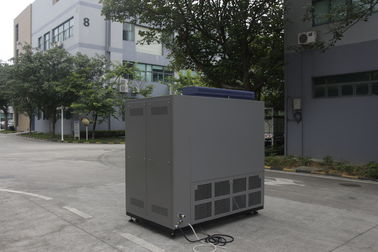

High Reliability 1500L Constant Temperature Humidity Chamber Easy Operation

High Reliability 1500L Constant  Temperature Humidity Chamber Easy Operation
High Reliability 1500L Constant  Temperature Humidity Chamber Easy Operation High Reliability 1500L Constant  Temperature Humidity Chamber Easy Operation High Reliability 1500L Constant  Temperature Humidity Chamber Easy Operation High Reliability 1500L Constant  Temperature Humidity Chamber Easy Operation

Large Image :  High Reliability 1500L Constant Temperature Humidity Chamber Easy Operation

Product Details:
Place of Origin: China
Brand Name: KOMEG
Certification: CE, ISO9001
Model Number: KMH-1500S
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Packed with film firstly, and then reinforced with wooden case for outer packing
Delivery Time: 30 days after confirm the order
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1, 000~1, 500 SETS / YEAR
Detailed Product Description
High Reliability Easy Operation 1500L Constant Temperature And Humidity Test Chamber: ID 1500 × IH 1000 × IW 1000 Mm Exterior Size: ED 2250 × EH 2035 × EW 1200 Mm
Temperature Range: -70 ℃ ~ +70 ℃ Inner Wall Material: SUS304 # Matte Stainless Steel Plate
Insulation Materials: Rigid Polyurethane Foam Insulation Layer + Glass Fiber Door: Double Door
High Light:

temperature and humidity chamber

,

temperature test chamber

High reliability easy operation 1500L constant temperature and humidity test chamber





Product Overview



Able to accurately simulate a wide range of complicated natural environments, and is suitable for



reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental



testing equipment and test methods for the basic parameters of electric and electronic products under



the condition of humidity, low temperature, high temperature, and constant heat.



Application


Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical



appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research



institution, inspection and quarantine bureau, university etc..





Specification



Chamber
Workspace volume ID 1500 × IH 1000 × IW 1000 mm
 Exterior size ED 2250 × EH 2035 × EW 1200 mm
Temperature
Temperature range -70 ℃ ~ +70 ℃
Temp Deviation ±2.0℃
Temp Constancy ±0.5℃
Temp Uniformity ±2.0℃
Ramping and soaking rate

-70℃↑ +150℃ within 55 mins (no-load)

+20℃↓ -70℃ within 90 mins (no-load)

The above specifications is measured in the environment of + 25 ℃, temperature and humidity performance measurement comply with related regulation of IEC60068-3 standard; Sensors placed in the air outlet.
Chamber Structure

Overall structure and chamber was composed of three parts as below.

Insulation box, separate refrigeration units, and electrical control cabinet.

Insulation box

wall material: high-quality carbon steel with static color spray

inner wall material: SUS304 # matte stainless steel plate

Insulation materials: rigid polyurethane foam insulation layer + glass fiber.

Door Double door,Heating wire was installed at the door frames to prevent condensation at low temperatures.
Observation window With 1 set 460 × 560mm (width × height) observation window, multi-hollow electric insulation coated glass prevent condensation effectively
Cable port Φ100mm*2 located on both sides (each*1) with rubber stopper and plastic cover
Lighting device 11W/AC220V *1 located on observation window
Heating

Quality nickel-chromium alloy wire electric heaters,

Non-contact control mode (SRR).

 Humidifying

Steam heating and humidification method;

Stainless steel sheathed heater;

Heater control: contactless control (SSR);

Water level control device, heater anti-dry device.

Water outlet hole Available for drain the condensate water
Sample holder Two layers of stainless steel sample holder,every holder could load 40KG
Mobile Casters Mobile Casters *4 with foot cups
Electric control box Total power circuit breaker, over-temperature protection.
Water supply system Water pump automatic supply





Standard Met and Implemented:



● GB-2423. 1-89(IEC68-2-1)Test A: Low Temperature Test



● GB-2423. 2-89(IEC68-2-2)Test B: High Temperature Test



● GJB360. 8-87(MIL-STD. 202F) High Temperature Life Test



● GBJl50. 3(MIL-STD-810D) High Temperature Test



● GJBl50. 4(MIL-STD-810D) Low Temperature Test



● GB2423. 3-93(IEC68-2-3)Test Ca: Constant Heat Test



● GB2423. 4-93(IEC68-2—30)Test Db: Damp Heat Alternative Test



● GJBl50. 9-93(MIL-STD-810D) Damp Heat Test





Product details



High Reliability 1500L Constant  Temperature Humidity Chamber Easy Operation 0



High Reliability 1500L Constant  Temperature Humidity Chamber Easy Operation 1





Packaging:



Programmable Climatic Test Chambers are covered with air bubble film before put them into the strong



plywood case, which not only has good shock absorption, impact resistance, heat sealing and also has



the advantages of nontoxic, odorless, moisture corrosion, crash-proof, etc.





High Reliability 1500L Constant  Temperature Humidity Chamber Easy Operation 2
