Product Details:
Payment & Shipping Terms:
|
| Pre-heat Time: | 60°C To 200°C Within 20 Min | Pull Down Time: | - 80°C To -10°C |
|---|---|---|---|
| Ambient Temp: | +5°C To 35°C | Refrigeration System: | LCD Toch Panel |
| Interior Material: | Stainless Steel Plate(SUS304) | Exterior Material: | Baked Painting Steel Or Stainless Steel(SUS304) |
| High Light: | thermal shock chamber,environmental testing chambers |
||

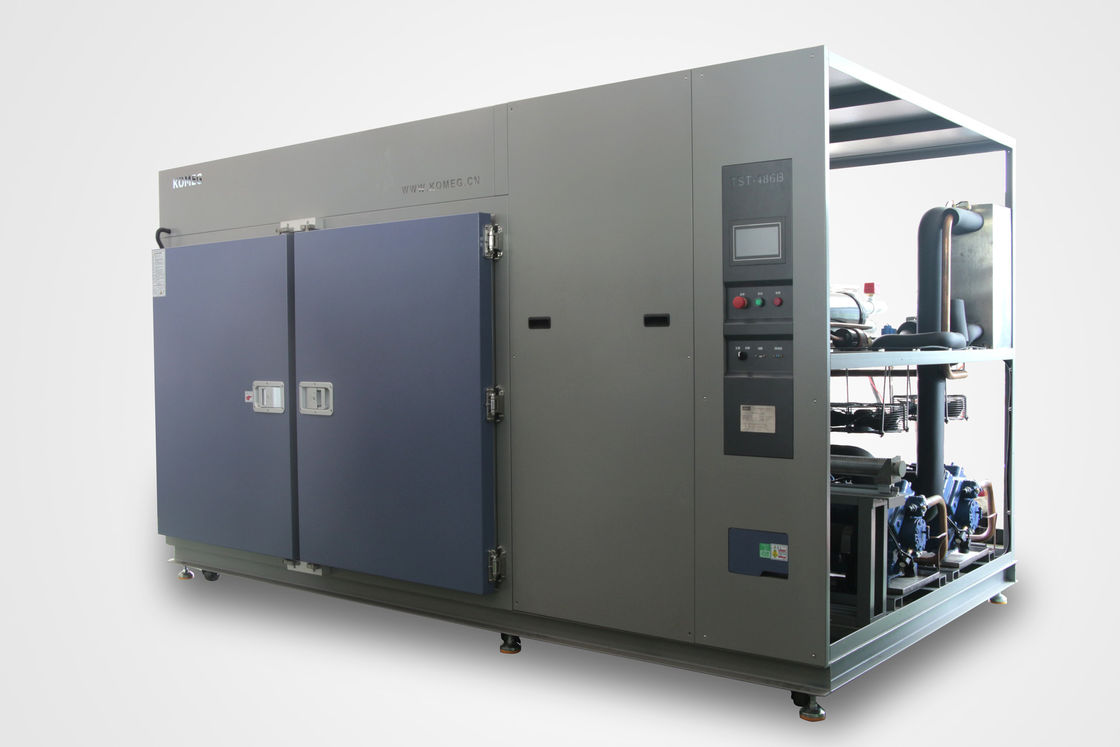

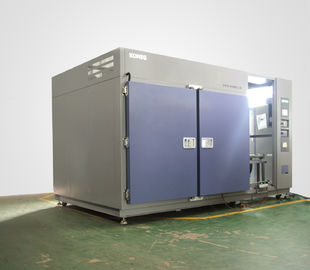

Stainless Steel Plate 7'LCD Toch Panel 500L 2-zone Thermal Shock Chamber
Applications
2-zone Thermal shock chamber have been designed to operate in accordance with reliability programs, quality control, commercial test programs and medical tests. It is used to test the capability of material structure or composite material to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period. It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be used as a reference or basis for produce improvement.
Specifications
| Model | TST--500A | ||||||
| Temp.range | High Temp.chamber | +60 ℃~+200 ℃ | |||||
| pre-heat time | +60 ℃~+200 ℃ Within 20 Min | ||||||
| Low Temp.chamber | (D) -80 ℃~-10 ℃ | ||||||
| pre-heat time | (D) +20℃~-70 ℃ Within 60 Min | ||||||
| Test.chamber | (D) -65℃~+150 ℃ | ||||||
| Recovery time | Exposure 30 min | ||||||
| Exposure 30 min | |||||||
| Recovery time within 5 min | |||||||
| Test weight(kg) |
20 |
||||||
| Basket material (cm) | W | 100 | |||||
| H | 50 | ||||||
| D | 100 | ||||||
| Interior material | Stainless Steel Plate(SUS304) | ||||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||||
| Insulation material | Rigid polyurethane Foam+glass fibre wool | ||||||
| Refrigeration system | Semi-hermetic compressor,cascade refrigeration system,CFC free referigerant | ||||||
| Controllor | Panel Operation model Memory capacity Accuracy Input Comm.port | 7'LCD Toch panel,Chinese or English display selectabile Program or fix point rinning 120programs,120steps,all repeat999cycles,part99cycless. Temp:0.1%of F.S±1 digit Humidity:0.1%of F.S±1 digit Temp:pt-100 Humidity:pt-100 or ~5V DCV RS-232 or RS-485(Softawre is option) | |||||
| Safety Devices | No fuse breaker,over pressure, over heat and over current protectors for compressor,over temp.protector, over load protectorof fan,dry heat protector. | ||||||
| Standard Accessories | Shelvesw*2,cable port(portØ50mm)*1 | ||||||
| Ambient Temp | +5℃~+35℃ | ||||||
| Power | AC380±10%50Hz 3phase 4 wires+Groud Wires | ||||||
Standards Met and Implemented:
Prouduct Display
Packing and Shipment:
