Product Details:
Payment & Shipping Terms:
|
| Temperature Range: | -50 ~ +130 ℃ | Temp Deviation: | ≦±2.0℃ |
|---|---|---|---|
| Workspace Volume: | W 1000 × H 850× D 1000 Mm | Exterior Size: | W 1550 × H (pending) × D 3000 Mm |
| Humidity Fluctuation: | ±2.5％RH | Humidity Deviation: | ≦±3.0％RH |
| High Light: | temperature and humidity chamber,humidity and temperature controlled chamber |
||

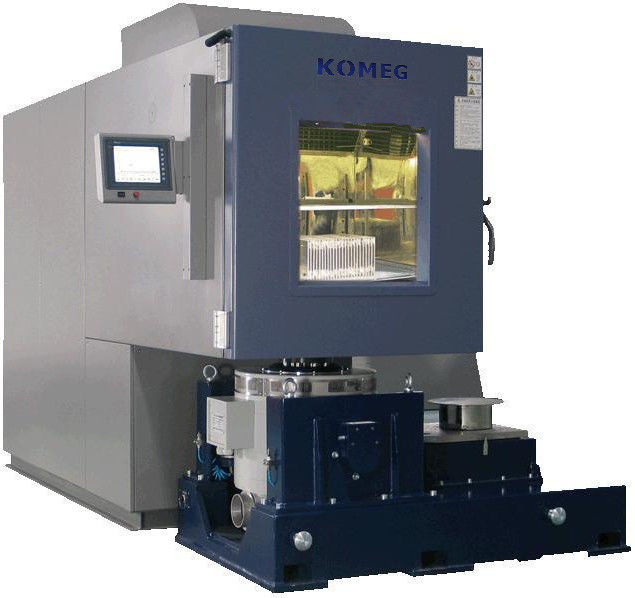

Single door 800L programmable Integrated Temperature, Humidity and Vibration Test Chamber
Product Overview
Able to accurately simulate a wide range of complicated natural environments, and is suitable for
reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental
testing equipment and test methods for the basic parameters of electric and electronic products under
the condition of humidity, low temperature, high temperature, and constant heat.
Application
AApplicable to environmental adaptability and reliability test in such industrial units as electronics,
electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material,
research institution, inspection and quarantine bureau, university etc..
Specifications
| Temperature range | -50 ~ +130 ℃ |
| Temp Deviation | ≦±2.0℃ |
| Temp Fluctuation | ≦±0.5℃ |
| Temp Uniformity | ≦±2.0℃ |
| 50 mm ≦ SENSOR placement point (distance from inside the wall size 1/10) ≦ 500 mm | |
| Heating time | From -50℃ to +130℃ within 70min (no-load) |
| Cooling time | From +20℃ to -50℃ within 70min (no-load) |
| Humidity | |
| Humidity range | 20%R.H.~ 98%R.H |
| Control range | |
| Humidity fluctuation | ±2.5％RH |
| Humidity uniformity | 3.0％RH |
| Humidity deviation | ≦±3.0％RH |
| Chamber Structure | |
| Chamber dimension |
Inside volume: W 1000 × H 850× D 1000 mm Outside size: approx. W 1550 × H (pending) × D 3000 mm (Not including the protruding part) |
| Insulation chamber body |
Wall material: high-quality carbon steel with static color spray Inner wall material: SUS304 # matte stainless steel plate Insulation materials: rigid polyurethane foam insulation layer + glass fiber. |
| Heating | Quality nickel-chromium alloy wire electric heaters |
| Humidifier | Back-type humidification tank |
| Air circulation system |
a. Special stainless steel long axis of the motor, 1 ea b. SIROCCO FAN c. Adjustable shutter air outlet |
| Door |
Heating wire was installed at the door frames to prevent condensation at low temperatures. Single door, window, left open, put his hand on the right
|
| Other accessories |
A. Temperature sensor: high-precision DIN A class, dry ball SUS # 304 PT 100Ω 1 ea wet bulb SUS # 304 PT 100Ω 1 ea B. Standard test non-woven 5 pieces |
| 8Water tank |
A. Built-in stainless steel water tank 1 ea B. Automatic water pump 1 ea (automatically supply the water in lower water tank to the upper) C. Water recovery unit and filtration treatment |
| Cable port | Φ50mm*1, located on left side, with rubber stopper and plastic cover |
| Sample holder | Two layers of stainless steel sample holder. |
| Power distribution control cabinet | Total power circuit breaker, over-temperature protection. |
| Water-supplying system | Pump water supply automatically |
Environmental test chamber Standard
GB-2423. 1-89 (IEC68-2-1)Test A: Low Temperature Test
GB-2423. 2-89 (IEC68-2-2)Test B: High Temperature Test
GJB360. 8-87 (MIL-STD. 202F) High Temperature Life Test
GBJl50. 3 (MIL-STD-810D) High Temperature Test
GJBl50. 4 (MIL-STD-810D) Low Temperature Test
GB2423. 3-93 (IEC68-2-3)Test Ca: Constant Heat Test
GB2423. 4-93 (IEC68-2—30)Test Db: Damp Heat Alternative Test
GJBl50. 9-93 (MIL-STD-810D) Damp Heat Test
Product details
Packing and Shipment:
After-sales Service and Training
Charge-free warranty will last for 1 year from the date of equipment acceptance. After the warranty
period, the user will be charged properly. Irregular examination and life-long service are available;
Note: If needed, provide 2 operators for on-site installation and training
