Product Details:
Payment & Shipping Terms:
|
| Temperature Range: | -70 ℃ ~ +150 ℃ | Temp Deviation: | ±0.5℃ |
|---|---|---|---|
| Inner Box Size: | W 700 × H 800 × D 700 Mm | Outer Box Size: | W 900 × H 1835 × D 1760 Mm |
| Door: | Single Door | Humidity Range: | 10%R.H～98%R.H |
| High Light: | temperature and humidity chamber,humidity and temperature controlled chamber |
||

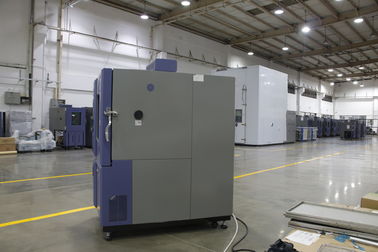

LCD Touch screen 392L single door temperature and humidity test chamber with lighting
device
KOMEG of temperature and humidity testing chamber product features
The chamber is machined by numerical control machine tool. It is beautiful and beautiful in shape, and it
is easy to operate with no counter - action handle；
The inner tank of the chamber is made of stainless steel, and the outer gallbladder of the chamber is
sprayed with A3 steel plate, which increases the texture and cleanliness of the exterior；
The large observation window attached light is bright in the box, and the embedded steel glass in the
heating body is used to observe the condition in the box at any time；
Test holes with diameter 50mm on the left and right sides of the chamber,Allowed external circumference
measurement Power supply Sum signal for line use,Prevent interference from each other.
Application
Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical
appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research
institution, inspection and quarantine bureau, university etc...
Specifications
| Temperature | |
| Temperature range | 0℃ ～ +180℃ |
| Temperature uniformity | ≦2.0℃ |
| Temperature fluctuation | ±0.5℃ |
| Ramping and soaking rate |
Ramping rate:from+20℃ to +180℃ about45min (No load, the ambient temperature is+25℃) |
| Humidity | |
| Humidity range | 10%R.H～98%R.H |
| Control range | |
| Humidity deviation | ±3.0％RH |
| Humidity uniformity | ±2.0％RH |
| The performance test of temperature and humidity is based on the IEC60068-3 standard. The sensor is located at the outlet of the unit. | |
| Chamber Structure | |
|
Overall structure and chamber was composed of three parts as below. Insulation box, separate refrigeration units, and electrical control cabinet. |
|
| Cabinet size |
Inner box size: W 700 × H 800 × D 700 mm Outer box size: about W 900 × H 1835 × D 1760 mm |
| Incubator |
wall material: high-quality carbon steel with static color spray inner wall material: SUS304 # matte stainless steel plate Insulation materials: rigid polyurethane foam insulation layer + glass fiber. |
| Door | Single door, open the left .Heating wire was installed at the door frames to prevent condensation at low temperatures. |
| Observation window | An observation window (concrete size, design) shall be installed on the door of the box, and the multi-layer hollow electrothermal coating glass can effectively preserve heat and prevent condensation. |
| Lighting device | 11W/AC220V *1 located on observation window |
| Heat booster | High quality nickel chromium alloy wire heater, contactless control.(SSR) |
| Humidifier |
Heating and humidifying method for basin; Stainless steel sheathed heater； Heater control mode: contactless control(SSR) Water level control device, heater anti dry burning device |
| Water outlet hole | Equipped with studio condensing water and condensing water drain hole |
| Electrical Outer and Cord Hole | The left and right sides of the box are one 50mm in diameter, and the rubber isolating plug and cover are equipped at the same time |
| Specimen holder |
Two layers of stainless steel sample holder, adjustable height Load weight 30kg/layer |
| Mobile casters | With mobile casters (with feet cup) |
| ARTU | Total power circuit breaker, over temperature protector |
| Water charging system | Water pump automatic supply |
| Machine noise | From the machine measuring 1m, machine noise is less than 62dB |
Environmental test chamber Standard
GB-2423.1-2008(IEC68-2-1) Test A:Low Temperature Test
GB-2423.2-2008(IEC68-2-2) Test B:High Temperature Test
GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
GJBl50.3-2009(MIL-STD-810D) High Temperature Life Test
GJBl50.4-2009(MIL-STD-810D) Low Temperature Test
GB2423.3-2008(IEC68-2-3) Test Ca:Constant Heat Test
GB2423.4-2008(IEC68-2—30) Test Db:Damp Heat Alternative Test
GJBl50.9-2009(MIL-STD-810D) Damp Heat Test
Product details
Packing and Shipment:
After-sales Service and Training
a;Technical training; equipment operation, routine protection and maintenance, fiducial failure diagnosis
disinfective sum exclusion.
b,Regular tour clothing; pre - presentation problem, time exclusion facility, person crush disease.
c,Technical guidance; an additional price specific service can be carried out according to the needs of
the user
