Temperature Range: | -70 ℃ ~ +150 ℃ | Temp Deviation: | ±0.5℃ |
---|---|---|---|
Workspace Volume: | ID 1500 × IH 1000 × IW 1000 Mm | Exterior Size: | ED 2250 × EH 2035 × EW 1200 Mm |
Door: | Double Door | Humidity Deviation: | 20%R.H~98%R.H |
High Light: | temperature and humidity chamber,humidity and temperature controlled chamber |

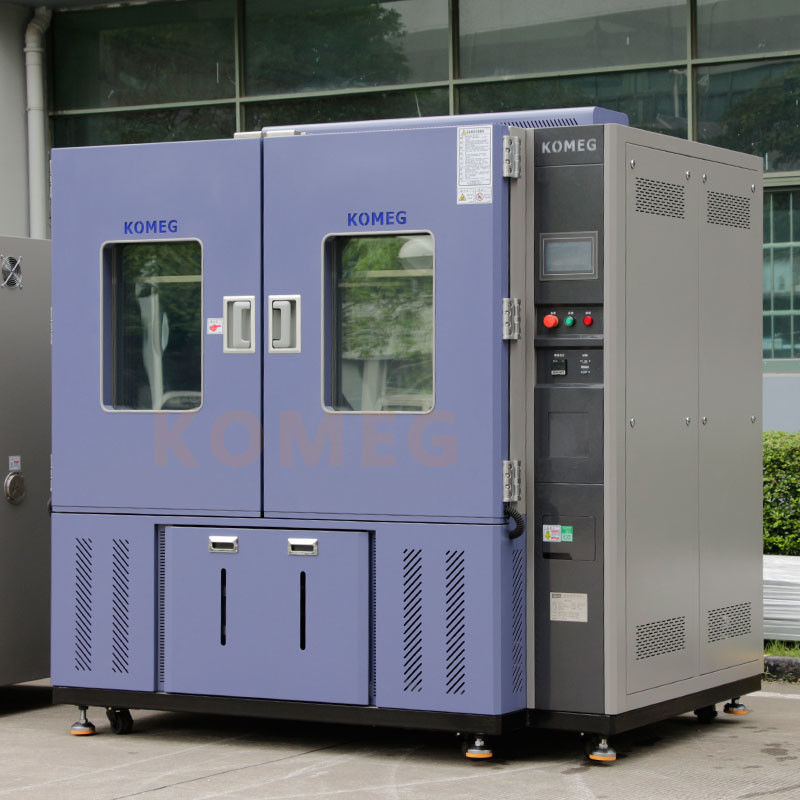

Double door stainless steel 1500L temperature and humidity test chamber
Product Overview
Able to accurately simulate a wide range of complicated natural environments, and is suitable for
reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental
testing equipment and test methods for the basic parameters of electric and electronic products under
the condition of humidity, low temperature, high temperature, and constant heat.
Application
Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical
appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research
institution, inspection and quarantine bureau, university etc...
Specifications
Chamber | ||
Workspace volume | ID 1500 × IH 1000 × IW 1000 mm | |
Exterior size | ED 2250 × EH 2035 × EW 1200 mm | |
Temperature | ||
Temperature range | -70 ℃ ~ +150 ℃ | |
Temp Constancy | ±0.5℃ | |
Temp Uniformity | ±2.0℃ | |
Ramping and soaking rate |
-70℃↑ +150℃ no linear 3℃/min (no-load) +20℃↓ -70℃ no linear 1℃/min (no-load) |
|
Humidity | ||
Humidity range | 20%R.H~98%R.H | |
Temperature and humidity range |
|
|
Humidity deviation |
±3.0%RH(>75%RH) ±5.0%RH(≤75%RH) |
|
Humidity fluctuation | ±2.0%RH | |
The above specifications is measured in the environment of + 25 ℃, temperature and humidity performance measurement comply with related regulation of IEC60068-3 standard; Sensors placed in the air outlet. | ||
Chamber Structure | ||
Overall structure and chamber was composed of three parts as below. Insulation box, separate refrigeration units, and electrical control cabinet. |
||
Insulation box |
wall material: high-quality carbon steel with static color spray inner wall material: SUS304 # matte stainless steel plate Insulation materials: rigid polyurethane foam insulation layer + glass fiber. |
|
Door |
Double door, Heating wire was installed at the door frames to prevent condensation at low temperatures. |
|
Observation window | With 1 set 400 × 400mm (width × height) observation window, multi-hollow electric insulation coated glass prevent condensation effectively | |
Cable port | Φ100mm*2 located on both sides (each*1) with rubber stopper and plastic cover | |
Lighting device | 11W/AC220V *1 located on observation window | |
6Heating |
Quality nickel-chromium alloy wire electric heaters, Non-contact control mode (SRR). |
|
Humidifying |
Steam heating and humidification method; Stainless steel sheathed heater; Heater control: contactless control (SSR); Water level control device, heater anti-dry device. |
|
Water outlet hole | Available for drain the condensate water | |
Thread port | Diameterφ100mm port on the left and right chamber with rubber isolation plug and plastic cover | |
Sample holder | Two layers of stainless steel sample holder,every holder could load 60KG | |
Mobile Casters | Mobile Casters *4 with foot cups | |
Electric control box | Total power circuit breaker, over-temperature protection. | |
Water supply system | Water pump automatic supply |
Environmental test chamber Standard
GB-2423. 1-89(IEC68-2-1)Test A: Low Temperature Test
GB-2423. 2-89(IEC68-2-2)Test B: High Temperature Test
GJB360. 8-87(MIL-STD. 202F) High Temperature Life Test
GBJl50. 3(MIL-STD-810D) High Temperature Test
GJBl50. 4(MIL-STD-810D) Low Temperature Test
GB2423. 3-93(IEC68-2-3)Test Ca: Constant Heat Test
GB2423. 4-93(IEC68-2—30)Test Db: Damp Heat Alternative Test
GJBl50. 9-93(MIL-STD-810D) Damp Heat Test

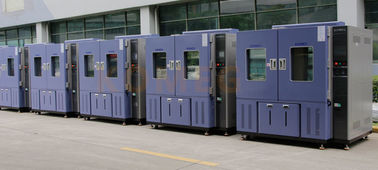

Product details
Packing and Shipment:
After-sales Service and Training
Charge-free warranty will last for 1 year from the date of equipment acceptance. After the warranty
period, the user will be charged properly. Irregular examination and life-long service are available;
Note: If needed, provide 2 operators for on-site installation and training
