Temp Range: | -40℃ ~ +150℃ | Temp Deviation: | ≦ ± 2.0℃ |
---|---|---|---|
Interior Size: | W 700 × H 750 × D 800 Mm | Interior Material: | Stainless Steel |
Exterior Material: | Baked Painting Steel | Power Supply: | AC380V/50H |
High Light: | humidity and temperature controlled chamber,temperature test chamber |
408L Temperature Humidity Test Chamber Products Under Low High Temperature Change
OEM &ODM are welcome , kindly contact :anna@komegtech.com
Application
The product is suitable for inspection. Electrical and electronic products, components, parts and materials
are resistant to moisture under different conditions of temperature and humidity. They can also be used
as adaptability tests for storage, transportation and use in high and low temperature environments.
Temp. range |
-40℃ ~ +150℃
|
Temp. deviation |
≤±2.0℃
|
Temp. fluctuation |
±0.5℃
|
Temp. uniformity |
≦2.0℃Overall average
|
Heating and cooling rate |
+20℃↓ -40℃ 1°C/min (no-load)
-40℃↑ +40℃ 3°C/min (no-load)
|
Chamber size |
Interior size :W 700 × IH 750 × ID 800 mm
Exterior size :W 980 × EH 1936 × ED 1735 mm |
Humidity range |
20%R.H.~98%R.H
|
Door |
Single door,Left open , heating wire is installed at the door frames to prevent
condensation at low temperatures |
Obverstion Window |
With 1 set 460 × 560mm (width × height) observation window,
|
Lighting Device |
1 PC 11W/AS220V installed in the inspection window |
Other specification
Chamber Structure |
|
1. Composed |
Overall structure and chamber was composed of three parts as below
Insulation box, separate refrigeration units, and electrical control
cabinet.
|
2. Door |
Heating wire was installed at the door frames to prevent condensation
at low temperatures. |
3. Cable port |
Φ50mm*2 located on both sides (each*1) with rubber stopper and
plastic cover
|
4. Lighting device |
11W/AC220V *1 located on observation window |
5.Water outlet hole
|
Available for drain the condensate water |
6. Sample holder |
Two layers of stainless steel sample holder.
|
7.Mobile Casters |
Mobile Casters *4 with foot cups |
Feathers

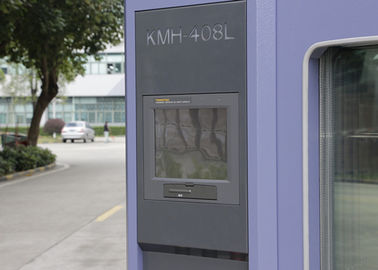

1. The original imported brand temperature and humidity meter, 5.7-inch high-definition LCD touch
display.
2. Real-time monitoring (monitoring controller real-time data, signal point status, actual output status).
3. Curve recording function 3.3.1. The controller can store historical data for 600 days (when the
recording interval is more than 1 minute and the temperature and humidity data are recorded at the
time in the 24-hour operation state), and the uploaded historical control data curve can be played back.
4. The exported file can be viewed or converted to EXCEL format on the computer through the random gift
software.
5. The meter is equipped with RS232/485 port.
7. With the function of automatic calculation, the conditions of temperature and humidity change can be
corrected immediately to make the temperature and humidity control more accurate and stable.

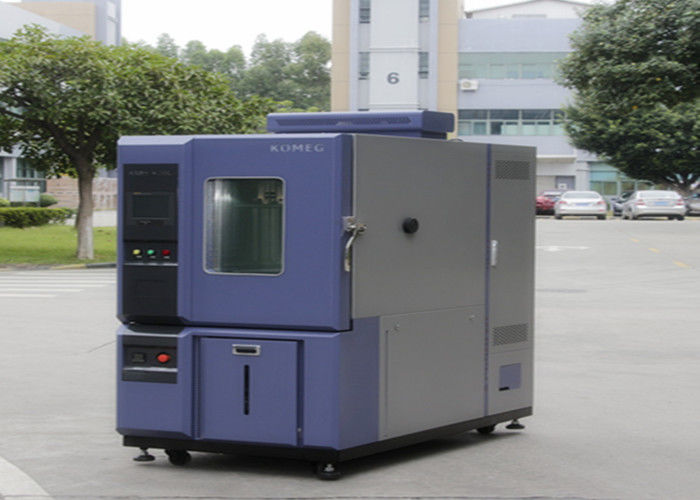

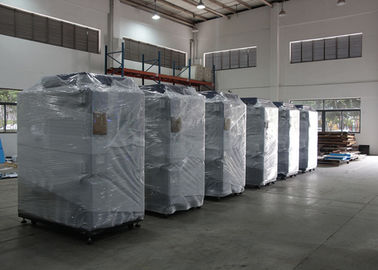

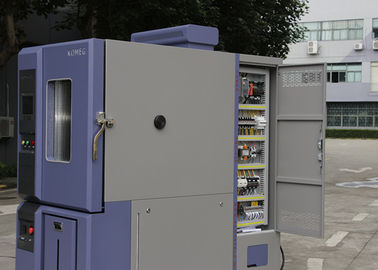

Photos show
