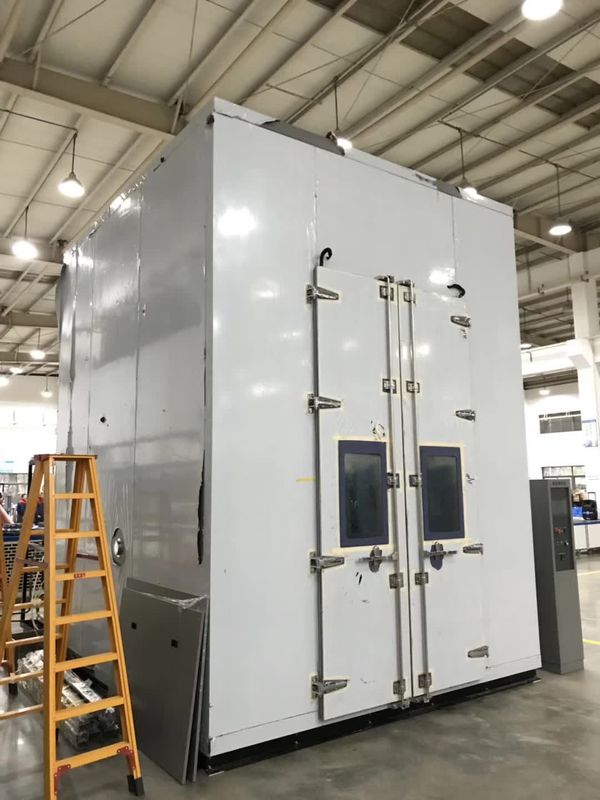

Walk-in Environmental Temperature and Humidity Test Chamber For Large Test Specimens

Walk-in Environmental Temperature and Humidity Test Chamber For Large Test Specimens
Walk-in Environmental Temperature and Humidity Test Chamber For Large Test Specimens
video play

Large Image :  Walk-in Environmental Temperature and Humidity Test Chamber For Large Test Specimens

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: KOMEG
Certification: CE/ROHS/FCC
Model Number: KMHW-13
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 35 working days after received your payment
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability: 50 sets per year
Detailed Product Description
Humidity Range: 10%,20%,30%~95% Temp. Constancy: ±0.5℃
Temp. Range: Maximum:80℃, 120℃; Minimum: -60℃, -50℃, -40℃, -30℃, -20℃, -10℃, 0℃ Humidity Constancy: ±2.5%R.H
Humidity Uniformity: ±5.0%R.H Application: Metal
Interior Chamber Material: SUS#304 Stainless Steel Plate Product Name: High Quality Walk In Environmental Chamber
Usage: Auto Testing Machine Power Supply: AC 3 Phase 380V 60/50Hz
High Light:

walk in humidity chamber

,

walk in climatic chamber



Walk-in Environmental Temperature and Humidity Test Chamber For Large Test Specimens





Applications



Walk-in Environmental Temperature Humidity Test Chamber serve as a test site for large components, assemblies, and finished products in electrical and electronics, aerospace, batteries and automobiles, etc. KOMEG manufactures both Static Walk-In Chambers and Dynamic Walk-In Chambers and can be configured as a temperature chamber or a temperature humidity chamber.

Walk-in Environmental Temperature Humidity Test Chamber are especially developed for large test specimens. Size and design are optimal loading of test specimens. The modular construction and variability in size and equipment is ideally forspecific application.





Parameters


● GB-2423.1-2008(IEC68-2-2) Test B: High Temperature Test

● GB-2423.1-2008(IEC68-2-2) Test B: Low Temperature Test

● GJB360.8-2009(MIL-STD.202F) High Temperature Operating Life Test

● GBJl50.3-2009(MIL-STD-810D) High Temperature Test

● GBJl50.4-2009(MIL-STD-810D) High Temperature Test





Specification of Walk-In Chambers
Model KMHW-13
Volume(m³) 13CBM
Interior Dimensions W3000*H2100*D2050mm
Exterior Dimensions W4160*H2350*D2250mm
Safety Devices(standard) No fuse breaker, over pressure,over heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection
Standard accessories Sight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicator
Control System Balanced Temperature & Humidity Control System
Refrigeration system Water Cooled
Semi-hermetic compressor, single stage or cascade refrigeration system,
CFC free refrigerant(HFC-507 and HFC-23)
Controller Panel 7-inch LCD Touch panel,Chinese or English display selectable
Operation model Program or fix point running
Memory capacity 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles
Accuracy Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit
Input Temp.:pt-100, Humidity:pt-100 or ~5V DCV
Comm.port RS-232 or RS-485 (Softawre is option)
Temp. range Maximum:80 ºC,120 ºC;Minimum:-60 ºC,-50 ºC,-40 ºC,-30 ºC,-20 ºC,-10 ºC,0 ºC
Humidity Range 10%,20%,30%~95%
Temp. constancy ±0.5 ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0 ºC
Humidity uniformity ±5.0%R.H
Ambient Temp. +5 ºC~+35 ºC
Wiring method AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
Heat up time +20 ºC~+80 ºC,Within 60 min
Pull down time +20 ºC~-55 ºC, -40 ºC,-20 ºC,-10 ºC,Within 120 or 90 or 60 min
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane foam
Door size (mm) Single wing:W800*H1800; Double wing:W1600*H1800;
Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available





Features

1) Stainless steel interior
2) Painted galvanized steel exterior for long life
3) MAP service doors are hinged (no tools or lifting)
4) Easy access to frequently checked refrigeration components
5) Reliable steam generator system for humidity applications
6) Adjustable vanes in supply grille allow directing of airflow as needed



Walk-in Environmental Temperature and Humidity Test Chamber For Large Test Specimens 0





Description


Most popular walk-in type

  1. Standard sub-assemblies for quick delivery and low cost
  2. High quality panels manufactured to KOMEG standards.
  3. Standard muti-layer heated window in door(s)
  4. Operation allowable to 120°C(75°C in humidity mode )
  5. Temperature change rates to 10°C/m.



Services:



1,Pre-sales service



Before the purchase, our company will provide customers with detailed product-related information, and welcome you to visit the company and check the goods.



2,After-sales service



After the completion of the transaction, our company will be arranged different after-sales service according to the ease of the goods , and even arrange work engineers on-site service.



3,Warranty period



Our product warranty is 12 months and we are committed to responding within 48 hours of the problem, providing a solution.





Flexibility for structure


The panels used in our chamber are 4” (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior. An assembled box is self-supporting. So that no heavy structural members are required. Different door sizes, flooring upgrades,access ports, and other modifications are possible.



Walk-in Environmental Temperature and Humidity Test Chamber For Large Test Specimens 1

Walk-in Environmental Temperature and Humidity Test Chamber For Large Test Specimens 2
