| High Temp.chamber: | +20℃ ～ +180℃ | Low Temp.chamber: | -10℃ ～ -65℃ |
|---|---|---|---|
| Temp.uniformit: | +-2.0℃ | Exterior Material: | Steel Paint |
| Interior Material: | Stainless Steel Plate(SUS 304#) | ||
| High Light: | thermal shock chamber,environmental testing chambers |
||
Single Door Stainless Steel Plate 3-Zone Thermal Shock Test Chamber
Control Method and Characteristics
It is to use low-temperature and high temperature cold storage hot storage tank, according to the action need to turn on the DAMPER to achieve the fast impact effect. The balance temperature regulation control system (BTC) controls the SSPR in P.I.D. mode, so that the heating capacity of the system is equal to the amount of heat loss, so it can be used in a long-term and stable way.
Specifications
| 1.High Temp.chamber | +20℃ ～ +180℃ |
| 2.High temp.chamber heat up time | +20℃ ～ +180℃ 56min ,no load |
| 3.Low Temp.chamber | -10℃ ～ -65℃ |
| 4.Low Temp.chamber pull down time | -10℃ ～ -65℃ 57min ,no load |
| 5.Temp.uniformit | ±2.0℃ |
| 6.Humidity constancy | ±0.5℃ |
| Structure | |
| 1.Chamber size | W 1500 × H 1000 × D 1000 mm |
| 2.Exterior size | About W 3700 × H 2220 × D 2640 mm (Not contain a prominent part) |
| 3.Chamber Structure | Have independent product test area, high temperature regenerative zone, low temperature storage area |
| 4.Interior material | Stainless Steel Plate(SUS 304#) |
| 5.Exterior material | Steel Paint |
| 6.Insulation material |
High Temp.chamber:24k Glass fibre wool Low Temp.chamber:PU Foam+Glass fibre wool |
| 7.Heater | Open wire electric heater |
|
8.Supply air circulation system |
a.Dongyuan motor b.Stainless steel plate lengthened axle c.Sirocco fan |
| 9.Chamber Door |
Single door a. Plane embedded handle b. Back button: SUS 304# c. Silicone foam strip |
| Refrigeration System | |
| 1.Compressor |
Germany Bock Semi-hermetic compressor or Germany Semi-hermetic compressor |
| 2.Refrigerant | R404A/R23 ,safe and no ozone damage |
| 3.Condenser | Shell and tube condenser ( water cooled ) |
| 4.Evaporator | High efficiency fin type auto load adjusted evaporator, no frost for long time operation. |
| 5.Other Accessories |
High-precision expansion valve, oil separator, desiccant, ect.. Components are imported using internationally renowned brands. |
|
6.Refrigerant flow control |
Automatic adjustment of energy consumption output of the refrigeration system. |
| 7.Refrigeration Technology |
Nitrogen welding, two-stage rotary vane vacuum pump, ensure that the internal cooling system clean and reliable. water tray located at the bottom of the compressor to ensure condensate water drain through pipe freely at the rear of the chamber. |
Standards Met and Implemented:

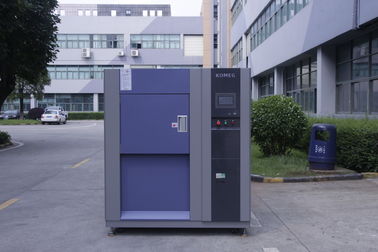

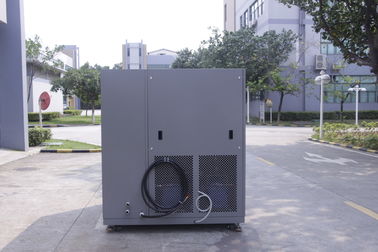

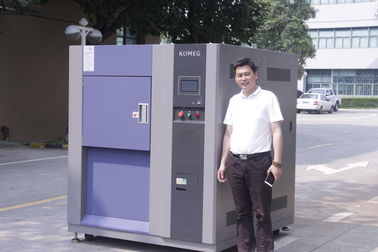

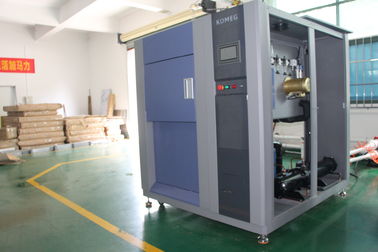

Prouduct Display
