Power: | AC 380±10% 50Hz ,3 Phase 4 Wires +Ground Wires | Ambient Temp: | +5ºC~+35ºC |
---|---|---|---|
Temp Range: | -20℃ ~ +150℃ | Temp Uniformity: | ±2.0℃ |
Exterior Material: | Baked Painting Steel | Insulation Material: | Glass Wool |
High Light: | walk in humidity chamber,walk in climatic chamber |
Lab Walk In Humidity Chamber Stability Temperature Environmental For Testing
OEM &OEM are welcome , pls kindly contact :anna@komegtech.com
Application
The chambers allow customers to undertake long-term stability testing, accelerated testing,
humidity testing .They're installed in facilities around the world where technicians can reach-
in, walk-in or even drive-in to conduct a wide variety of simulation testing. We use the highest
quality components in fabrication to ensure that our environmental rooms continue at top
performance for many years.
Main Technical Specification :
Temp. range |
-50℃~+150℃ (different temperature range as per customer requirements |
Temp. fluctuation |
±0.5℃
|
Temp. uniformity |
±2.0℃
|
Temperature change rate |
Heating up rate:+20℃↑ +150℃ about 50min, no-load
Cooling down rate:+20℃↓ -50℃ about 70min, no-load |
Humidity range |
10%R.H~98%R.H
|
Humidity uniformity |
±3.0%RH(>75%RH)
±5.0%RH(≤75%RH) |
Humidity fluctuation |
±2.0%RH
|
Body dimensions |
Workplace volume: W 2500 × H 2500 × D 3000 mm
Exterior size(about ): W 3050 ×H 2800 ×D 4300 mm |
Door |
Single doors W(900+900)*H2000mm with observation window, please subject
the final design |
Air circulation system |
motor
stainless steel lengthened axis
wind drum wind circulation and air conditioning box air supply
with a filter at the suction port |
Humidity sensor |
Capacitive humidity sensor for humidity control, don’t need to replace the damp cloth.
|
Power off memory |
Power recovery mode can be set as hot start, cold start and stop
|
Pre-set function |
Boot time can be set freely and machine runs automatically when turning on power
|
Software environment |
Windows2000 or Windows XP operating system |
Network Connection |
Can be connected to Ethernet via professional software,
Remote control & assistance function and data collection can be achieved
Multi machine can be controlled simultaneously |
Intelligent humanization function |
Back to normal temperature function, automatic light off function, water shortage prompt
function, keep function, pause function, parameter automatic error
correction unction, over-temperature multiple protection function and so on. |
Power Supply |
AC 3ψ4W 380V 50Hz (R, S, T, N + ground) (voltage fluctuation ≦ ± 10%)
|
More detail information ,pls kindly contact :anna@komegtech.com , Mobile no :+86-18098281986 or Wechat:+86-18029096856

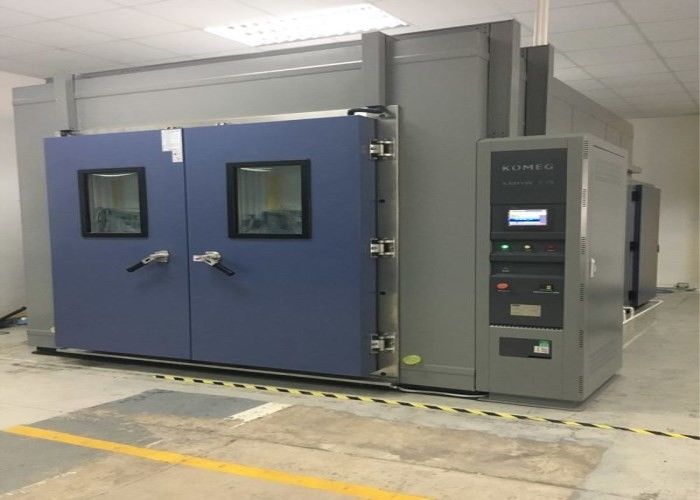

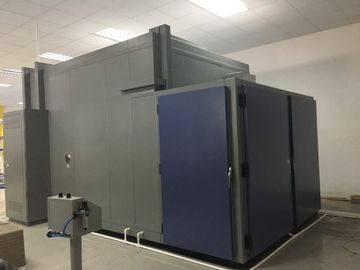

Photos show
