Temperature Range: | -70 ℃ ~ +120 ℃ | Temp Deviation: | ±2.0℃ |
---|---|---|---|
Workspace Volume: | IW 1500 × IH 1000 × ID 1000 Mm | Exterior Size: | EW 2250 × EH 2035 × ED 1200 Mm |
Door: | Single Door, Left Open | Inner Wall Material: | SUS304 # Matte Stainless Steel Plate |
High Light: | humidity and temperature controlled chamber,temperature test chamber |

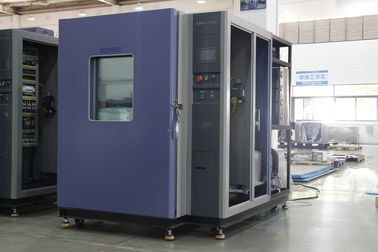

Left open single door 1500L temperature and humidity chamber with cable port
Overview
Able to accurately simulate a wide range of complicated natural environments, and is suitable for
reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental
testing equipment and test methods for the basic parameters of electric and electronic products under
the condition of humidity, low temperature, high temperature, and constant heat.
Application
Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical
appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research
institution, inspection and quarantine bureau, university etc..
Specifications
Chamber | |
Workspace volume | IW 1500 × IH 1000 × ID 1000 mm |
Exterior size | EW 2250 × EH 2035 × ED 1200 mm |
Temperature | |
Temperature range | -70 ℃ ~ +120 ℃ |
Temp Deviation | ±2.0℃ |
Temp Constancy | ±0.5℃ |
Temp Uniformity | ±2.0℃ |
Ramping and soaking rate |
-70℃↑ +150℃ within 55 mins (no-load) +20℃↓ -70℃ within 90 mins (no-load) |
Humidity | |
Humidity range | 20%R.H.~98%R.H |
Control range | |
Humidity deviation |
±3.0%RH(>75%RH) ±5.0%RH(≤75%RH) |
Humidity uniformity | 3.0%RH(no load) |
Humidity deviation | ±2.0%RH |
The above specifications is measured in the environment of + 25 ℃, temperature and humidity performance measurement comply with related regulation of IEC60068-3 standard; Sensors placed in the air outlet. | |
Chamber Structure | |

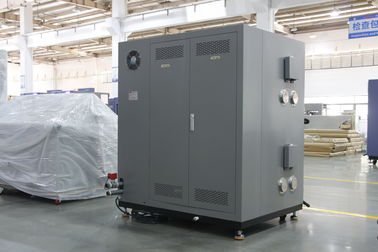

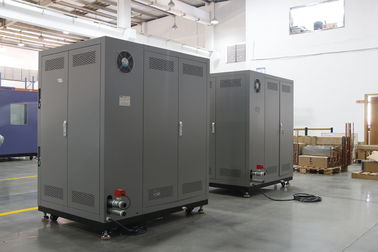

Overall structure and chamber was composed of three parts as below. Insulation box, separate refrigeration units, and electrical control cabinet. |
|
Insulation box |
wall material: high-quality carbon steel with static color spray inner wall material: SUS304 # matte stainless steel plate Insulation materials: rigid polyurethane foam insulation layer + glass fiber. |
Door | Double door,Heating wire was installed at the door frames to prevent condensation at low temperatures. |
Observation window | With 1 set 460 × 560mm (width × height) observation window, multi-hollow electric insulation coated glass prevent condensation effectively |
Cable port | Φ100mm*2 located on both sides (each*1) with rubber stopper and plastic cover |
Lighting device | 11W/AC220V *1 located on observation window |
Heating |
Quality nickel-chromium alloy wire electric heaters, Non-contact control mode (SRR). |
Humidifying |
Steam heating and humidification method; Stainless steel sheathed heater; Heater control: contactless control (SSR); Water level control device, heater anti-dry device. |
Water outlet hole | Available for drain the condensate water |
Sample holder | Two layers of stainless steel sample holder,every holder could load 40KG |
Mobile Casters | Mobile Casters *4 with foot cups |
Electric control box | Total power circuit breaker, over-temperature protection. |
Water supply system | Water pump automatic supply |
Product details
Packing and Shipment:
After-sales Service and Training
Charge-free warranty will last for 1 year from the date of equipment acceptance. After the warranty
period, the user will be charged properly. Irregular examination and life-long service are available;
Note: If needed, provide 2 operators for on-site installation and training
