Product Details:
Payment & Shipping Terms:
|
| Products Name: | Walk-in Constant Temperature And Humidity Chamber | Application: | All Kinds Of Electronic Components To Test The Various Performance Cables In The High And Low Temperature |
|---|---|---|---|
| Material: | Stainless Steel Plate (SUS304) | Refrigeration System: | Water Cooled |
| Test. Chamber: | -60 °C~ +120°C | Controller: | LCD Touch Screen |
| Power Supply: | AC 380V/50Hz 3 Phase 4 Wires+Ground Wires | ||
| High Light: | walk in environmental chamber,walk in humidity chamber |
||

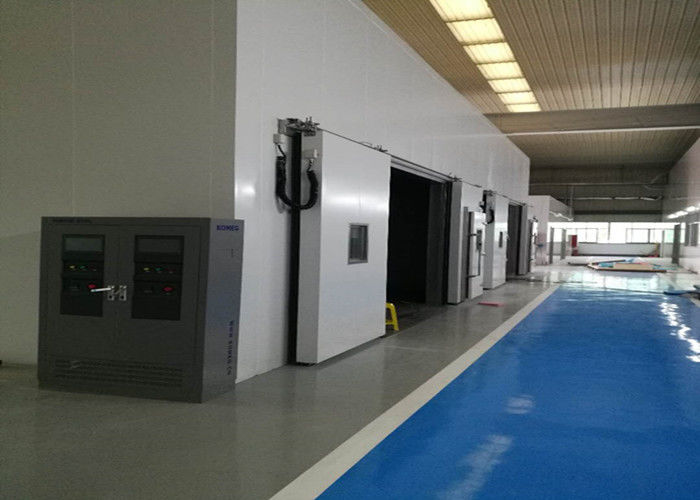

Machinery Equipment Walk-in Constant Temperature and Humidity Chamber Used In Industrial
KOMEG Walk-in Constant Temperature and Humidity Chamber is suitable for aerospace products,electronic instruments,materials,electrical and electronic products,alll kinds of electronic components to test the various performance cables in the high and low temperature,or in hot and humidity environment.
| Walk-in Constant Temperature and Humidity Chamber | |||||||||||||||
| Model | KMHW | ||||||||||||||
| 4 | 6 | 8 | 13 | 17 | 21 | ||||||||||
| Interior size | W(mm) | 210 | 300 | 390 | 300 | 390 | 480 | ||||||||
| H(mm) | 210 | 210 | 210 | 210 | 210 | 210 | |||||||||
| D(mm) | 205 | 205 | 205 | 430 | 430 | 430 | |||||||||
| Exterior size | W(mm) | 325 | 416 | 505 | 505 | 505 | 595 | ||||||||
| H(mm) | 235 | 235 | 235 | 235 | 235 | 235 | |||||||||
| D(mm) | 225 | 225 | 225 | 225 | 450 | 450 | |||||||||
| Temp. range |
-60ºC~+120ºC |
||||||||||||||
| Temperature Deviation | ≤±2.0ºC | ||||||||||||||
| Temperature Fluctuation |
±0.5ºC |
||||||||||||||
| Humidity range | 20~95%R.H | ||||||||||||||
| Humidity uniformity | ±5.0%R.H | ||||||||||||||
| System | |||||||||||||||
| Balanced & Humidity Control System | |||||||||||||||
| Lighting device | One light of 11W/AC220V,located on observation window | ||||||||||||||
| Standard accessory | Observation Window*1,cable port(port^50mm)*1,chamber lamp*1,status indicator light*1 | ||||||||||||||
| Interior material | Stainless steel plate(SUS 304) | ||||||||||||||
| Exterior material | Baked painting steel or stainless steel(SUS304) | ||||||||||||||
| Insulation material | Rigid polyurethane Foam+glass fiber wool | ||||||||||||||
| Refrigeration system |
Water Cooled (HFC-507 and HFC-23 ) Semi-hermetic compressor, single stage or cascade refrigeration system,CFC free referigerant |
||||||||||||||
| Controller |
Panel Operation model Memory capacity Accuracy Input Comm.port |
||||||||||||||
| Ambient Temp. | +5ºC~+35ºC | ||||||||||||||
| Power | AC 380±10%50Hz ,3 phase 4 wires +Ground Wires | ||||||||||||||
Structure Features
Wall material:Top-grade Carbon Steel Plate,Surface electrostatic color Spray processing
Inner wall material:Stainless Steel Plate SUS304
Body insulation material:Rigid polyurethane Foam + glass fiber
Door insulation material:Rigid Polyurethane Foam + Glass fiber
Why Choose KOMEG?
Over 28 Years' Experience
Komeg has been the brand of Komeg Technology Industrial since 1990. We manufacture environmental simulation test equipment for quality-conscious customers. Our factory is located in Dongguan, covering an area of 5,000 square meters, with over 52 employees including 26 R&D engineers.
Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. And Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt spray Chamber
Two wing Drop Tester
Vibration Testing Machine( mechanical and electromagnetic)
|
Packing
|
|
|
Size
|
123 (L) * 456 (W) * 789 (D)
|
|
Weight
|
1.2 T
|
|
Packing Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special requirments.
|
