|Temperature Range:||-40℃ ～ +150℃||Temp Deviation:||≦±2.0℃|
|Workspace Volume:||W 400 × H 400 × D 400 Mm||Exterior Size:||W 600 × H 1550 × D 1220 Mm (Excluding Stand Highlights）|
|Door:||Single Door, Left Open||Inner Wall Material:||SUS304 # Matte Stainless Steel Plate|

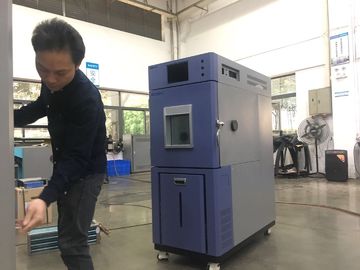

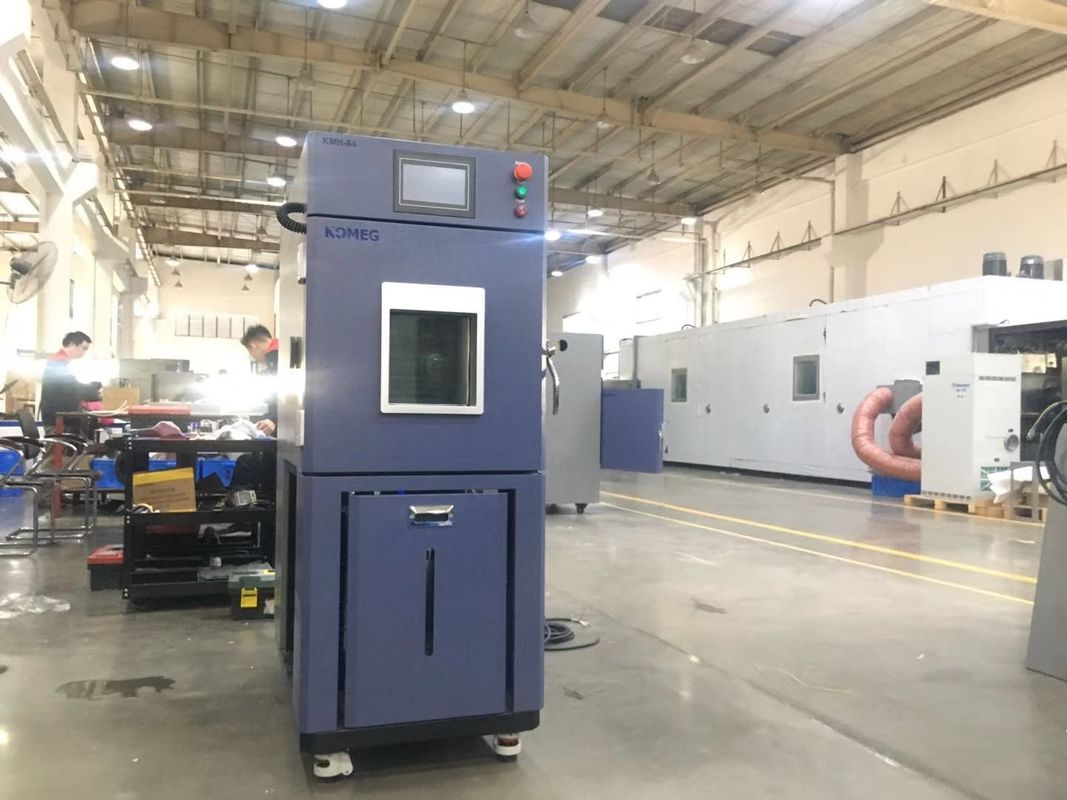

Inside dimension: W 400 × H 400 × D 400 mm 64 L Temperature And Humidity Chamber
Able to accurately simulate a wide range of complicated natural environments, and is suitable for
reliability test in industrial products. Meet GB5126.96.36.199.6-95 standard requirements of environmental
testing equipment and test methods for the basic parameters of electric and electronic products under
the condition of humidity, low temperature, high temperature, and constant heat.
Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical
appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research
institution, inspection and quarantine bureau, university etc..

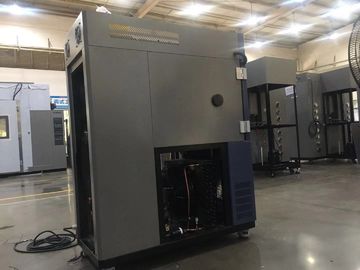

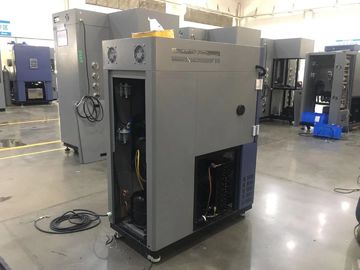

Overall structure and chamber was composed of three parts as below.
Insulation box, separate refrigeration units, and electrical control cabinet..
Inside dimension: W 400 × H 400 × D 400 mm
Outer dimension: W 600 × H 1550 × D 1220 mm (Excluding stand highlights)
wall material: high-quality carbon steel with static color spray
inner wall material: SUS304 # matte stainless steel plate
Insulation materials: rigid polyurethane foam insulation layer + glass fiber.
|Door||left open,Heating wire was installed at the door frames to prevent condensation at low temperatures.|
|Observation window||With 1 set W216 × H230mm (width × height) observation window, multi-hollow electric insulation coated glass prevent condensation effectively|
|Lighting device||1pc LED lighting device,Installed in the window.|
Quality nickel-chromium alloy wire electric heaters,
Non-contact control mode (SRR).
Basin heated humidification
Stainless steel sheathed heater
Heater control: non-contact period, such as pulse width modulation, SSR (solid state relay)
Water level control devices, anti-dry unit heater
|Condensate water outlet||Equipped with studio condensate and unit condensate drain holes.|
|Cable port||Φ50mm*2 located on both sides(each*1) with rubber stopper and plastic cover|
|Sample holder||Stainless steel sample rack 2 layers, height adjustable, carrying weight 30kg / layer.|
|Mobile Casters||Mobile Casters *4 with foot cups|
|Electric control box||Total power circuit breaker, over-temperature protection.|
|Water supply system||Water pump automatic supply|
Packing and Shipment:
After-sales Service and Training
Charge-free warranty will last for 1 year from the date of equipment acceptance. After the warranty
period, the user will be charged properly. Irregular examination and life-long service are available;
Note: If needed, provide 2 operators for on-site installation and training
