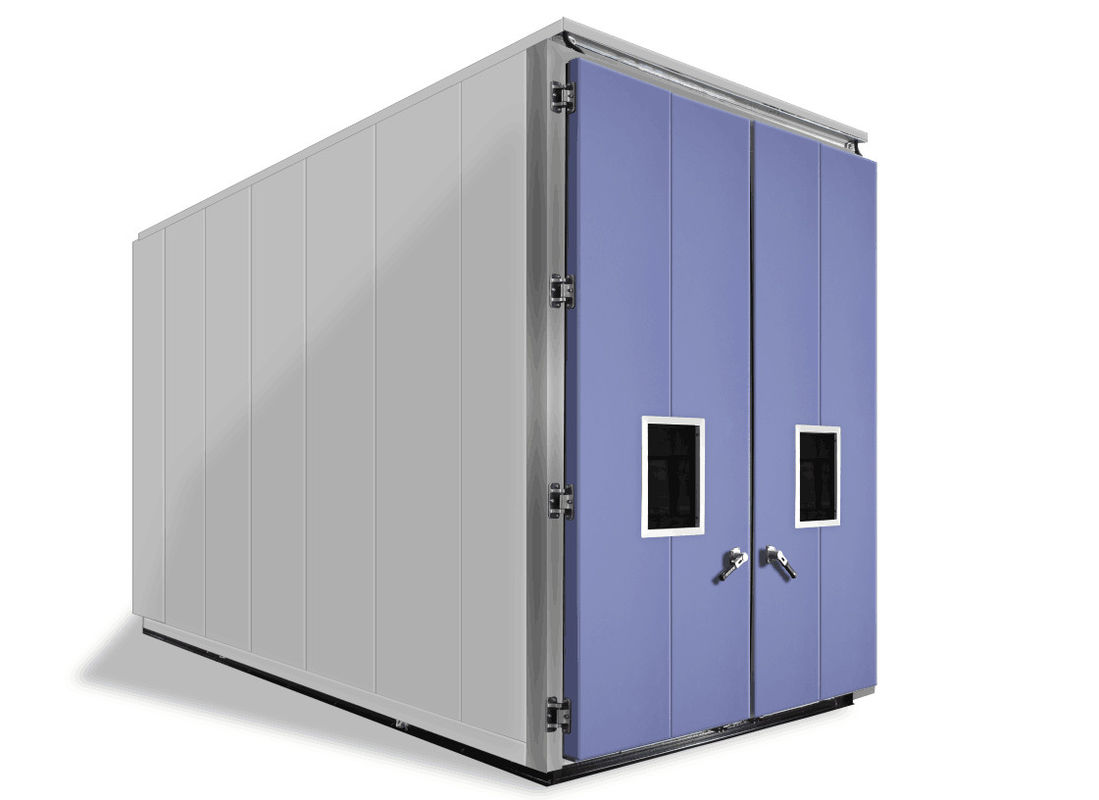

Environmental Simulation Walk - In Climatic Chamber For Optical Cables Testing

Environmental Simulation Walk - In Climatic Chamber For Optical Cables Testing
Environmental Simulation Walk - In Climatic Chamber For Optical Cables Testing
video play

Large Image :  Environmental Simulation Walk - In Climatic Chamber For Optical Cables Testing

Product Details:
Place of Origin: China
Brand Name: KOMEG Walk-In Chamber
Certification: CE/ROHS/FCC/
Model Number: KMHW-53
Payment & Shipping Terms:
Minimum Order Quantity: 1set Constant Environmental Walk-In Chamber
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 42 working days after received your payment
Payment Terms: T/T /C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 50 sets per month
Detailed Product Description
Product Name: Programmable Walk-in Test Chambers Application: Reliability Testing, Research & Development Testing, Failure Analysis
Volume(M3): 52.5CBM Door Size: Single Wing:W80*H180;Double Wing:W160*H180
Temp. Constancy: +/-0.5oc Humidity Constancy: +/-2.5%R.H
H.S. Code: 90321000 Delivery: 42 Working Days
Installation: Yes Based On Your Arrangement Of Room And Board
High Light:

walk in environmental chamber

,

walk in humidity chamber


Environmental Simulation Walk-in Climatic Chamber for Optical Cables Testing



Solid Construction Chambers


Rugged construction with higher temperatures and faster cycling
Welded Walk-In chambers provide wider temperature and humidity ranges.
These welded walk-in chambers consist of one solid piece, simplifying installation. Welded Walk-In chambers are constructed using a zinc-coated exterior, polyurethane enamel finish and a type 304 stainless steel interior. Fiberglass insulated walls are 6” thick with seams that are continuously welded to form a hermetically sealed chamber. Ideal for rapid temperature change rates, higher temperatures or applications that combine multiple environments.




 Main Technical Parameters



Model KMHW-53
Volume(m³) 52.5CBM
Interior Dimensions W2500 x H3500 x D6000mm
Exterior Dimensions Approx. W3050 x H4000 x D8000mm
Safety Devices(standard) No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection
Standard accessories Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator
Control System  Balanced Temperature & Humidity Control System
Refrigeration system Water Cooled
Semi-hermetic compressor, single stage or cascade refrigeration system,
CFC free refrigerant ( HFC-507 and HFC-23 )
Controller Panel 7-inch LCD Touch panel, Chinese or English display selectable
Operation model Program or fix point running
Memory capacity 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles
Accuracy Temp.:0.1% of F.S ± 1 digit  Humidity:0.1% of F.S ± 1 digit
Input Temp.: pt-100, Humidity: pt-100 or ~5V DCV
Comm.port  RS-232 or RS-485 ( Softawre is option)
Temp. range Maximum: 80 ºC,120 ºC;
Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC
Humidity Range 10%, 20%, 30% ~ 95%
Temp. constancy ±0.5 ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0 ºC
Humidity uniformity ±5.0%R.H
Ambient Temp. +5 ºC~+35 ºC
Wiring method AC 380 ± 10% 50Hz ,3 phase 4 wires + Ground Wires
Heat up time  +20 ºC~+80 ºC, Within 60 min
Pull down time  +20 ºC ~ -55 º,  -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60  min
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel ( SUS304)
Insulation material Rigid polyurethane foam
Door size (mm) Single wing: W800 x H1800;  Double wing: W1600 x H1800;
Note:1. We reserve the right to change specifications without prior notice   2.Customized sizes and configurations available




Environmental Simulation Walk - In Climatic Chamber For Optical Cables Testing 0



Environmental Simulation Walk - In Climatic Chamber For Optical Cables Testing 1



Control method and characteristics:


Precision microcomputer control temperature and humidity system, with PID control the refrigerant flow to make the system’s heating / humidification reduction, to achieve low power consumption, energy saving, carbon reduction effect, cooling, heating, humidity control intelligent electronic control, long-term stable use.

Flexibility for structure
The panels used in our chamber are 4” (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior. An assembled box is self-supporting. So that no heavy structural members are required. Different door sizes, flooring upgrades,access ports, and other modifications are possible.

Widest test range, most customizable
