High Precision Walk-in Chamber For Car Refrigerator Computer Telecommunication Systems

High Precision Walk-in Chamber For Car Refrigerator Computer Telecommunication Systems
High Precision Walk-in Chamber For Car Refrigerator Computer Telecommunication Systems High Precision Walk-in Chamber For Car Refrigerator Computer Telecommunication Systems

Large Image :  High Precision Walk-in Chamber For Car Refrigerator Computer Telecommunication Systems

Product Details:

Place of Origin: China
Brand Name: Komeg
Certification: CE
Model Number: KMH-2360

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: rigid foam and wooden box
Delivery Time: 35 days after confirm the order
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 100pcs/day
Detailed Product Description
Maximum Sample Weight: 500kg Maximum Sample Size(mm: 1000*800*1000mm
Controller: Panel: 7-inch LCD Touch Panel, Chinese Or English Display Selectable Motor Power(KVA): 0.85
Interior Dimensions: W2100 X H2100 X D2050mm Applicable Standards: ISO02248-1972
High Light:

walk in environmental chamber


walk in climatic chamber

 Walk-in chamber For Car Refrigerator Computer Telecommunication Systems
OEM& ODM  are welcome ,more information ,pls kindly contact :anna@komegtech.com

uto Car Part Walk-in Stability Chamber,Humidity Chambe
  • Air-evaporator system for low-performance chambers operating at fixed climatic parameters;
  • Reach-in system with external air treatment for standard climatic cycles;
    System with internal air treatment for high performances (fast cycles);


 Suitable for all kinds of electronic products,expecially for products with heating characteristics
Product and loading area should be separated Large-scale production .
  • Design a comprehensive security control: adopt intelligent PID + SST/SCR is reverse the two way synchronization output, including the slope of the advanced control logic.
  • The use of the imported large LCD display Chinese/English microcomputer controller, set the simple, strong function effect.
  • A standard RS-232C communication interface devices.
  • Flexible fixturing able to handle most device types.
  • Modular construction enables easy maintenance.
  • High quality instrumentation can be swapped out for periodic re-calibration.
  • Accurate temperature control, high precision.

Technical Specification





Interior DimensionsW2100 x H2100 x D2050mm
Exterior DimensionsW3250 x H2350 x D2250mm
Safety Devices(standard)

No fuse breaker, over pressure, over heat and over current protection for compressor,
over temperature protection, over load protection for blower, dry heat protection

Standard accessories

Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator

Control System

Balanced Temperature & Humidity Control System

Refrigeration system

Water Cooled
Semi-hermetic compressor, single stage or cascade refrigeration system,
CFC free refrigerant ( HFC-507 and HFC-23 )


Panel: 7-inch LCD Touch panel, Chinese or English display selectable
Operation model : Program or fix point running
Memory capacity:120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles

Temp. range

Maximum: 80 ºC,120 ºC;
Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC

Humidity Range

10%, 20%, 30% ~ 95%

Temp. constancy

±0.5 ºC

Humidity constancy


Temp. uniformity

±2.0 ºC

Humidity uniformity


Chamber structure

Insulation material

Glass wool


High quality nickel-chromium alloy wire electric heaters

Temperature Controller

ST-570 South Korea imported thermostat ST-570
*high precision(0.1%), high performance
*Support multiple input (T / C, RTD, DCV)
*Can finish multiple output and simultaneous output (Max 4 points)
*Simple parameter operation , available text settings
*Supports suppressing system Overshoot function
*Alarm output 1 point
Auxiliary output status operation screen displayed
*Each zone input adjustment function (Max 4 Zone)
To achieve control heating and cooling function
*PID automatic adjustment function (AT Gain)
(AT Gain)
*Supports multiple communication protocols (Modbus, etc.)
*To achieve high quality, high reliability (CE, CUL, ISO, etc.)

Temperature body

K thermoelectric


Ventilator 1 type, displacement of 130 ~ 250m3 / h (from the exhaust fan to the duct
outside the laboratory to be handled by the customer)

Protection System

Over-temperature protection, motor overload protection, buzzer, fault indicator, no fuse switch.

Competitive Advantage
1. Have 27 years experience on environmental chambers and standard environmental chambers, Specializing in environmental simulation equipment, ess, walk-in, environmental stress screening, altitude chambers, temperature chambers, temperature and humidity chambers, environmental test chamber manufacturers, humidity chambers, humidity simulation, temperature cycling, thermal test chambers, solar panel test chambers, thermal shock, climatic/climate chambers, vibration test chambers, drive-in chambers, laboratory test chambers, environment test rooms.
2. Our products are used in all industries and educational sectors and we have an enviable reputation for innovation, quality product and excellent customer support.

KOMEG brand of temperature and humidity test chamber is the ideal simulation test chamber for all heat and cold testing between -40 ºC and 180 ºC temperature range. Well-suited for reliability testing based on current test standards in the temperature range of -40 °C to 150 °C and 10% to 98% RH.Meet all requirements for extreme testing and low temperature alternating climate profiles from -70 °C - 150 °C with humidity.
For more detail information ,kindly contact : anna@komegtech.com whats app ,wechat :+86-18029096856

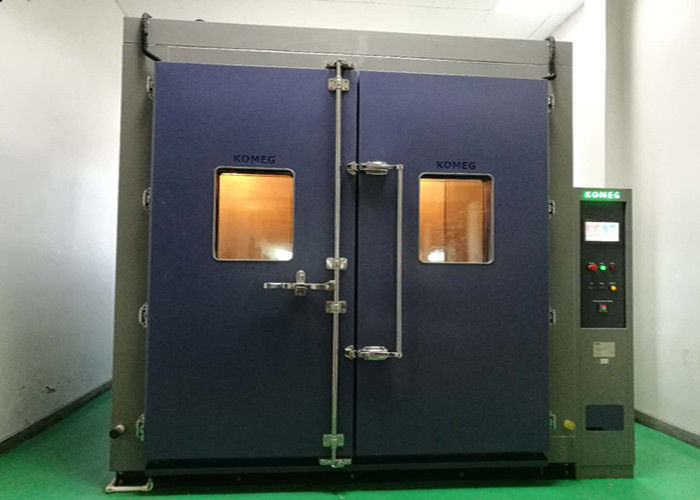

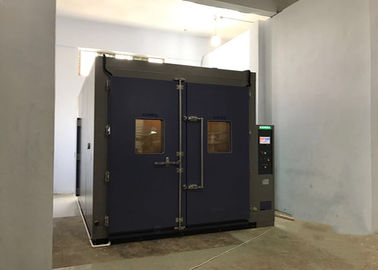

Photo show
High Precision Walk-in Chamber For Car Refrigerator Computer Telecommunication Systems 0
