Walk - In Stability Chamber For Computer Telecommunication Systems Rapid Change Temp

Walk - In Stability Chamber For Computer Telecommunication Systems Rapid Change Temp
Walk - In Stability Chamber For Computer Telecommunication Systems Rapid Change Temp
video play

Large Image :  Walk - In Stability Chamber For Computer Telecommunication Systems Rapid Change Temp

Product Details:
Place of Origin: China
Brand Name: Komeg
Certification: CE
Model Number: KMH-2360
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: rigid foam and wooden box
Delivery Time: 35 days after confirm the order
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 100pcs/day
Detailed Product Description
Maximum Sample Weight: 500kg Maximum Sample Size(mm: 1000*800*1000mm
Controller: Panel: 7-inch LCD Touch Panel, Chinese Or English Display Selectable Motor Power(KVA): 0.85
Interior Dimensions: W2100 X H2100 X D2050mm Applicable Standards: ISO02248-1972
High Light:

walk in environmental chamber

,

walk in climatic chamber


Walk-in Stability Chamber For Computer Telecommunication Systems Rapid Change Temp



More information , pls kindly contact :anna@komegtech.com ,Whatsapp :+86-18098281986





Technical Specification


Model KMHW-14.4CBM

Volume(m³) 14.4 CBM

Interior Dimensions

W2100 x H2100 x D2050mm



Exterior Dimensions

W3250 x H2350 x D2250mm



Safety Devices(standard) No fuse breaker, over pressure, over heat and over current protection for compressor,

over temperature protection, over load protection for blower, dry heat protection
Standard accessories Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator

Control System Balanced Temperature & Humidity Control System

Refrigeration system Water Cooled
Semi-hermetic compressor, single stage or cascade refrigeration system,
CFC free refrigerant ( HFC-507 and HFC-23 )

Heating up&

Cooling down rate


10ºC/per min
Temp. range Maximum: 80 ºC,120 ºC;
Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC
Humidity Range 10%, 20%, 30% ~ 95%

Temp. constancy ±0.5 ºC

Humidity constancy ±2.5%R.H

Temp. uniformity ±2.0 ºC

Humidity uniformity ±5.0%R.H



Chamber structure


Insulation material

Glass wool



Heater High quality nickel-chromium alloy wire electric heaters

Temperature Controller ST-570 South Korea imported thermostat ST-570
*high precision(0.1%), high performance
*Support multiple input (T / C, RTD, DCV)
*Can finish multiple output and simultaneous output (Max 4 points)
*Simple parameter operation , available text settings
*Supports suppressing system Overshoot function
*Alarm output 1 point
Auxiliary output status operation screen displayed
*Each zone input adjustment function (Max 4 Zone)
To achieve control heating and cooling function
*PID automatic adjustment function (AT Gain)
(AT Gain)
*Supports multiple communication protocols (Modbus, etc.)
*To achieve high quality, high reliability (CE, CUL, ISO, etc.)
Temperature body K thermoelectric

ventilator Ventilator 1 type, displacement of 130 ~ 250m3 / h (from the exhaust fan to the duct

outside the laboratory to be handled by the customer)
Protection System

Over-temperature protection, motor overload protection, buzzer, fault indicator, no fuse switch.





OEM& ODM  are welcome


Description
ut Car Part Walk-in Stability Chamber,Humidity Chambe
  • Air-evaporator system for low-performance chambers operating at fixed climatic parameters;
  • Reach-in system with external air treatment for standard climatic cycles;
    System with internal air treatment for high performances (fast cycles);


Application

 Suitable for all kinds of electronic products,expecially for products with heating characteristics
Product and loading area should be separated Large-scale production .

Feature
  • Design a comprehensive security control: adopt intelligent PID + SST/SCR is reverse the two way synchronization output, including the slope of the advanced control logic.
  • The use of the imported large LCD display Chinese/English microcomputer controller, set the simple, strong function effect.
  • A standard RS-232C communication interface devices.
  • Flexible fixturing able to handle most device types.
  • Modular construction enables easy maintenance.
  • High quality instrumentation can be swapped out for periodic re-calibration.
  • Accurate temperature control, high precision.

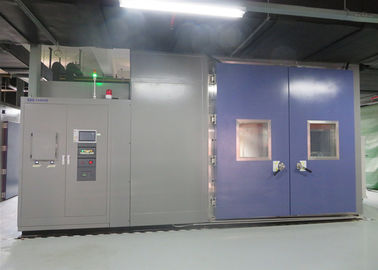

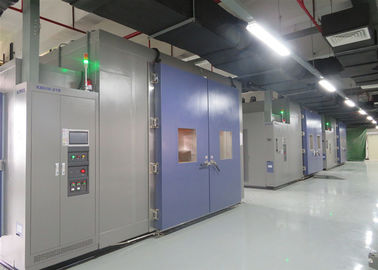

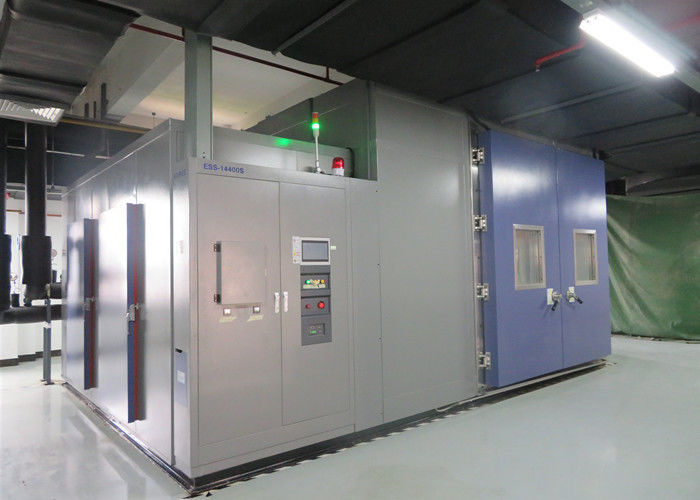

Photos show

Walk - In Stability Chamber For Computer Telecommunication Systems Rapid Change Temp 0
