Stainless Steel Plate Temperature Humidity Chamber 408L With Cable Port

Stainless Steel Plate Temperature Humidity Chamber 408L With Cable Port
Stainless Steel Plate Temperature Humidity Chamber 408L With Cable Port Stainless Steel Plate Temperature Humidity Chamber 408L With Cable Port Stainless Steel Plate Temperature Humidity Chamber 408L With Cable Port Stainless Steel Plate Temperature Humidity Chamber 408L With Cable Port

Large Image :  Stainless Steel Plate Temperature Humidity Chamber 408L With Cable Port

Product Details:
Place of Origin: China
Brand Name: KOMEG
Certification: CE, ISO
Model Number: KMH-408R
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Rigid foam and wooden box
Delivery Time: 30 days after confirm the order
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1, 000~1, 500 SETS / YEAR
Detailed Product Description
Controller: LED Touchscreen 7 Inch Temperature Range: -20℃ ~ +180℃
System: Balanced And Humidity Control System Interior Material: Stainless Steel Plate(SUS304)
Exterior Material: Baked Painting Steel Or Stainless Steel(SUS304) Amibient Temp: +5 °C~+35 °C
High Light:

temperature and humidity chamber

,

humidity and temperature controlled chamber

408L temperature and humidity test chamber With cable port





Product Application



Temperature and humidity test chamber is also called temperature and humidity


testing machine, constant temperature and humidity experimental chamber, programmable wet heat


alternating test chamber, or constant temperature machine. The Temperature and humidity test chamber


is used to inspect equipments quality and test performance of materials in various environments,


and all kinds of materials properties of heat resistance, cold resistance, dry resistance and


moisture resistance, which is fit for Electronics, electrical appliances, mobile phones, communications,


meters, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and


other products quality inspection.





Prouduct Feature

Using the internal pressure box, SUS304# stainless steel tank.



Various protection facilities, configure the wireless remote alarm device


Double door sealing structure, adjustable locking mechanism.


The box adopts LCD LCD touch screen, there is trouble to talk menu, the trouble of the interpretation of



the interpretation of the failure.


The refrigeration compressor and key accessories are all imported from international



brands.Environmental protection cold media refrigeration, in line with international environmental



protection convention requirements.


Various optional accessories: rs232/485 communication interface, record printer, remote temperature



control system (including communication software, computer printing, etc.).





Prouduct  Specifications



  1. Temperature
  1.1 Temperature range -20℃ ~ +180℃
  1.2 Temp Deviation ≦ ± 2.0℃
  1.3 Temp Fluctuation ±0.5℃
  1.4 Temp Uniformity ±2.0℃
  1.5 Ramping and soaking rate

Heating up rate: -20℃↑ +100℃ about 35min (no-load, ambient temperature +25℃)

Cooling rate: 20 ℃to -20℃ about 45min (no-load, ambient temperature +25℃)

  2. Humidity
  2.1 Humidity range 10%R.H~98%R.H
  3.2 Control range
  3.3 Humidity deviation

±3.0%RH(>75%RH)

±5.0%RH(≤75%RH)

  3.4 Humidity uniformity 3.0%RH (no-load)
  3.5 Humidity fluctuation ±2.0%RH
  Temperature and humidity performance test is in accordance with the relevant provisions of the IEC60068 -3 standard measurement; sensor placed in the unit outlet.
  . Chamber Structure


Overall structure and chamber was composed of three parts as below.

Insulation box, separate refrigeration units, and electrical control cabinet.


  • Chamber size

Workspace volume: W 700 × H 750 × D 800 mm

Exterior size: W 900 × H 1785 × D 1820 mm (about)

  2. Insulation box

Wall material: high-quality carbon steel with static color spray

Inner wall material: SUS304 # matte stainless steel plate

Insulation materials: rigid polyurethane foam insulation layer + glass fiber.


  • Door
Single door, left open. Heating wire was installed at the door frames to prevent condensation at low temperatures.
  4.Observation window With observation window W 350×H 500mm, multi-hollow electric insulation coated glass prevent condensation effectively
  5.Lighting device LED Lighting device *1 located on observation window
  6. Heating

High quality nickel-chromium alloy wire electric heaters,

Non-contact control mode(SSR)

  7. Humidifier

Water basin heating and humidification method;

Stainless steel sheathed heater;

Heater control: no-contact control (SSR);

Water level control device, heater anti-dry device.

  8. Water outlet hole Available for drain the condensate water
  9. Cable port Φ50mm*1 located on each side of chamber, with rubber stopper and stainless steel cover
  10. Shelf for samples Two layers of stainless steel sample holder. Adjustable, load capacity 30kg/ layer
  11. Mobile Casters Mobile Casters with foot cups
  12.Electric control box Total power circuit breaker, over-temperature protection.
  13. Water supply system Water pump automatic supply



Environmental test chamber Standard



GJB150.3 high-temperature testing



GJB150.4 low-temperature testing



GJB150.9 humid testing



GB11158 Technical conditions for high-temperature testing box



GB10589-89 Technical conditions for low-temperature testing box



GB10592-89 Technical conditions for high and low temperature testing box



B/T10586-89 technical conditions for humidity testing chamber



GB/T2423.1-2001 Low-temperature testing methods



GB/T2423.2-2001 High-temperature testing methods



B/T2423.3-93 Testing Method for humidity Test Chamber



GB/T2423.4-93 Alternating hot and humid testing method



GB/T2423.22-2001temperature testing method



IEC60068-2-1.1990 low-temperature testing method



IEC60068-2-2.1974 high-temperature testing method





Prouduct Display

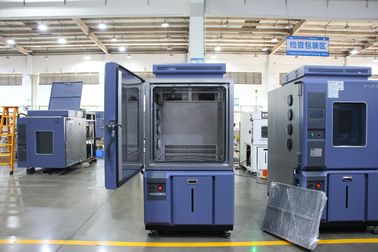

Stainless Steel Plate Temperature Humidity Chamber 408L With Cable Port 0

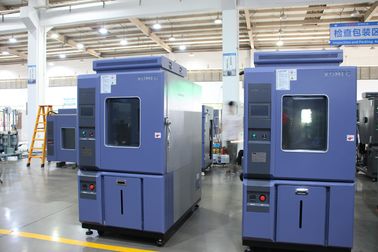

Stainless Steel Plate Temperature Humidity Chamber 408L With Cable Port 1

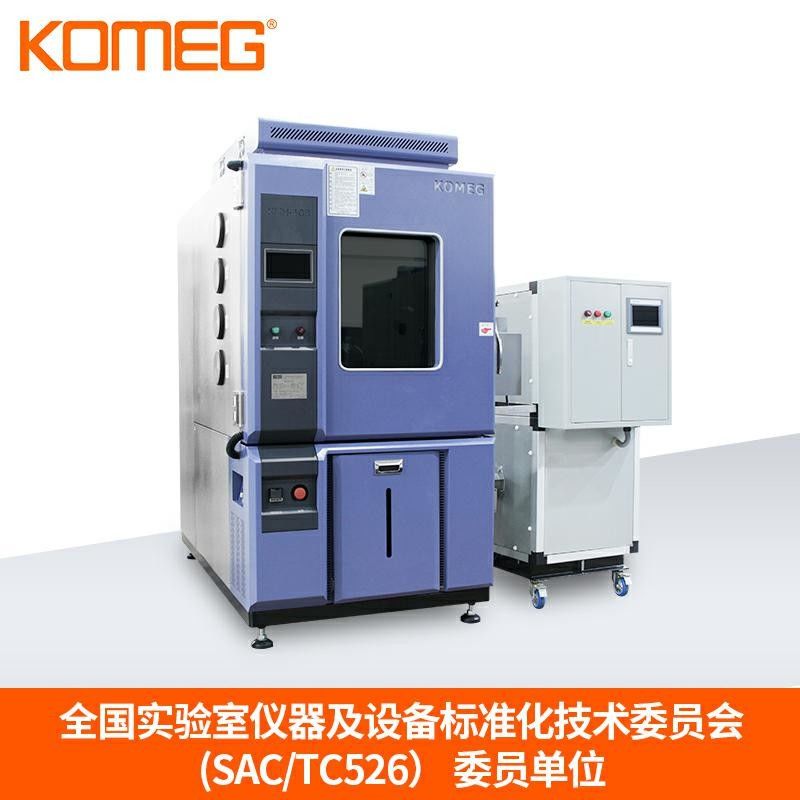

Stainless Steel Plate Temperature Humidity Chamber 408L With Cable Port 2

Packing and Shipment:



(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber

(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.

Stainless Steel Plate Temperature Humidity Chamber 408L With Cable Port 3


Pre-sales service

1) More than 20 years manufacturer experience and 8 years export experience.


2) Acceptable customization for all kinds of special specification products.

3) We value very inquiry sent to us, ensure quick and competitive offer.

4) We put your order into our tight production schedule,ensure your punctual delivery time.

5) We are a sales team, with more than 4 years experience, more professional and reliable.

6) Welcome to view our factory at any moment .


After-sales service

1) We deal with your complains within 24 hours.


2) Training how to install the machine, training how to use the machine.

3) Engineers available to service machinery overseas.

4) All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be

   dedicated to provide high quality service and products for you.

Stainless Steel Plate Temperature Humidity Chamber 408L With Cable Port 4
