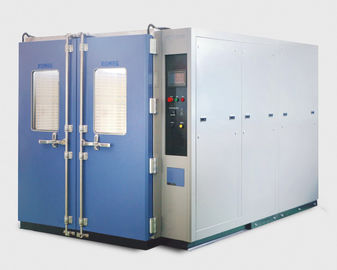

Walk - In Temperature Humidity Chamber For Automotive Components,Electronic Components

China Walk - In Temperature Humidity Chamber For Automotive Components,Electronic Components supplier
Walk - In Temperature Humidity Chamber For Automotive Components,Electronic Components supplier Walk - In Temperature Humidity Chamber For Automotive Components,Electronic Components supplier Walk - In Temperature Humidity Chamber For Automotive Components,Electronic Components supplier Walk - In Temperature Humidity Chamber For Automotive Components,Electronic Components supplier Walk - In Temperature Humidity Chamber For Automotive Components,Electronic Components supplier

Large Image :  Walk - In Temperature Humidity Chamber For Automotive Components,Electronic Components

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: KOMEG Walk-In Chamber
Certification: CE; ISO 9001; ISO 14001
Model Number: KMHW-21

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 35 working days after received your payment
Payment Terms: T/T /C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Programmable Walk-in Test Chambers Application: Reliability Testing, Research & Development Testing, Failure Analysis
Interior Dimensions: W4800 X H2100 X D4300mm Exterior Dimensions: W5950 X H2350 X D4500mm
Temp.range: -60°C~150°C Humidity Range: 20%~95%
Delivery: 35 Working Days

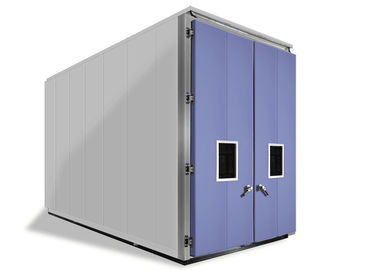

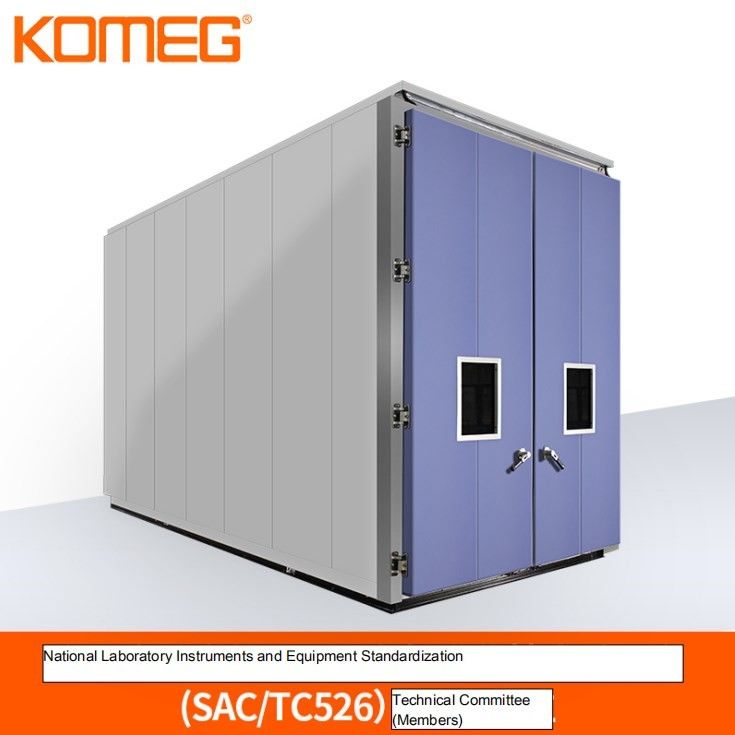

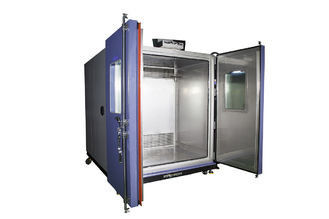

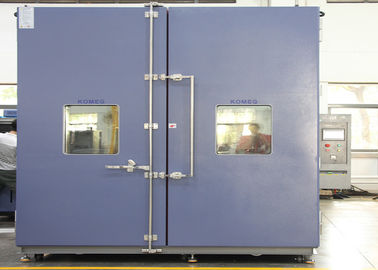

Temperature Humidity Walk-In Chamber



Walk-In Temperature Test Chambers

KOMEG's Modular Walk-In Chambers offers flexibility in designing interior work space with pre-engineered conditioning systems and prefabricated panels that can be assembled to meet virtually any test or size requirement. KOMEG uses modular conditioning systems which include refrigeration, air circulation, electrical components, optional humidification needed to control your chamber environment. These conditioning systems are designed for easy installation without taking up valuable workspace in your chamber by utilizing removable panels for easy access to all systems. Each conditioning system is tested at the factory to meet your test specifications.



Options and accessories:
modular, walk-in



Type:
humidity, temperature, climatic CONTROL




Walk-In Chamber Types Knowledge:


Model  Temperature Range Humidity Range Temperature Change rate Recommended Test / Application
Panel Walk-in Chamber -60°C to +85°C 20% to 95%RH 1 to 2°C/min Temperature Cycling Temp / Humidity Cycling / Storage Testing
Solid Walk-In Chamber -60°C to +150°C 20% to 95%RH 4 to 5°C/min, or faster Temperature Cycling
Temp / Humidity Cycling
Extreme Temp / Humidity Testing
Altitude Testing
Steady State Walk-In Chamber -20°C to +50°C 20% to 95%RH N/A Constant Temperature
Constant Temp / Humidity
Storage Testing





Walk-In Chamber Main Technical Parameters


Model KMHW-21
Volume(m³) 43.3 CBM
Interior Dimensions W4800 x H2100 x D4300mm
Exterior Dimensions W5950 x H2350 x D4500mm
Safety Devices(standard) No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection
Standard accessories Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator
Control System  Balanced Temperature & Humidity Control System
Refrigeration system Water Cooled
Semi-hermetic compressor, single stage or cascade refrigeration system,
CFC free refrigerant ( HFC-507 and HFC-23 )
Controller Panel 7-inch LCD Touch panel, Chinese or English display selectable
Operation model Program or fix point running
Memory capacity 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles
Accuracy Temp.:0.1% of F.S ± 1 digit  Humidity:0.1% of F.S ± 1 digit
Input Temp.: pt-100, Humidity: pt-100 or ~5V DCV
Comm.port  RS-232 or RS-485 ( Softawre is option)
Temp. range Maximum: 80 ºC,120 ºC;
Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC
Humidity Range 10%, 20%, 30% ~ 95%
Temp. constancy ±0.5 ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0 ºC
Humidity uniformity ±5.0%R.H
Ambient Temp. +5 ºC~+35 ºC
Wiring method AC 380 ± 10% 50Hz ,3 phase 4 wires + Ground Wires
Heat up time  +20 ºC~+80 ºC, Within 60 min
Pull down time  +20 ºC ~ -55 º,  -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60  min
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel ( SUS304)
Insulation material Rigid polyurethane foam
Door size (mm) Single wing: W800 x H1800;  Double wing: W1600 x H1800;
Note:1. We reserve the right to change specifications without prior notice   2.Customized sizes and configurations available





KOMEG Temperature Humidity Test Chamber Features:

The refrigerating system is the core/heart part of the test chamber.

For enhance the whole refrigerating system performance, we use professional and advanced copper tube bending machine, this can decrease the welding points over 50%, and decrease right-angles of the tube, Also less welding points can reduce the resistance when the liquid flowing inside, to keep compressor working in higher efficiency, and better energy-saving.

And for welding the copper tube, we use Liquid Nitrogen protection welding technology, this can better protect the tube and keep the cooling system clean.

All this will do good to the compressor.
We use GEA Bock semi-hermetic compressor. According to our over 20 years experiences in this climatic test chambers field, GEA Bock Compressor has excellent performance in refrigerating effect and running stability; has good noise control, also energy-saving.
