Workspace Volumeial: | W600 Mm*H600 Mm*D460 Mm | Exterior Size: | W800 Mm*H1635 Mm*D1485 Mm |
---|---|---|---|
Controller: | LCD Touch Panel | Temperature Range: | Single Stage Refrigeration System |
Temperature Change Rate: | Heat Up Rate: -40℃~+80℃, Average About 45 Min;(no-load) Cooling Rate: +20℃~-40℃, Average About60min;(no-load) | Temperature Deviation: | ≦±2.0℃ |
High Light: | temperature and humidity chamber,humidity and temperature controlled chamber |

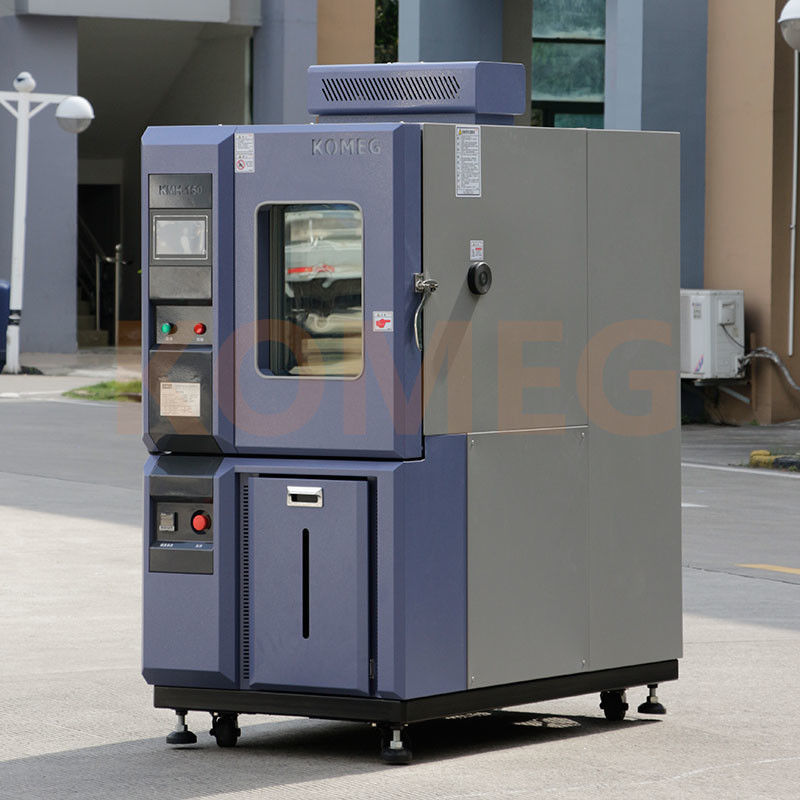

150L -40℃ ~ +80℃ High and low temperature testing chamber with LCD touch panel controller
Sample limits
Testing and storage of samples of flammable, explosive and volatile substances
Testing and storage of corrosive substance samples
Testing or storage of biological samples
Test and storage of strong electromagnetic emission source samples
Application
This series of aging test chamber is suitable for the reliability test of industrial products. It has the
characteristics of temperature control precision and wide control range. The performance conforms to the
criteria GB5170.1.2.5-2017 "High-temperature test equipment for basic parameters verification method of
environmental test equipment for electric and electronic products.
Specifications
Test space | About 150L |
Interior size | W600 mm*H600 mm*D460 mm |
Exterior size |
W800 mm*H1635 mm*D1485 mm(Excluding the protruding part of the machine!) Tips: For external dimensions, please confirm according to the final design! |
Floor area | About 3.4m2;(confirm after place the order) |
Main technical parameters
Test Conditions |
Equipment cooling method: fresh air type Measured at room temperature +25 ° C under no load, the temperature performance test is measured according to the relevant regulations IEC 60068 -3; the sensor is placed at the air outlet of the unit |
Temperature range | -40℃ ~ +80℃ |
Temperature fluctuation | ±0.5℃ |
Temperature uniformity | ≦2.0℃ |
Temperature deviation | ≦±2.0℃ |
Temperature change rate |
Heat up rate: -40℃~+80℃, average about 45min;(no-load) |
Cooling rate: +20℃~-40℃, average about60min;(no-load) |
|
Load | No |
Noise | ≦75 (dB) (The noise detection device is measured 1m away from the door of the chamber) |
Meet the test standard |
GB-2423.1-2008(IEC68-2-1)Test A: Low temperature test method. GB-2423.2-2008(IEC68-2-2)Test B: High temperature test method. GJB360.8-2009(MIL-STD.202F)High temperature life test. GJBl50.3-2009(MIL-STD-810D) High temperature test method. GJBl50.4-2009(MIL-STD-810D)Low temperature test method. |

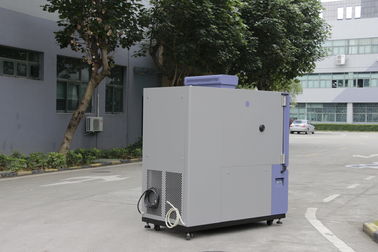

Product details
Packing and Shipment:
After-sales Service and Training
Charge-free warranty will last for 1 year from the date of equipment acceptance. After the warranty
period, the user will be charged properly. Irregular examination and life-long service are available;
Note: If needed, provide 2 operators for on-site installation and training
