Product Details:
Payment & Shipping Terms:
|
| Application: | Laboratory, Testing Center, STC, | Material: | #304 Stainless Steel |
|---|---|---|---|
| Controller: | 7inch LED Touchscreen Controller | Warranty: | 12 Months Free Parts Warranty |
| Delivery Time: | 20 Working Days Upon The Deposit | Trade Terms: | EXW, FOB, CIF, DDU, DDP |
| Interior Dimension(mm): | 400W X 400H X 400D | Temp. Range: | -40°C ～150°C |
| High Light: | temperature and humidity chamber,temperature test chamber |
||

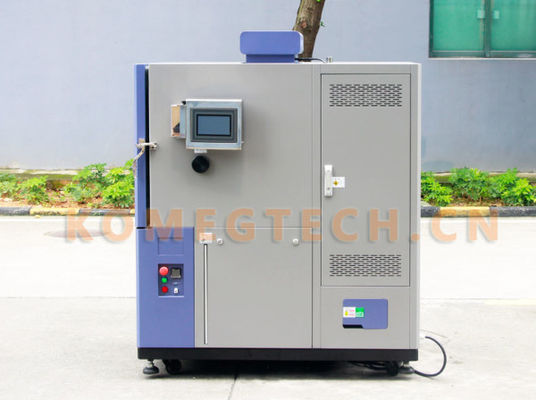

CE Standard Energy Saving Laboratory Temperature Humidity Environmental Test Chambers
1. Application:
KOMEG Environmental Systems supplies Temperature / Humidity Chambers to program controlled conditions of combined temperature and relative humidity.
All chamber components offer maximum resistance to the corrosive effects of moisture combined with extreme conditions. Consult the AES design engineering services for special temperature and humidity conditions.
2. Products CE Certificate and Features:
1) Stainless steel interior
2) Painted galvanized steel exterior for long life
3) MAP service doors are hinged (no tools or lifting)
4) Easy access to frequently checked refrigeration components
5) Reliable steam generator system for humidity applications
6) Adjustable vanes in supply grille allow directing of airflow as needed
The KMH-L Series use a single-stage mechanical refrigeration system that can produce dry bulb temperatures down to -158°F / -70°C.
Rapid response heaters are baffled to eliminate direct radiation to the test items at high temperatures of up to +302°F / +150°C.
Chamber liners are hermetically sealed and made of heliarc welded stainless steel.
4. Main Technical Specifications Quick Know:
| Environmental Temperature and Humidity Chamber | ||||
| Secifications ( at +20ºC room temp. Or+25ºC water temp with empty load) | ||||
| Model | KMH-R series | KMH-L series | KMH-S series | |
| 64R | 64L | 64S | ||
| Temp. range | -20ºC~150ºC | -40 ºC~+150ºC | -70ºC~+150ºC | |
| Interior sizel | W(mm) | 400 | 400 | 400 |
| H(mm) | 400 | 400 | 400 | |
| D(mm) | 400 | 400 | 400 | |
| Exterior size | W(mm) | 600 | 600 | 600 |
| H(mm) | 1526 | 1526 | 1526 | |
| D(mm) | 1200 | 1200 | 1200 | |
| Power(KW) | 4.5 | 4.5 | 4.5 | |
| Weight(KG) | 150 | 150 | 150 | |
| Humidity uniformity | ±3.0%R.H | ±3.0%R.H | ±3.0%R.H | |
| Heat up time | -20ºC~+100ºC,within 35 min | -40ºC~+100ºC, within 45 min | -70ºC~+100ºC,within 60 min | |
| Pull down time | +20ºC~-20ºC, within 45 min | +20ºC~-40ºC , within 60 min | +20ºC~-70ºC,within 80 min | |
| Standard accessories | Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m | |||
| Safety device (standard) | No fuse breaker, over pressureover heat and over current protection for compressor, | |||
| Over temp. protect, over load protect of blower, dry heat protection | ||||
| Control System | Balanced Temperature & Humidity Control System | |||
| Refrigeration system | Air Cooled (Water Cooled Type is option) | |||
| Hermetic compressor,Single stage refrigeration system | ||||
| CFC-Free refrigerant(HFC-507/HFC-23) | ||||
| Controller | Panel:7-inch LCD Touch panel, Chinese or English display selectable | |||
| Operation model :Program or fix point running | ||||
| Memory capacity :120programs,1200steps, | ||||
| All repeat 999 cycles, part repeat 99 cycles | ||||
| Humidity Range | 20~98%R.H | |||
| Temp. constancy | ±0.5ºC | |||
| Humidity constancy | ±2.5%R.H | |||
| Temp. uniformity | ±2.0ºC | |||
| Interior material | Stainless Steel Plate(SUS 304) | |||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||
| Ambient Temp. | +5ºC~+35ºC | |||
| Wiring method | AC 380±10%50Hz ,3 phase 4 wires +Ground Wires | |||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | ||||
5. Temperature and Humidity Testing Graph:
