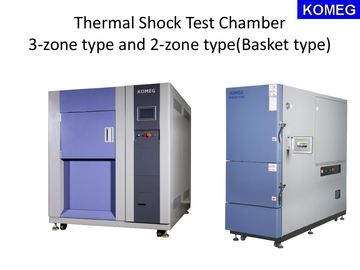

Two Zone / Three Zone Environmental Simulation Thermal Shock Test Chamber For Car Accessary Testing

Two Zone / Three Zone Environmental Simulation Thermal Shock Test Chamber For Car Accessary Testing
Two Zone / Three Zone Environmental Simulation Thermal Shock Test Chamber For Car Accessary Testing Two Zone / Three Zone Environmental Simulation Thermal Shock Test Chamber For Car Accessary Testing

Large Image :  Two Zone / Three Zone Environmental Simulation Thermal Shock Test Chamber For Car Accessary Testing

Product Details:
Place of Origin: guangdong
Brand Name: KOMEG
Certification: CE
Model Number: KTS-A Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece Thermal Shock test Chamber
Price: USD2000-USD20000/ piece
Packaging Details: Strong Plywood Case, Meet International Standard
Delivery Time: 25 to 35 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pieces a year
Detailed Product Description
Products Name: Thermal Shock Test Chamber Low Temp. Chamber: -55ºC~-10ºC
Test. Chamber: +60°C~ +200°C ,Within 25 Min Test. Chamber: -40 °C~ +150°C
Refrigeration System : Water Cooled Exterior Material: Stainless Steel Plate
Power: AC 380±10%50Hz Controller: LCD Touch Panel
High Light:

temperature shock test chamber

,

environmental testing chambers



Two Zone / Three Zone Environmental Simulation Thermal Shock Test Chamber For Car Accessary Testing





Description and Application

As we know that thermal shock occurs when a thermal gradient causes different parts of an object to expand by different amounts. This differential expansion can be understood in terms of stress or of strain, equivalently. At some point, this stress can exceed the strength of the material, causing a crack to form. If nothing stops this crack from propagating through the material, it will cause the object's structure to fail. Normally we use thermal shock test equipment to test how much amount can a product withstand thermal shock.



Thermal shock testing exposes products to alternating low and high temperatures to accelerate failures caused by temperature cycles or thermal shocks during normal use. The transition between temperature extremes occurs very rapidly, greater than 15 °C/min.



Working Principle
There are three chambers used to perform thermal shock testing, high-temperature chamber, low-temperature chamber and test chamber. Sample is placed in the test chamber, more extreme temperature than test temperature can be set in high-temperature chamber and low-temperature chamber. When doing low temperature testing, cold chamber door open, and low-temperature chamber working together with test chamber.


When converted into high-temperature test, cold chamber door closed, hot chamber door are opened, and test chamber working together with high-temperature chamber. Conversion of mechanical action (transferring from high temperature to low temperature or low temperature to high temperature) can be completed in less than 1second, and the temperature can be quickly stabilized.
During the whole test, test sample is no need to be moved, and without any human intervention.





Standards Met and Implemented:


GB/T2423.1.2
GB10592-89
GJB150



Specifications:





3 Zone Thermal Shock Test Chamber
Specifications Note:1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available
Model KTS-A Series
72A 100A 150A 200A 252A 300A 480A
Interior size W(mm) 450 500 600 670 700 800 800
H(mm) 400 450 500 600 600 600 800
D(mm) 400 450 500 500 600 650 750
Exterior size W(mm) 1490 1540 1640 1720 1750 1850 1850
H(mm) 1790 1840 1890 2000 2000 2000 2200
D(mm) 1600 1700 1830 1850 1930 1980 2500
Test weight(KG) 5 10 12 15 18 20 20
Low Temp. chamber -55ºC~-10ºC
Pre-heat time +20ºC~-55ºC ,Within 60 min
Test. chamber -40ºC~+150ºC
High Temp. chamber +60ºC~+200ºC
Pre-heat time +60ºC~+200ºC ,Within 20 min
Recovery time High-Temp Exposure 30 min
Low-Temp Exposure 30 min
Recovery time within 5 min
Safety device No fuse breaker, over pressureover heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection
Standard accessory Cable port(portΦ50mm)*1, shelves*2
Interior material Stainless steel plate(SUS 304)
Exterior material Baked painting steel or stainless steel(SUS304)
Insulation material Rigid polyurethane Foam+glass fiber wool
Refrigeration system Water Cooled
Semi-hermetic compressor, cascade refrigeration system, CFC free refrigerant(HFC-507 and HFC-23)
Controller Panel:7-inch LCD Touch panel,Chinese or English display selectable
Operation model:Program or fix point running
Memory capacity:120programs,1200steps,all repeat 999cycles,part repeat 99 cycles.
Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit
Input:Temp.:pt-100 Humidity:pt-100 or ~5V DCV
Ambient Temp. +5ºC~+35ºC
Power AC 380±10%50Hz ,3 phase 4 wires +Ground Wires



3 Zone Thermal Shock Test Chamber
Specifications Note:1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available
Model KTS-B Series
72B 100B 150B 200B 252B 300B 480B
Interior size W(mm) 450 500 600 670 700 800 800
H(mm) 400 450 500 600 600 600 800
D(mm) 400 450 500 500 600 650 750
Exterior size W(mm) 1490 1540 1640 1720 1750 1850 1850
H(mm) 1790 1840 1890 2000 2000 2000 2200
D(mm) 1600 1700 1830 1850 1930 1980 2500
Test weight(KG) 5 10 12 15 18 20 20
Low Temp. chamber -70ºC~-10ºC
Pre-heat time +20ºC~-70ºC ,Within 60 min
Test. chamber -55ºC~+150ºC
High Temp. chamber +60ºC~+200ºC
Pre-heat time +60ºC~+200ºC ,Within 20 min
Recovery time High-Temp Exposure 30 min
Low-Temp Exposure 30 min
Recovery time within 5 min
Safety device No fuse breaker, over pressureover heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection
Standard accessory Cable port(portΦ50mm)*1, shelves*2
Interior material Stainless steel plate(SUS 304)
Exterior material Baked painting steel or stainless steel(SUS304)
Insulation material Rigid polyurethane Foam+glass fiber wool
Refrigeration system Water Cooled
Semi-hermetic compressor, cascade refrigeration system, CFC free refrigerant(HFC-507 and HFC-23)
Controller Panel:7-inch LCD Touch panel,Chinese or English display selectable
Operation model:Program or fix point running
Memory capacity:120programs,1200steps,all repeat 999cycles,part repeat 99 cycles.
Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit
Input:Temp.:pt-100 Humidity:pt-100 or ~5V DCV
Ambient Temp. +5ºC~+35ºC
Power AC 380±10%50Hz ,3 phase 4 wires +Ground Wires





3 Zone Thermal Shock Test Chamber
Specifications Note:1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available
Model KTS-D Series
72D 100D 150D 200D 252D 300D
Interior size W(mm) 450 500 600 670 700 800
H(mm) 400 450 500 600 600 600
D(mm) 400 450 500 500 600 650
Exterior size W(mm) 1490 1540 1640 1720 1750 1850
H(mm) 1790 1840 1890 2000 2000 2000
D(mm) 1600 1700 1830 1850 1930 1980
Test weight(KG) 5 10 12 15 18 20
Low Temp. chamber -80ºC~-10ºC
Pre-heat time +20ºC~-80ºC ,Within 60 mins
Test. chamber -65ºC~+150ºC
High Temp. chamber +60ºC~+200ºC
Pre-heat time +60ºC~+200ºC ,Within 20 min
Recovery time High-Temp Exposure 30 min
Low-Temp Exposure 30 min
Recovery time within 5 min
Safety device No fuse breaker, over pressureover heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection
Standard accessory Cable port(portΦ50mm)*1, shelves*2
Interior material Stainless steel plate(SUS 304)
Exterior material Baked painting steel or stainless steel(SUS304)
Insulation material Rigid polyurethane Foam+glass fiber wool
Refrigeration system Water Cooled
Semi-hermetic compressor, cascade refrigeration system, CFC free refrigerant(HFC-507 and HFC-23)
Controller Panel:7-inch LCD Touch panel,Chinese or English display selectable
Operation model:Program or fix point running
Memory capacity:120programs,1200steps,all repeat 999cycles,part repeat 99 cycles.
Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit
Input:Temp.:pt-100 Humidity:pt-100 or ~5V DCV
Ambient Temp. +5ºC~+35ºC
Power AC 380±10%50Hz ,3 phase 4 wires +Ground Wires



Main features of Thermal test chamber:
1. Programmable Controller with RS232C, 7 LCD touch panel control
2. Stainess steel Interior, galvanized steel sheet exterior
3.2PCS stainless steel loading shelves free
4. Multipane viewing window with heater
5. 50mm diameter feed-through port
6. Floor stand with castors.



Packaging:

Climatic thermal shock test chamber are covered with air bubble film before put them into the strong plywoodcase, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, crash-proof, etc.
