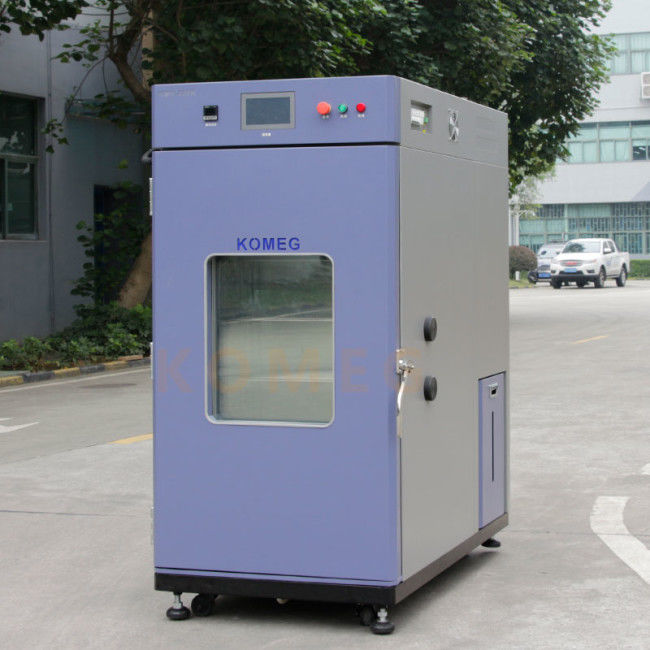

Programmable Lab Heating and Drying industrial drying oven with Air Circulation

Programmable Lab Heating and Drying industrial drying oven with Air Circulation
Programmable Lab Heating and Drying industrial drying oven with Air Circulation
video play

Large Image :  Programmable Lab Heating and Drying industrial drying oven with Air Circulation

Product Details:
Place of Origin: China
Brand Name: KOMEG
Certification: CE
Model Number: KOV-429
Payment & Shipping Terms:
Minimum Order Quantity: 1 units
Price: negotiation
Packaging Details: Packed in carton firstly, and then reinforced with plywood case for outer packing
Delivery Time: 60 working days after received 60% deposit
Payment Terms: T/T /C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Detailed Product Description
Types: Drying Ovens Material: Stainless Steel
Temp. Range: 50℃~250℃ Temp. Constancy: ±1.0℃
Temp. Uniformity: ±2.0℃ Warranty: 1 Year
High Light:

laboratory drying oven

,

vacuum drying oven

KOMEG Programmable Lab Heating and Drying Ovens with Air Circulation





5.1 Over View

These heating and drying ovens are available in 7 sizes with a comprehensive range of accessories, e.g. loading trolleys, temperature controller etc. They can be used globally for heating and drying processes in the production and research.



This series of reliability test for industrial products / production, with the features of high temperature control precision and wide control range, performance indicators in line with GB5170.2.3.5.6-95 "electric and electronic products environmental testing equipment Inspection methods for basic parameters of high-temperature test equipment" and meet the standard.







5.2 Description



Industrial ovens are heated chambers used for a variety of industrial applications, including drying, curing, or baking components, parts or final products. Industrial ovens can be used for large or small volume applications, in batches or continuously with a conveyor line, and a variety of temperature ranges, sizes and configurations.

Such ovens are used in many different applications, including chemical processing, food production, and even in the electronics industry, where circuit boards are run through a conveyor oven to attach surface mount components.



5.3 About KOMEG:



As a professional manufacturer and the best brand climatic chamber in China, KOMEG specialized in Environmental testing equipment for quality conscious people since 1990. Our products are CE approved and we are the supplier for ,UL, and world top 500 companies.









5.4 Specifications for Drying Oven



Specifications of drying oven
Model KOV-50 KOV-100 KOV-200 KOV-290 KOV-500
Interior size (W*H*D)mm 400*350*350 450*500*450 600*600*600 600*950*500 800*1050*600
Exterior size (W*H*D)mm 1010*650*760 1110*800*1100 1260*900*1100 870*1590*640 1160*1760*880
Capacity(KVA) 3.5 3.5 4.5 4.5 6
Power AC220V±10% 1Φ 50Hz/60Hz AC 380V±10% 3Φ4wire 50Hz/60Hz
Temp. range 50 ºC~ 200 ºC( 300 ºC)
Temp. constancy ±1.0 ºC
Temp. uniformity ±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC)
Heat up time 50 ºC to 200 ºC within 50 min
Interior material Stainless steel plate
Exterior material Painted Stainless steel plate
Insulation material Glass wool
Safety devices No fuse breaker, over temp protection, ceramic fuse
Accessories Recorder, insolating layer
Note: 1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available





Specifications
Model KOV-600 KOV-720 KOV-1000 KOV-1800
Interior size (W*H*D)mm 1000*1000*600 900*1000*800 1000*1000*1000 1600*1400*600
Exterior size (W*H*D)mm 1360*1720*880 1300*1750*1000 1300*1750*1000 1600*1940*1200
Capacity(KVA) 6.5 7.5 8.5 9.5
Power AC 380V±10% 3Φ4wire 50Hz/60Hz
Temp. range 50 ºC~ 200 ºC( 300 ºC)
Temp. constancy ±1.0 ºC
Temp. uniformity ±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC)
Heat up time 50 ºC to 200 ºC within 50 min
Interior material Stainless steel plate
Exterior material Painted Stainless steel plate
Insulation material Glass wool
Safety devices No fuse breaker, over temp protection, ceramic fuse
Accessories Recorder, insolating layer
Note: 1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available



Main technical specifications

Temp. fluctuation: ≤ ±0.5ºC
Temperature deviation: RT ~ +200 ºC ≤ ±2.0 ºC
+200 ºC~ +300 ºC ≤ ±3.0 ºC
Temp. constancy: ±1.0 ºC
Heat up time: 50 ºC to 200 ºC within 50 min
Control temperature means: Forced hot air circulation, ventlation mode
Interior material: Stainless Steel Plate
Exterior material: Baked painting steel



5.6 Factory Pictures



Programmable Lab Heating and Drying industrial drying oven with Air Circulation 0





After-sale Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
