Lab Thermal Shock Test Chamber / Hot Cold Climate Impact Test Machine

Lab Thermal Shock Test Chamber / Hot Cold Climate Impact Test Machine
Lab Thermal Shock Test Chamber / Hot Cold Climate Impact Test Machine
video play

Large Image :  Lab Thermal Shock Test Chamber / Hot Cold Climate Impact Test Machine

Product Details:
Place of Origin: China
Brand Name: KOMEG
Certification: CE, ISO
Model Number: TST-360A
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Packed with film firstly, and then reinforced with wooden case for outer packing
Delivery Time: 50 days upon your deposit
Payment Terms: T/T, negotiable
Supply Ability: 1, 000 SETS / YEAR
Detailed Product Description
Application: Indoor, Lab, Testing Center In LED Industry Recovery Time: Exposure 30 Min
Conversion Time: 3 Min Internal Volume: 316L
Shock Temp. Range: -40ºC~+150ºC Cooling Method: Water Cooled
High Light:

temperature shock test chamber

,

thermal shock chamber

Thermal shock test chamber/Hot Cold Climate Impact Test Machine



1. Application of thermal shock chamber


1.1 Application:



Thermal shock test chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment , that is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm. Application objects, including metal, plastic, rubber, electronics ... and other materials can also be used as a basis to improve their products or reference.



1.2 ​Corresponding standard:

1 GB/T2423.1-1989 low-temperature testing method
2 GB/T2423.2-1989 high-temperature testing method
3 GB/T2423.22-1989 change temperature test
4 GJB150.5-86 temperature impact test
5 GJB360.7-87 temperature impact test
6 GJB367.2-87 405 temperature impact test


1.3 KOMEG offers several configurations of thermal shock chambers capable of meeting a wide variety of testing needs.
Vertical, two zone chamber has hot and cold zones that can be controlled independently.

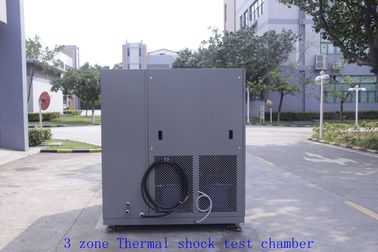

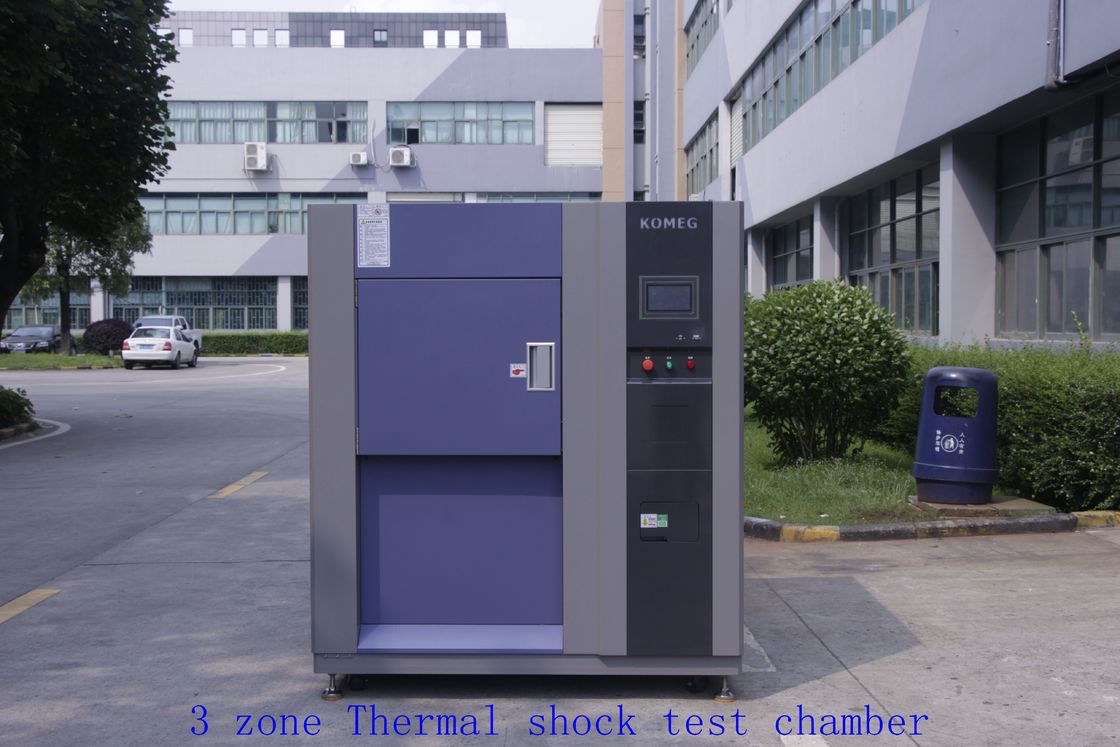

Horizontal, three zone thermal shock chamber utilizes controlled areas for hot, ambient and cold temperatures.
Double duty thermal shock chambers from KOMEG are designed with hot zones above and below the cold zone and a two compartment product carrier that simultaneously moves products between the hot and cold zones.



2. More Info About KOMEG's Products You Need to Know



2.1 Refrigeration system characteristics
1. Import compressor, reduce the operating noisy, better performance;
2.The unit module standardization. Set up the bend language manual, ensure that make unity. Cooling line adopts advanced bend language process, ensure refrigeration accurate, uniform;
3.The operation of refrigeration system adopt intelligent control, power consumption is small, all refrigeration parts adopt international famous brand, quality assured for long-term stable operation.
4.Modular making, ease to install, repair and maintenance; Air-cooled condenser of refrigeration unit  add the filter net, ensue the  normal operation;
5.Intelligent cooling capacity adjustment, good control effect. Wide range of load.



2.2 Structure Features

Wall material:Top-grade Carbon Steel Plate,Surface electrostatic color Spray processing

Inner wall material:Stainless Steel Plate SUS304

Body insulation material:Rigid polyurethane Foam + glass fiber

Door insulation material:Rigid Polyurethane Foam + Glass fiber



2.3 Material:

Interior material: Stainless Steel Plate SUS304#

Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#

Insulation material: Rigid polyurethane Foam and Glass Fiber Wool



3. Why KOMEG Will Be Your Best Choice?



 The controller system features:

 Centralized controller, recorder, computer triad controller;

 1. Provide USB port, R485 interface, USB download;

 2. Large capacity may save 13450 segments, with super long running of 530 hours each segments.

 3. Program loop can be 32000 times, tiny loop 32000 times;

 4. Large built-in storage, can store 90 - day calendar data, historical curve (when the sample is 1 min)

 5. Support English, Chinese and so on.



4. Specifications



Model
Thermal shock test chamber TST-A Series
70A 130A 226A 360A 500A
Test weight(KG) 5 5 5 5 10
Interior size W(mm) 410 520 610 710 810
H(mm) 560 670 770 830 710
D(mm) 410 520 610 770 860
Basket size W(mm) 300 410 510 610 710
H(mm) 300 410 510 730 610
D(mm) 300 410 510 510 730
Low Temp. chamber  -55ºC~-10ºC
Pre-cooling time  +20ºC~-55ºC, Within 60 min
Test. chamber  -40ºC~+150ºC
High Temp. chamber  +60ºC~+200ºC
Pre-heating time  +60ºC~+200ºC ,Within 25 min
Recovery time High-Temp Exposure 30 min
Low-Temp Exposure 30 min
Recovery time within 3 min
Standard accessory Cable port(portΦ50mm)*1,   shelves*2
Interior material Stainless steel plate(SUS 304)
Exterior material Baked painting steel or stainless steel(SUS304)
Insulation material Rigid polyurethane Foam+glass fiber wool
Refrigeration system Water Cooled

Semi-hermetic compressor, cascade  refrigeration system,

CFC free refrigerant(HFC-507 and HFC-23)

Controller Panel:7-inch LCD Touch panel, Chinese or English display selectable
Operation model:Program or fix point running
Memory capacity:120programs,1200steps, all repeat 999cycles,part repeat 99 cycles.
Accuracy:Temp.:0.1% of F.S±1 digit                                                    Humidity:0.1% of F.S±1 digit
Input:Temp.:pt-100                Humidity:pt-100 or ~5V DCV
Ambient Temp. +5ºC~+35ºC
Power AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
Note:1. We reserve the right to change specifications without prior notice  2. Customized sizes and configurations available
