Product Name: | Repid Temp Change Chamber | Application: | Reliability Testing, Research & Development Testing, Failure Analysis |
---|---|---|---|
Working Chamber Volume: | 5000L | Power Source: | AC380V |
Cooling Mode: | Water Cooled | Compressor: | Semi-Hermetic Compressor |
Heater: | Iron-chrome Wire Heater | Controllor: | Touch Screen Programmable Controllor |
Testing: | Reliability Test | ||
High Light: | environmental testing chambers,Thermal Shock Test Chamber |

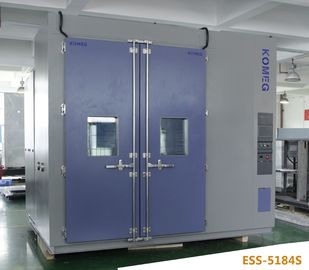

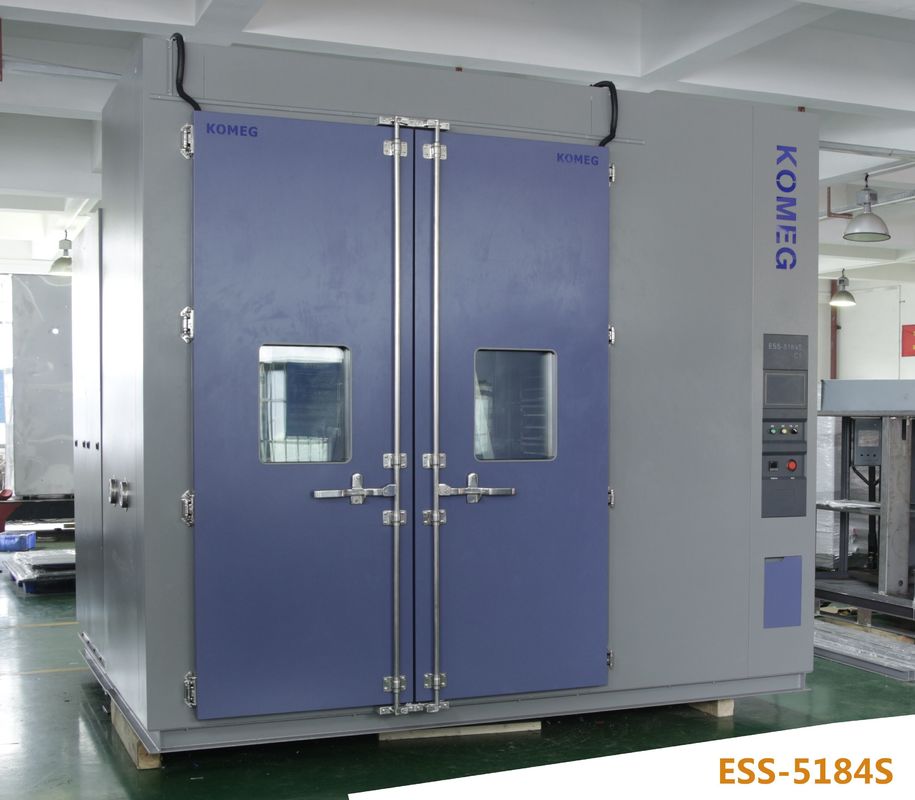

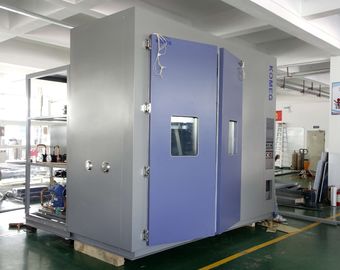

5000L temperature and climate test cabinets For Rapid Temperature Changing Tests
1. Application:
Fast Temperature Change Test Chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
2. Standards Implemented and Met
1. GB11158 temperature Chambers technical conditions
2. GB10589-89 Chambers cryogenic technology
3. GB10592-89 Chambers technology high and low temperature conditions
4. GB/T2423.1-2001 hypothermia Chambers Test Method
5. GB/T2423.2-2001 temperature changes Test Method
6. GB/T2423.3-93 hot and humid Chambers Test Method
7. GB/T2423.4-93 alternating temperature testing machine
8. GB/T2423.22-2001 temperature testing method
9. IEC60068-2-1.1990 low temperature Chambers Test Method
10. IEC60068-2-2.1974 high temperature Chambers Test Method
11. GJB150.3 High Temperature Test
12. GJB150.4 Low Temperature Test
13. GJB150.9 Damp Heat Test
3. Specifications
Model | ESS-SL |
5000SL15 | |
Working Chamber Volume(L) | 5000L |
Temp Rate of Change( ºC /Min) | 15 ºC /Min |
Temperature Range | -70 ºC~+100 ºC( Rapid Temp Change -55 ºC~+85 ºC Full Linear Control) |
Humidity Constancy | ±0.5 ºC |
Temp Constancy | ±3.0 ºC |
Exterior Material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel |
Interior Material | Stainless Steel Plate(SUS 304) |
Insulation Material | Rigid Polyurethane Foam |
Safety Devices | over pressure,over heat and over current protection for compressor, over temp. protection, |
Compressor | Semi-Hermetic Compressor |
Cooling Mode | Water Cooled |
Control system | Balanced Temperature & Humidity Control System(BTC type) |
Heater | Iron-chrome wire heater |
Blower | Centrifugal Blower |
Observation Window | Glass incorporating heat generator |
Temp Sensor | Pt-100 |
Controller | Touch screen programmable controller |
Ambient Temp. | +5ºC~+35ºC |
Power | AC 380V/50Hz 3phase 5 wires+ Ground wire |
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips, and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-glassed watching window for the observation of the test production during the testing process. The window is equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries.The environment-protecting coolant is used for the whole series(R232,R404).
6. Imported LCD display screen is used for the control unit, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.
8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.
5. Material:
Interior material: Stainless Steel Plate SUS304#
Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#
Insulation material: Rigid polyurethane Foam and Glass Fiber Wool
