Product Details:
Payment & Shipping Terms:
|
| Temp. Range: | -70~150 | Humidity Constancy: | ±0.5% |
|---|---|---|---|
| Pressur Range: | Common Pressure ~1KPA | Interiol Material: | Stainless Steel Plate |
| Cooling Mode: | Water Cooled | Interiol Size: | 100*100*100 |
| Recovery Time: | Within 5 Min | ||
| High Light: | high altitude chamber,portable altitude chamber |
||

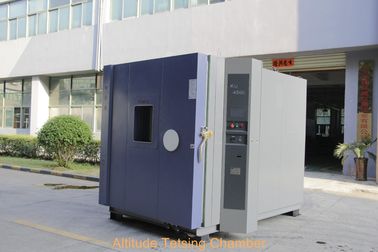

IEC62133 high altitude simulation battery low pressure test equipment
This high altitude simulation battery test equipment is simulating air transport under low-pressure conditions.The design is based on the criterias of UN,EN, IEC and the others. The tester could be reached to the infraba in short time,automatic control test cycle,minitor the whole press of inside barometric pressure.
Procedure: the cells and the batteries shall be stored at a pressure equal to or less than 11.6kPa and hold the value for 6 hours at ambient temperature(20±5°C),so the laboratory temperature should be maintained at (20±5°C).
Optional parts:
Communication interface RS232 or RS485, logger, micro printer, remote temperature and humidity control system (including printers, communications software, computer), mobile casters.
Structure:
Overall structure, new test chamber designed very easy to operation and maintenance:
Water and electricity system separation design;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.
Material:
machines for sheet metal processing;
Tecumseh, Bock Compressor;
High quality electronic components (e.g. DANFOSS, ALCO, RANCO, SPORLAN, SAGINOMIYA, Schneider solenoid valve)
Reference Standards FOR high pressure test chamber :
GB/T 2423.25-2008 GB/T 2423.26-2008 GB/T 150.2A-2009 GB/T10590-2006
| Specifications | KOMEG | ||||
| Model | KU-504L | KU-1000L | KU-504S | KU-1000S | |
| Inner Size (D*W*H)mm | 800*700*900 | 1000*1000*1000 | 800*700*900 | 1000*1000*1000 | |
| Capacity(KW) | 11 | 15 | 16 | 18 | |
| Chamber Volume(L) | 504 | 1000 | 504 | 1000 | |
| Performance | Temp range | -40℃~+150℃ | -70℃~+150℃ | ||
| Temp constancy | ±0.5% | ||||
| Temp deviation | ≥100℃, ±3.0℃(at constant pressure with empty load) | ||||
| <100℃, ±2.0℃(at constant pressure with empty load) | |||||
| Cooling rate | 0.7℃~1.0℃/min(Overall average) | ||||
| Pressure range | Constant pressure ~1kPa | ||||
| Pressure constancy | When ≥40kPa, ±2kPa, 4kPa~40pKa ±0.5kPa, when≤4kPa, ±0.1kPa | ||||
| Depressurization rate | Constant pressure~1kPa≤30mins(Normal temp) | ||||
| Pressure recovery rate | 10kPa/Min(adjustable) | ||||
| Material | Exterior material | Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate | |||
| Interior material | Stainless steel(SUS304) | ||||
| Pressurized parts | High quality steel plate(Rust proof & Plastic spray treated) | ||||
| Insulation material | High quality glass wool | ||||
| Cooling System | Compressor | Semi-Hermetic Compressor | |||
| Cooling Mode | Water cooled | ||||
| Temp regulating method | Balanced Temperature & Humidity Control System (BTHC) | ||||
| Pump | Rotary vane type vacuum pump | ||||
| Heater | Iron-chrome wire heater | ||||
| Sight window | Circular viewing glass incorporating heat generator | ||||
| Temp Sensor | Pt-100 | ||||
| Controller | Touch Screen Controller | ||||
| Safety Devices | Over pressure, over heat and over current protection for compressor, over temp. protection, over load protection for blower, Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarm | ||||
| Standard Accessory | Sight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2 | ||||
| Power | AC380V/50Hz, 3Phase 5 wires+ Ground Wire. | ||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|||||
Altitude chamber working principle
Temperature and pressure range chart
With our high altitude test chamber, you can:
* If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
