Product Details:
Payment & Shipping Terms:
|
Product Name: | High And Low Temperature Test Chamber | Material: | SUS304 Stainless Steel |
---|---|---|---|
Temperature Range: | -40 °C To 150 °C | Exterior Material: | Baked Painting Steel |
Power Supply: | AC 380V±10% 50Hz ,3 Phase 4 Wires +Ground Wires | Controllor: | Touch Screen Controller |
Warranty: | 1year | Usage: | Industrial |
High Light: | high temperature test chamber,low temperature test chamber |

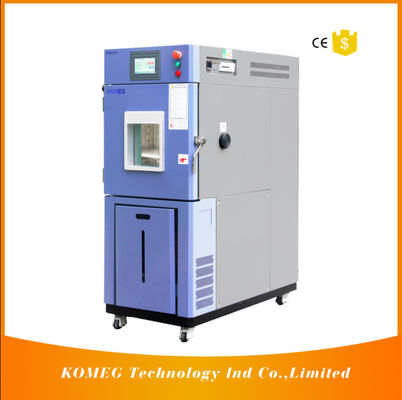

Weather Resistance High And Low Temperature Test Chamber / Environmental Test Chamber
Environment temperture and humidity chamber applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research institution, inspection and quarantine bureau, university etc.
This chamber is widely applied for electronic and electric products, automotive parts, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research institution, university components and materials by high low constant temperature, temperature change, shock, damp heat vibration etc combined environment simulation reliability test.
Model
|
KMT-S
|
|||||
150S
|
225S
|
408S
|
800S
|
1000S
|
||
Temp. range
|
-70°C ~150°C
|
|||||
Interior sizel
|
W(mm)
|
600
|
700
|
700
|
1000
|
1000
|
H(mm)
|
600
|
700
|
750
|
1000
|
1000
|
|
D(mm)
|
460
|
480
|
800
|
800
|
1000
|
|
Exterior size
|
W(mm)
|
880
|
980
|
980
|
1280
|
1280
|
H(mm)
|
1730
|
1890
|
1940
|
2160
|
2160
|
|
D(mm)
|
1400
|
1460
|
1740
|
1750
|
1950
|
|
Power(KW)
|
5.8
|
6
|
7.5
|
12.8
|
12.8
|
|
Weight(KG)
|
280
|
330
|
450
|
550
|
650
|
Heat up time
|
-70°C ~+100°C ,within 60 min
|
|||||
Pull down time
|
+20°C ~-70°C , within 80 min
|
|||||
Temp. constancy
|
±0.5ºC
|
|||||
Temp. uniformity
|
±2.0ºC
|
|||||
Safety device (standard)
|
NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection
|
|||||
Interior material
|
Stainless Steel Plate(SUS 304)
|
|||||
Exterior material
|
Baked Painting Steel Or Stainless steel(SUS304)
|
|||||
Insulation material
|
Rigid polyurethane Foam and Glass Fiber Wool
|
|||||
Ambient Temp.
|
+5°C ~+35°C
|
|||||
Wiring method
|
AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
|
|||||
|
LCD Touch Screen, Chinese or English display selectable
|
|||||
Operation model :Program or fix point running
|
||||||
Memory capacity :120programs,1200steps,
|
||||||
All repeat 999 cycles, part repeat 99 cycles
|
(1) accurate temperature heating and cooling control
features temperature heating 3℃/min and cooling performance at 1℃/min with no load for our standard model, and can handle temperature cycle tests at 3℃/min cooling down and heating up rate respectively with load for customized model.
(2) highly temperature uniformity distribution
komeg offers highest 0.5 ℃ temperature uniformity distribution, this allows minimizes variations in test results over multiple specimens.
(3) wide selection control range for temperature and humidity
features a wider cont rol range of temperature and humidity, including stable control at 95℃/98%rh.
(4) network solution available
standard communication support is available with rs-485 or rs-232c interface.
An ethernet (lan) port is also available as an option, for simple connection of a computer, tablet computer, or other terminal. Monitoring of chamber’s running conditions, modification of test conditions, starting or stopping operation, and other interaction with the chamber can be performed via a web browser.
Packing details:
We use pp film wrapping the test chamber to protect the test chamber from moisture or being scratched first, then use strong plywood case for easyload and transport, and to keep the chambers from potential crash or impact.
Welcome to contact our company to negotiate, the company will dedicate to provide you high quality service. If you are interested in any products, please contact us without hesitate, we will try our best to give you a perfect quotation.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and english operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
KOMEG specialized in environmental simulate test machine for 27 years. We also produce these products.
