Product Details:
Payment & Shipping Terms:
|
| Products Name: | Thermal Shock Test Chamber | Temperature Range: | -65 °C~ 150°C |
|---|---|---|---|
| Exposure Time: | 30 Mins | Recovery Time: | 5 Mins |
| Cool Model: | Water Cooled | Material: | Stainless Steel |
| High Light: | thermal shock chamber,environmental testing chambers |
||

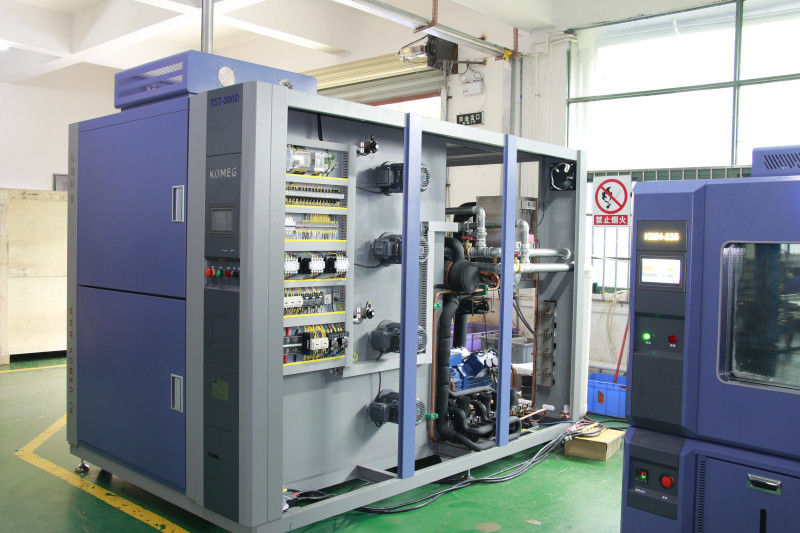

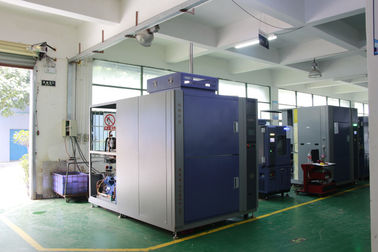

Highly Accelerated 2 Zone Thermal Shock Test Chamber For Reliability Testing
2-zone Thermal Shock Test Chamber has two zones namely the hot zone and the cold zone. The specimen is transferred between the hot & cold zones through a test basket. It is primarily used to study the impact of the rapid change of temperature on the specimen.
Standards Met and Implemented:
GB/T2423.1.2
GB10592-89
GJB150
Specifications:
| 2 Zone Thermal Shock Test Chamber IN THE BLANKET: | ||||||
| Specifications | ||||||
| Model | TST-A Series | |||||
| 72A | 130A | 226A | 360A | 500A | ||
| Test weight(KG) | 410 | 520 | 610 | 710 | 810 | |
| Interior size | W(mm) | 560 | 670 | 770 | 830 | 710 |
| H(mm) | 410 | 520 | 610 | 770 | 860 | |
| D(mm) | 300 | 410 | 510 | 610 | 710 | |
| Basket size | W(mm) | 300 | 410 | 510 | 730 | 610 |
| H(mm) | 300 | 410 | 510 | 510 | 730 | |
| D(mm) | 5 | 5 | 5 | 5 | 10 | |
| Low Temp. chamber | -55 °C~ -10°C | |||||
| Pre-cooling time | +20 °C~ -55°C ,Within 60 min | |||||
| Test. chamber | -40 °C~ +150°C | |||||
| High Temp. chamber | +60 °C~ +200 °C | |||||
| Pre-heating time | +60°C~ +200°C ,Within 25 min | |||||
| Recovery time | High-Temp Exposure 30 min | |||||
| Low-Temp Exposure 30 min | ||||||
| Recovery time within 5 min | ||||||
| Safety device | within 10 seconds | |||||
| Standard accessory | No fuse breaker, over pressure over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection |
|||||
| Interior material | Cable port(portΦ50mm)*1, shelves*2 | |||||
| Exterior material | Stainless steel plate ( SUS 304 ) | |||||
| Insulation material | Baked painting steel or stainless steel(SUS304) | |||||
| Refrigeration system | Rigid polyurethane Foam glass fiber wool | |||||
| Water Cooled | ||||||
| Controller | Panel:7-inch LCD Touch panel , Chinese or English display selectable | |||||
| Operation model:Program or fix point running | ||||||
| Memory capacity:120programs,1200steps , all repeat 999cycles , part repeat 99 cycles. |
||||||
| Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit | ||||||
| Input:Temp.:pt-100 Humidity:pt-100 or ~ 5V DCV | ||||||
| Ambient Temp. | +5 °C~ +35 °C (41 ~ 95°F) | |||||
| Power | AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Note:1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
||||||
| ALL THE MODEL OF THIS KIND PRODUCTS IN THE BLANKET: | ||||||
| Specifications | ||||||
| Model | TST B Series | |||||
| 72B | 130B | 226B | 360B | 500B | ||
| Test weight(KG) | 410 | 520 | 610 | 710 | 810 | |
| Interior size | W(mm) | 560 | 670 | 770 | 830 | 710 |
| H(mm) | 410 | 520 | 610 | 770 | 860 | |
| D(mm) | 300 | 410 | 510 | 610 | 710 | |
| Basket size | W(mm) | 300 | 410 | 510 | 730 | 610 |
| H(mm) | 300 | 410 | 510 | 510 | 730 | |
| D(mm) | 5 | 5 | 5 | 5 | 5 | |
| Low Temp. chamber | -70 °C~ -10°C | |||||
| Pre-cooling time | +20°C~ -70 °C ,Within 60 min | |||||
| Test. chamber | -55°C~ +150°C | |||||
| High Temp. chamber | +60 °C~ +200 °C | |||||
| Pre-heating time | +60°C~ +200°C ,Within 25 min | |||||
| Recovery time | High-Temp Exposure 30 min | |||||
| Low-Temp Exposure 30 min | ||||||
| Recovery time within 5 min | ||||||
| Safety device | within 10 seconds | |||||
| Standard accessory | No fuse breaker, over pressure over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection | |||||
| Interior material | Cable port(portΦ50mm)*1, shelves*2 | |||||
| Exterior material | Stainless steel plate ( SUS 304 ) | |||||
| Insulation material | Baked painting steel or stainless steel(SUS304) | |||||
| Refrigeration system | Rigid polyurethane Foam glass fiber wool | |||||
| Water Cooled | ||||||
| Controller | Panel:7-inch LCD Touch panel , Chinese or English display selectable | |||||
| Operation model:Program or fix point running | ||||||
| Memory capacity:120programs,1200steps , all repeat 999cycles , part repeat 99 cycles. | ||||||
| Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit | ||||||
| Input:Temp.:pt-100 Humidity:pt-100 or ~ 5V DCV | ||||||
| Ambient Temp. | +5 °C~ +35 °C (41 ~ 95°F) | |||||
| Power | AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Note:1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
||||||
| ALL THE MODEL OF THIS KIND PRODUCTS IN THE BLANKET: | ||||||
| Specifications | ||||||
| Model | TST D Series | |||||
| 72D | 130D | 226D | 360D | 500D | ||
| Test weight(KG) | 410 | 520 | 610 | 710 | 810 | |
| Interior size | W(mm) | 560 | 670 | 770 | 830 | 710 |
| H(mm) | 410 | 520 | 610 | 770 | 860 | |
| D(mm) | 300 | 410 | 510 | 610 | 710 | |
| Basket size | W(mm) | 300 | 410 | 510 | 730 | 610 |
| H(mm) | 300 | 410 | 510 | 510 | 730 | |
| D(mm) | 5 | 5 | 5 | 5 | 10 | |
| Low Temp. chamber | -80 °C~ -10 °C | |||||
| Pre-cooling time | +20 °C~ -80°C ,Within 60 mins | |||||
| Test. chamber | -60°C~ +150 °C | |||||
| High Temp. chamber | +60 °C~ +200 °C | |||||
| Pre-heating time | +60°C~ +200°C ,Within 25 min | |||||
| Recovery time | High-Temp Exposure 30 min | |||||
| Low-Temp Exposure 30 min | ||||||
| Recovery time within 5 min | ||||||
| Safety device | within 10 seconds | |||||
| Standard accessory | No fuse breaker, over pressure over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection | |||||
| Interior material | Cable port(portΦ50mm)*1, shelves*2 | |||||
| Exterior material | Stainless steel plate ( SUS 304 ) | |||||
| Insulation material | Baked painting steel or stainless steel(SUS304) | |||||
| Refrigeration system | Rigid polyurethane Foam glass fiber wool | |||||
| Water Cooled | ||||||
| Controller | Panel:7-inch LCD Touch panel , Chinese or English display selectable | |||||
| Operation model:Program or fix point running | ||||||
| Memory capacity:120programs,1200steps , all repeat 999cycles , part repeat 99 cycles. | ||||||
| Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit | ||||||
| Input:Temp.:pt-100 Humidity:pt-100 or ~ 5V DCV | ||||||
| Ambient Temp. | +5 °C~ +35 °C (41 ~ 95°F) | |||||
| Power | AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Note:1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
||||||
Main features of Thermal test chamber:
1. Programmable Controller with RS232C, 7 LCD touch panel control
2. Stainess steel Interior, galvanized steel sheet exterior
3. RS-232, RS-485 serial communications
4. Door Safety Interlocks
5. Emergency Stop Button
6. Traveling Cable Port
Packaging:
2-zone Thermal Shock Test Chamber are covered with air bubble film before put them into the strong plywoodcase, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, crash-proof, etc.
