Vertical Lift Thermal Shock Test Chamber With Separate Hot And Cold Temperature Zones

Vertical Lift Thermal Shock Test Chamber With Separate Hot And Cold Temperature Zones
Vertical Lift Thermal Shock Test Chamber With Separate Hot And Cold Temperature Zones
video play

Large Image :  Vertical Lift Thermal Shock Test Chamber With Separate Hot And Cold Temperature Zones

Product Details:
Place of Origin: guangdong
Brand Name: KOMEG
Certification: CE
Model Number: TST-Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece Thermal Shock Test Chamber
Price: USD2000-USD20000/ piece
Packaging Details: Strong Plywood Case, Meet International Standard
Delivery Time: 25 to 35 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pieces a year
Detailed Product Description
Products Name: 2 ZONE Thermal Shock Test Chamber Temperature Range: -55 °C~ 150°C
Exposure Time: 30 Mins Recovery Time: 5 Mins
Transfer Time: 5s Exterior Material: Stainless Steel Plate ( SUS 304 )
High Light:

thermal shock chamber

,

environmental testing chambers



Vertical Lift Thermal Shock Test Chamber With Separate Hot And Cold Temperature Zones



KOMEG Compact Thermal Shock Chambers consist of two separately controlled hot and cold zones with product being transferred between these zones for rapid product temperature changes. These thermal shock chambers are available from 70 or 500 liters of interior workspace volume, ideal for testing to find product flaws in small components/assemblies before they reach your customer..

As we know that thermal shock occurs when a thermal gradient causes different parts of an object to expand by different amounts. This differential expansion can be understood in terms of stress or of strain, equivalently. At some point, this stress can exceed the strength of the material, causing a crack to form. If nothing stops this crack from propagating through the material, it will cause the object's structure to fail. Normally we use thermal shock test equipment to test how much amount can a product withstand thermal shock.



Specifications:


ALL THE MODEL OF THIS KIND PRODUCTS IN THE BLANKET:
Specifications
Model TST B Series
72B 130B 226B 360B 500B
Test weight(KG) 410 520 610 710 810
Interior size W(mm) 560 670 770 830 710
H(mm) 410 520 610 770 860
D(mm) 300 410 510 610 710
Basket size W(mm) 300 410 510 730 610
H(mm) 300 410 510 510 730
D(mm) 5 5 5 5 5
Low Temp. chamber -70 °C~ -10°C
Pre-cooling time +20°C~ -70 °C ,Within 60 min
Test. chamber -55°C~ +150°C
High Temp. chamber +60 °C~ +200 °C
Pre-heating time +60°C~ +200°C ,Within 25 min
Recovery time High-Temp Exposure 30 min
Low-Temp Exposure 30 min
Recovery time within 5 min
Safety device within 10 seconds
Standard accessory No fuse breaker, over pressure over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection
Interior material Cable port(portΦ50mm)*1, shelves*2
Exterior material Stainless steel plate ( SUS 304 )
Insulation material Baked painting steel or stainless steel(SUS304)
Refrigeration system Rigid polyurethane Foam glass fiber wool
Water Cooled
Controller Panel:7-inch LCD Touch panel , Chinese or English display selectable
Operation model:Program or fix point running
Memory capacity:120programs,1200steps , all repeat 999cycles , part repeat 99 cycles.
Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit
Input:Temp.:pt-100 Humidity:pt-100 or ~ 5V DCV
Ambient Temp. +5 °C~ +35 °C (41 ~ 95°F)
Power AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires
Note:1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available





KOMEG offer a complete range of Thermal Shock test chambers that meet the requirements of all the standards test specifications including MIL standards. The chambers are supplied in various sizes as standard and can be supplied with either cascade refrigeration systems.

The thermal shock chambers are supplied with a fully programmable controller for complete cycle programming. The chamber has the two compartments fitted vertically with the hot chamber at the top and cold chamber underneath. The basket is moved between the compartments by a basket operated between hot and cold chamber, it is fitted with seals to ensure minimal transfer of temperature between the compartments.



Performance Specification: as per IEC - 60068, etc.
Temperature Range:
Hot Zone Temperature: +60°C to +2000°C
Cold Zone Temperature:
-40°C - +150°C to ‘A’
-55°C - +150°C to ‘B’
-65°C - +150°C to ‘C’

Recovery Time: Within 5 mins
Transfer Mechanism: Automatic


Refrigeration System:
A Two Stage cascade cooling refrigeration system working on Environmentally friendly refrigerants is fitted to allow for chamber cooling . The refrigeration system is fitted with an air cooled condenser designed for continuous and trouble free operation, with water cooled condenser as an option.
The refrigeration system consists of refrigeration compressors, expansion valve, soleniod valves, oil seperator with automatic oil return, hot gas defrost system and safety features like HP/LP cut off switches, overload protection, back up fuse protection, MCBs etc.

Control Instrumentation:
The chamber will be fitted with a microprocessor Self tune PID type dual loop Temperature Controller/Programmer with a PT-100 sensor for measurement and control and indication of temperature. This can used to program different test cycles as required by the test standards, and can be used to program basket dwell times (up to 999hrs) and number of transfer cycles. The programmer/controller produced from Korea.


Safety Features Fitted:
Back up Fuses protection for all mains and individual circuits.
Over temperature safety cut off thermostat fitted with audiovisual alarm.
Overload protector for compressor and motor.
HP/LP cut off switch for compressor.
MCBs for heaters and humidity generator
Single Phase preventer is fitted to protect the test chamber from damage caused by incorrect phase rotation or loss of phases.

Power Supply Requirements:
AC 380±10%50Hz ,3 phase 4 wires +Ground Wires


Standards Met and Implemented:
GB/T2423.1.2
GB10592-89
GJB150

Main features of Thermal test chamber:


Direct-drive system for reliable transfer between zones
Compact design with integrated mechanical refrigeration
Two specimen baskets
Includes caster and leveling pads for easy movement
Designed for performance with maximum load



Packaging:
2-zone Thermal Shock Test Chamber are covered with air bubble film before put them into the strong plywoodcase, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, crash-proof, etc.


Company introduction:

Since 1990, manufacturers of custom environmental chambers and standard environmental chambers, Specializing in environmental simulation equipment, ess, walk-in, environmental stress screening, altitude chambers, temperature chambers, temperature and humidity chambers, environmental test chamber manufacturers, humidity chambers, humidity simulation, temperature cycling, thermal test chambers, solar panel test chambers, thermal shock, climatic/climate chambers, vibration test chambers, drive-in chambers, laboratory test chambers, environment test rooms.

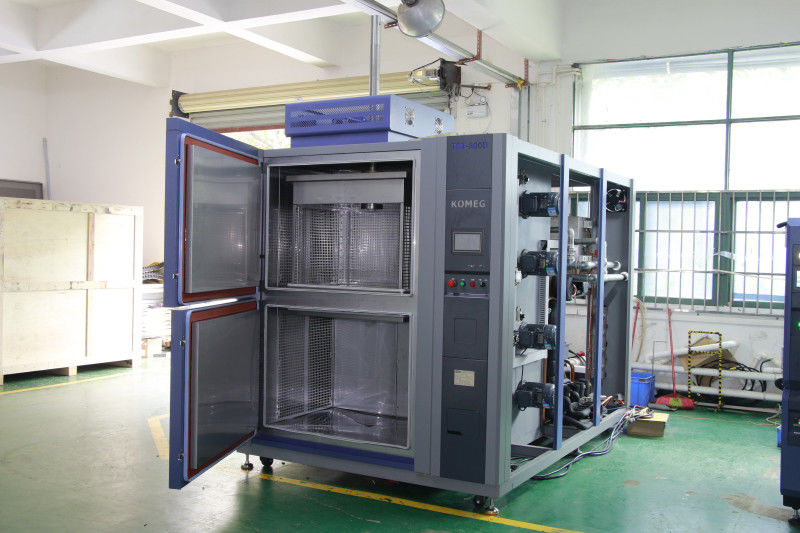

Vertical Lift Thermal Shock Test Chamber With Separate Hot And Cold Temperature Zones 0

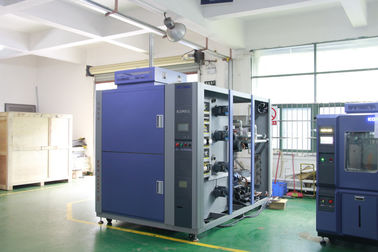

Vertical Lift Thermal Shock Test Chamber With Separate Hot And Cold Temperature Zones 1


Thermal Shock Chambers Brochure-KOMEG.pdf
