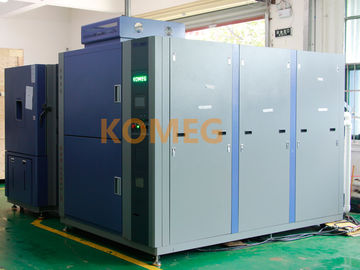

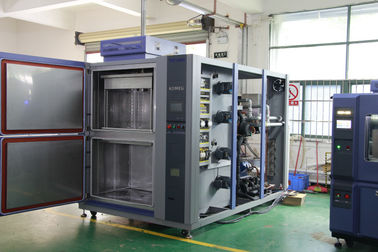

AC 380±10 % 50Hz Stainless steel Thermal Shock Test Chamber for LCD lighting industry

AC 380±10 % 50Hz Stainless steel Thermal Shock Test Chamber for LCD lighting industry
AC 380±10 % 50Hz Stainless steel Thermal Shock Test Chamber for LCD lighting industry
video play

Large Image :  AC 380±10 % 50Hz Stainless steel Thermal Shock Test Chamber for LCD lighting industry

Product Details:
Place of Origin: guangdong
Brand Name: KOMEG
Certification: CE
Model Number: TST-Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece Thermal Shock Test Chamber
Price: USD2000-USD20000/ piece
Packaging Details: Strong Plywood Case, Meet International Standard
Delivery Time: 25 to 35 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pieces a year
Detailed Product Description
Products Name: 2 ZONE Thermal Shock Test Chamber Temperature Range: -40 °C~ 150°C
High-Temp Exposure: 30 Mins Low-Temp Exposure: 30 Mins
Transfer Time: 5s Exterior Material: Stainless Steel Plate ( SUS 304 )
Cold Model: Water Cooled
High Light:

thermal shock chamber

,

environmental testing chambers



AC 380±10 % 50Hz Stainless steel Thermal Shock Test Chamber for LCD lighting industry

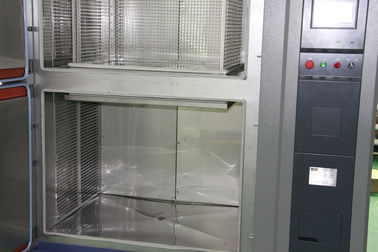

A Vertical Orientation Thermal Shock Chamber has two independently controlled hot and cold zones; one atop the other. A single product carrier moves between each zone, subjecting the product to dramatic changes in temperature. An advantage of the Vertical Orientation chamber is it uses less floor space, making it ideal for smaller labs.

Thermal shock testing subjects a product to alternating extremes of high and low temperatures in order to observe changes in the product’s characteristics and failure occurrences caused by different materials and thermal expansion.

A product transfer mechanism automatically transfers products under test from zone-to-zone programmed in the controller.



Specifications:





2 Zone Thermal Shock Test Chamber IN THE BLANKET:
Specifications
Model TST-A Series
72A 130A 226A 360A 500A
Test weight(KG) 410 520 610 710 810
Interior size W(mm) 560 670 770 830 710
H(mm) 410 520 610 770 860
D(mm) 300 410 510 610 710
Basket size W(mm) 300 410 510 730 610
H(mm) 300 410 510 510 730
D(mm) 5 5 5 5 10
Low Temp. chamber -55 °C~ -10°C
Pre-cooling time +20 °C~ -55°C ,Within 60 min
Test. chamber -40 °C~ +150°C
High Temp. chamber +60 °C~ +200 °C
Pre-heating time +60°C~ +200°C ,Within 25 min
Recovery time High-Temp Exposure 30 min
Low-Temp Exposure 30 min
Recovery time within 5 min
Safety device within 10 seconds
Standard accessory No fuse breaker, over pressure over heat and over current protection for compressor,
over temperature protection,
over load protection for blower, dry heat protection
Interior material Cable port(portΦ50mm)*1, shelves*2
Exterior material Stainless steel plate ( SUS 304 )
Insulation material Baked painting steel or stainless steel(SUS304)
Refrigeration system Rigid polyurethane Foam glass fiber wool
Water Cooled
Controller Panel:7-inch LCD Touch panel , Chinese or English display selectable
Operation model:Program or fix point running
Memory capacity:120programs,1200steps ,
all repeat 999cycles , part repeat 99 cycles.
Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit
Input:Temp.:pt-100 Humidity:pt-100 or ~ 5V DCV
Ambient Temp. +5 °C~ +35 °C (41 ~ 95°F)
Power AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires
Note:1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available



ALL THE MODEL OF THIS KIND PRODUCTS IN THE BLANKET:
Specifications
Model TST B Series
72B 130B 226B 360B 500B
Test weight(KG) 410 520 610 710 810
Interior size W(mm) 560 670 770 830 710
H(mm) 410 520 610 770 860
D(mm) 300 410 510 610 710
Basket size W(mm) 300 410 510 730 610
H(mm) 300 410 510 510 730
D(mm) 5 5 5 5 5
Low Temp. chamber -70 °C~ -10°C
Pre-cooling time +20°C~ -70 °C ,Within 60 min
Test. chamber -55°C~ +150°C
High Temp. chamber +60 °C~ +200 °C
Pre-heating time +60°C~ +200°C ,Within 25 min
Recovery time High-Temp Exposure 30 min
Low-Temp Exposure 30 min
Recovery time within 5 min
Safety device within 10 seconds
Standard accessory No fuse breaker, over pressure over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection
Interior material Cable port(portΦ50mm)*1, shelves*2
Exterior material Stainless steel plate ( SUS 304 )
Insulation material Baked painting steel or stainless steel(SUS304)
Refrigeration system Rigid polyurethane Foam glass fiber wool
Water Cooled
Controller Panel:7-inch LCD Touch panel , Chinese or English display selectable
Operation model:Program or fix point running
Memory capacity:120programs,1200steps , all repeat 999cycles , part repeat 99 cycles.
Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit
Input:Temp.:pt-100 Humidity:pt-100 or ~ 5V DCV
Ambient Temp. +5 °C~ +35 °C (41 ~ 95°F)
Power AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires
Note:1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available



ALL THE MODEL OF THIS KIND PRODUCTS IN THE BLANKET:
Specifications
Model TST D Series
72D 130D 226D 360D 500D
Test weight(KG) 410 520 610 710 810
Interior size W(mm) 560 670 770 830 710
H(mm) 410 520 610 770 860
D(mm) 300 410 510 610 710
Basket size W(mm) 300 410 510 730 610
H(mm) 300 410 510 510 730
D(mm) 5 5 5 5 10
Low Temp. chamber -80 °C~ -10 °C
Pre-cooling time +20 °C~ -80°C ,Within 60 mins
Test. chamber -60°C~ +150 °C
High Temp. chamber +60 °C~ +200 °C
Pre-heating time +60°C~ +200°C ,Within 25 min
Recovery time High-Temp Exposure 30 min
Low-Temp Exposure 30 min
Recovery time within 5 min
Safety device within 10 seconds
Standard accessory No fuse breaker, over pressure over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection
Interior material Cable port(portΦ50mm)*1, shelves*2
Exterior material Stainless steel plate ( SUS 304 )
Insulation material Baked painting steel or stainless steel(SUS304)
Refrigeration system Rigid polyurethane Foam glass fiber wool
Water Cooled
Controller Panel:7-inch LCD Touch panel , Chinese or English display selectable
Operation model:Program or fix point running
Memory capacity:120programs,1200steps , all repeat 999cycles , part repeat 99 cycles.
Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit
Input:Temp.:pt-100 Humidity:pt-100 or ~ 5V DCV
Ambient Temp. +5 °C~ +35 °C (41 ~ 95°F)
Power AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires
Note:1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available




Standards Met and Implemented:
GB/T2423.1.2
GB10592-89
GJB150

Main features of Thermal test chamber:





Vertical-lift thermal shock chamber with separate hot and cold temperature zones
Direct-drive system for reliable transfer between zones
Compact design with integrated mechanical refrigeration
Two specimen baskets
Includes caster and leveling pads for easy movement
Designed for performance with maximum load
Refrigeration:

Refrigeration maintains user-set low temperature in cold zone
Non-CFC cascade refrigeration system
Quiet operation with sound levels below 65 dB



Packaging:
2-zone Thermal Shock Test Chamber are covered with air bubble film before put them into the strong plywoodcase, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, crash-proof, etc.


Company introduction:

Since 1990, manufacturers of custom environmental chambers and standard environmental chambers, Specializing in environmental simulation equipment, ess, walk-in, environmental stress screening, altitude chambers, temperature chambers, temperature and humidity chambers, environmental test chamber manufacturers, humidity chambers, humidity simulation, temperature cycling, thermal test chambers, solar panel test chambers, thermal shock, climatic/climate chambers, vibration test chambers, drive-in chambers, laboratory test chambers, environment test rooms.
