Shock Range: | -65ºC~+150ºC | Maximal Temperature: | 200°C |
---|---|---|---|
Lowest Temperature: | -80°C | Transition Time: | ≤10S |
Recovery Time: | 5min | Lead Time: | 60 Days |
High Light: | thermal shock chamber,environmental testing chambers |

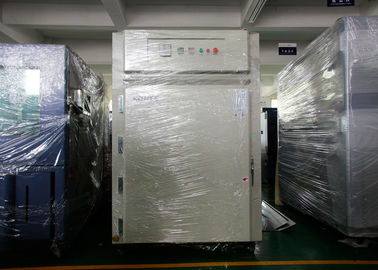

Electronics Performance Testing With Thermal Shock Chamber Within High and Low Temperature
Thermal Shock Chambers’ Characteristics
1. Insulation materials, we use high-strength PU foam and high-density glass fiber cotton, can ensure high accuracy and uniformity, to avoid unnecessary energy loss. At the same time, our design can better ensure the safety of the pedestrian during the operation.
Interior and shell material:
For small standard models, the general use of stainless steel inner wall # 304 1.0mm, stainless steel shell # 304 1.2mm;
For larger models or special needs customization, we use # 304 stainless steel inner wall 1.5 to 3.0mm, stainless steel # 304 housing over 1.5mm;
3. Inner box material for the SUS304 # installation of stainless steel imports, the outer box for the steel, paint the application of automotive coating technology. Box with triumph processing machine forming, beautiful appearance.
4. Large-size full-color LCD touch screen display, easy to operate, easy to edit the program. PID has automatic calculation function; self-diagnosis function, step by step display failure message and fault shooting solution.
5. RS-232 and RS-485 communication interface, supporting the recorder, scalability. We also support PC via wifi or line for remote control (recommended).
Below are differences between 3-zone and 2-zone thermal shock chamber
3 zone thermal shock room:
Three rooms in total: test space, high temperature. Room and low temperature. room
Advantages: The weight of the test sample is slightly limited, the test sample remains stationary, can reduce the impact of the sample on its movement can be used for load testing.
Compared with the 2 zone, the failure rate is relatively low, low cost.
Disadvantages: long conversion time
2 Zone Thermal Impact Chamber:
There are only two rooms: high temperature room and low temperature room
Advantages: short conversion time, the need for smaller space
Disadvantages: test sample movement. The size of the test sample is limited by the basket size
Specification
KTS-A Series
Model |
| ||||||||
72A | 100A | 150A | 200A | 252A | 300A | 480A | |||
Inside size(mm) | W | 450 | 500 | 600 | 670 | 700 | 800 | 800 | |
H | 400 | 450 | 500 | 600 | 600 | 600 | 800 | ||
D | 400 | 450 | 500 | 500 | 600 | 650 | 750 | ||
Low Temp Chamber | -65ºC~-10ºC, Pre cooling time: ≤ 60 min from +20ºCto-55ºC | ||||||||
Test Chamber | -60ºC~+150ºC | ||||||||
High Temp Chamber | +60ºC~+200ºC ,Within 20 min, Pre-heating time | ||||||||
Transition time | ≤15S | ||||||||
Recovery time | High-Temp Exposure 30 min to reach & stabilize required hot temp of test sample | ||||||||
Low-Temp Exposure 30 min to reach & stabilize required cold temp of test sample | |||||||||
≤ 5 min | |||||||||
Ambient Temp. | +5ºC~+35ºC | ||||||||
Power | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires |
KTS-B Series
Model |
| ||||||||
72B | 100B | 150B | 200B | 252B | 300B | 480B | |||
Inside size(mm) | W | 450 | 500 | 600 | 670 | 700 | 800 | 800 | |
H | 400 | 450 | 500 | 600 | 600 | 600 | 800 | ||
D | 400 | 450 | 500 | 500 | 600 | 650 | 750 | ||
Test weight(KG) | 5 | 10 | 12 | 15 | 18 | 20 | 20 | ||
Low Temp. chamber | -70ºC~-10ºC ,Pre cooling time: +20ºC~-70ºC ,≤ 60 min | ||||||||
Test. Chamber | -55ºC~+150ºC | ||||||||
High Temp. chamber temperature | +60ºC~+200ºC,Preheating time: ≤20 min | ||||||||
Transition time | ≤15S | ||||||||
Recovery time | High-Temp Exposure 30 min to reach & stabilize required hot temp of test sample | ||||||||
Low-Temp Exposure 30 min to reach & stabilize required cold temp of test sample | |||||||||
≤ 5 min | |||||||||
Ambient Temp. | +5ºC~+35ºC | ||||||||
Power | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires |
KTS-D Series
Model |
| ||||||||
72D | 100D | 150D | 200D | 252D | 300D | 480D | |||
Inside size(mm) | W | 450 | 500 | 600 | 670 | 700 | 800 | 800 | |
H | 400 | 450 | 500 | 600 | 600 | 600 | 800 | ||
D | 400 | 450 | 500 | 500 | 600 | 650 | 750 | ||
Test weight | 5 | 10 | 12 | 15 | 18 | 20 | 20 | ||
Low Temp Chamber | -80ºC~-10ºC, Pre cooling time: ≤ 60 min from +20ºCto-80ºC | ||||||||
Test Chamber | -65ºC~+150ºC | ||||||||
High Temp Chamber | +60ºC~+200ºC ,Within 20 min, Pre-heating time | ||||||||
Transition time | ≤15S | ||||||||
Recovery time | High-Temp Exposure 30 min to reach & stabilize required hot temp of test sample | ||||||||
Low-Temp Exposure 30 min to reach & stabilize required cold temp of test sample | |||||||||
≤ 5 min | |||||||||
Ambient Temp. | +5ºC~+35ºC | ||||||||
Power | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires |
