Temperature Humidity And Vibration Three Integrated Environmental Testing Labs 12 Months Warranty

Temperature Humidity And Vibration Three Integrated Environmental Testing Labs 12 Months Warranty
Temperature Humidity And Vibration Three Integrated Environmental Testing Labs 12 Months Warranty Temperature Humidity And Vibration Three Integrated Environmental Testing Labs 12 Months Warranty

Large Image :  Temperature Humidity And Vibration Three Integrated Environmental Testing Labs 12 Months Warranty

Product Details:
Place of Origin: CHINA
Brand Name: KOMEG
Certification: CE, ISO9001
Model Number: KMH-150R
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 9000-15000USD / SET
Packaging Details: PP film and Strong Plywood Case
Delivery Time: 30 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 SETS PER YEAR
Detailed Product Description
Application: Laboratory, Testing Center, Production Line Internal Volume: 150L
Interior Material: SUS 304 Stainless Steel Plate Exterior Material: Baked Painting Steel Or Stainless Steel
Warranty: 12 Months Free Parts Warranty Lead Time: 60 Working Days Upon The Deposit
Trade Terms: EXW, FOB, CIF, DDU, DDP H.S. Code: 9032100000
High Light:

humidity and temperature controlled chamber

,

temperature test chamber





Temperature Humidity And Vibration Three Integrated Environmental Testing Labs 12 Months Warranty



Product Application

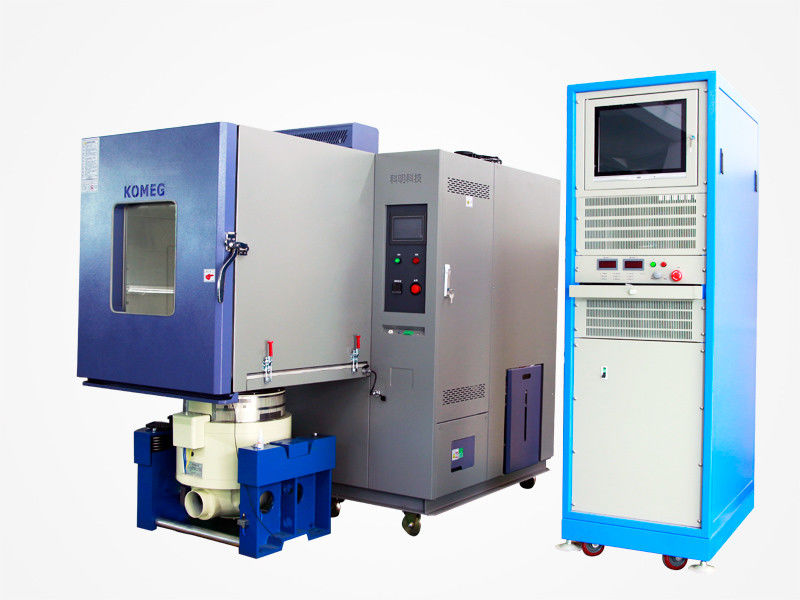

KMH-150L Temperature Humidity and Vibration three integrated Test Chamber



With precise temperature and humidity control system, this equipment provides variety of environmental simulate conditions that industrial research and biological test need. It is used in medicine, textile and food production experiment, as well as in product stability, raw material, packing and lifetime test.





Technical Specification for KMH-36L and KMH-64L

Model

KMH-36L(Benchtop) KMH-64 series
64 R 64 L 64 S
Temp. range -40°C ~150°C -20°C ~150°C -40°C ~150°C -70°C ~150°C
Interior size W(mm) 300 400 400 400
H(mm) 400 400 400 400
D(mm) 300 400 400 400
Exterior size W(mm) 460 600 600 600
H(mm) 780 1526 1526 1526
D(mm) 1002 1200 1200 1200
Power(KW)   5.8 5.8 5.8
Weight(KG)   300 300 300



Specification for Other Model



(1) KMH-R series



Model KMH-R series
150R 225R 408R 800R 1000R
Temp. range -20°C ~150°C
Interior size W(mm) 600 700 700 1000 1000
H(mm) 600 700 750 1000 1000
D(mm) 460 480 800 800 1000
Exterior size W(mm) 880 980 980 1280 1280
H(mm) 1730 1890 1940 2160 2160
D(mm) 1400 1460 1740 1750 1950
Power(KW) 5.8 6 7.5 12.8 12.8
Weight(KG) 240 280 400 500 580
Humidity uniformity ±3.0%R.H ±5.0%R.H
Heat up time -20°C ~+100°C ,within 35 min
Pull down time +20°C ~-20°C , within 45 min
Humidity Range 20~98%R.H
Temp. constancy ±0.5ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0ºC
Safety device (standard) NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Ambient Temp. +5°C ~+35°C
Wiring method AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
Controller LCD Touch Screen, Chinese or English display selectable
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles



(2)KMH-L series

Model KMH-L series
150 L 225 L 408 L 800 L 1000 L
Temp. range -40°C ~150°C
Interior size W(mm) 600 700 700 1000 1000
H(mm) 600 700 750 1000 1000
D(mm) 460 480 800 800 1000
Exterior size W(mm) 880 980 980 1280 1280
H(mm) 1730 1890 1940 2160 2160
D(mm) 1400 1460 1740 1750 1950
Power(KW) 5.8 6 7.5 12.8 12.8
Weight(KG) 250 300 420 530 600
Humidity uniformity ±3.0%R.H ±5.0%R.H
Heat up time -40°C ~+100°C ,within 45 min
Pull down time +20°C ~-40°C , within 60 min
Humidity Range 20~98%R.H
Temp. constancy ±0.5ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0ºC
Safety device (standard) NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Ambient Temp. +5°C ~+35°C
Wiring method AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
Controller LCD Touch Screen, Chinese or English display selectable
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles



(3)KMH-S series

Model KMH-S series
150S 225S 408S 800S 1000S
Temp. range -70°C ~150°C
Interior sizel W(mm) 600 700 700 1000 1000
H(mm) 600 700 750 1000 1000
D(mm) 460 480 800 800 1000
Exterior size W(mm) 880 980 980 1280 1280
H(mm) 1730 1890 1940 2160 2160
D(mm) 1400 1460 1740 1750 1950
Power(KW) 5.8 6 7.5 12.8 12.8
Weight(KG) 280 330 450 550 650
Humidity uniformity ±3.0%R.H ±5.0%R.H
Heat up time -70°C ~+100°C ,within 60 min
Pull down time +20°C ~-70°C , within 80 min
Humidity Range 20~98%R.H
Temp. constancy ±0.5ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0ºC
Safety device (standard) NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Ambient Temp. +5°C ~+35°C
Wiring method AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
Controller LCD Touch Screen, Chinese or English display selectable
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles



Features



1. Microprocessor controller for temperature and humidity ensures of precise and reliable control.


2. Simulate changing temperature and light in day/night


3. Independent temperature-limiting alarm system ensures experiments run safely.


4. Polished stainless-steel chamber, semicircular arcs at corners for easy cleaning, and the space between the shelves in the chamber is adjustable.


5. Even air circulation


6. Imported compressor


7. RS485 connector is option which can connect computer to record the parameters and the variations of temperature.(option)



Details Image











Testing Standard



● GB-2423. 1-89 (IEC68-2-1)Test A: Low Temperature Test



● GB-2423. 2-89 (IEC68-2-2)Test B: High Temperature Test



● GJB360. 8-87 (MIL-STD. 202F) High Temperature Life Test



● GBJl50. 3 (MIL-STD-810D) High Temperature Test



● GJBl50. 4 (MIL-STD-810D) Low Temperature Test



● GB2423. 3-93 (IEC68-2-3)Test Ca: Constant Heat Test



● GB2423. 4-93 (IEC68-2—30)Test Db: Damp Heat Alternative Test



● GJBl50. 9-93 (MIL-STD-810D) Damp Heat Test



Packing Details



We use standard inner box PP film and carton plywood for the packing.
