|Material:||Stainless Steel||Cooling Mode:||Water Cooled|
|Performance:||-70℃～+100℃||Temp Rate Of Change( ℃/Min):||10|
|Standard:||Internationally Accepted||Working Chamber Volume(L):||1000|
|Power:||AC 380V/50Hz 3phase 5 Wires+ Ground Wire||Warranty:||Free Parts Warranty For 12 Months|
|Controller:||LCD Touch Screen Controller||Customization:||Available|
Environmental Stress Screening Chambers,
Thermal Shock Test Chamber

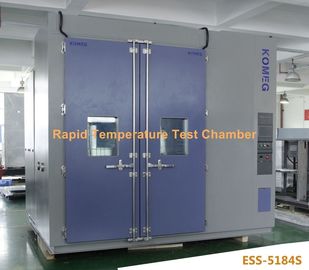

Stable Lead Time ESS Test Chamber Thermal Cycling Chamber for PV Module testing
Temperature adaptability test under the condition of rapid change, or gradient for electrical, electronic, instruments and other products or spare parts, particularly applies to environmental stress screening test (ESS)
Environmental stress screening (ESS) refers to the process of exposing a newly manufactured or repaired product or component (typically electronic) to stresses such as thermal cycling and vibration in order to force latent defects to manifest themselves by permanent or catastrophic failure during the screening process. The surviving population, upon completion of screening, can be assumed to have higher reliability than a similar unscreened population.
ESS can be performed as part of the manufacturing process or it can be used in new product qualification testing.
ESS Testing Purpose
Testing at the physical environmental conditions (shock, vibration, temperature, altitude, humidity, etc.) that simulate those encountered over the operational life of the component. Random vibration and temperature cycling have proven to be the most successful forms of ESS in terms of effective flaw precipitation.
The overall structure, new test chamber designed very easy to operation and maintenance:
Water and electricity system separation design;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.
1. We are manufacturers, offer a reasonable price.
2. LCD touch screen controller.
3. With USB and RS-232 interface.
4. Free parts warranty for 12 months.
|Specifications||Note: 1. We reserve the right to change specifications without prior notice
2.Customized sizes and configurations available
|Working Chamber Volume(L)||225||408||1000||225||408||1000|
|Temp Rate of Change( ℃/Min)||5||10||5||10||5||10||15||5||10||5||10||5||10|
|Rapid Temp Change -55℃～+85℃
Full Linear Control
Temp Change -
Full Linear Control
|Exterior Material||Cold-rolled steel sheet (Rustproof &
Plastic Spray treated )/ Stainless Steel
|Interior Material||Stainless Steel Plate(SUS 304)|
|Insulation Material||Rigid Polyurethane Foam|
|Safety Devices||overpressure,overheat and over
current protection for compressor,
over temp. protection,
|Cooling Mode||Water Cooled|
|Control system||Balanced Temperature & Humidity Control System(BTC type)|
|Heater||Iron-chrome wire heater|
|Observation Window||Glass incorporating heat generator|
|Controller||Touch screen programmable controller|
|Power||AC 380V/50Hz 3phase 5 wires+ ground wire|
|Note: 1. We reserve the right to change specifications without prior notice 2.
Customized sizes and configurations available
We use PP Film wrapping the test chamber to protect the test chamber from moisture or being scratched first, then use strong plywood case for easy load and transport, and to keep the chambers from potential crash or impact.
1. Automatic adding water function, and automatic filling water upon the water short storage while testing.
2. Automatic operation to test process finished, easy to use.
3.Temperature control: LED digital temperature controller can make accurate testing of temperature setting, control, and display.
4. LED digital timer, when the inner box's temperature reached the setting value, then starts to time to ensure the test complete.
5. Accurate pressure: The temperature chart always shows the inner box's pressure and relative humidity.
6. The water device is automatically discharged not saturated steam in order to achieve the best steam quality.
7.An integrated silica gel door gasket, air tightness is a very good, and long operation life.
8. The inner box is mirror-polished, graceful and non-pollution.
If you face any problems in the future during the testing process we promise we will give you a reply within 48 hours and the solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by the customer.
